Technical Bulletin UTAX
UTAX
CLP 3721
CLP 3726
T
A
TA
CLP 4721
CLP 4726
TB-28S
COM-F150/M Date: 04-11-2015
Priority:
…A  highest priority / …B  second priority / …C  other / …S Service Information
Notes when assembling the parts (Bottom plate driving gear)
T OPIC :
Prevention of the service call error C1010 due to the wrong attachment of the bottom plate driving gear.
N OTE :
If gears X and Y were attached to each position when assembling the bottom plate drive section (Note1), boss Z of the
cassette left guide (Note2), that is the fulcrum shaft for gear Y) might be damaged and the service call error C1010 (lift motor
error) might appear accordingly.
Be sure to attach gears X and Y to the correct positions when assembling.
Note1: While gears X and Y are the white gears with the similar shape, the numbers of their teeth differ by 1.
Accordingly, if the main unit is driven with gear X that was attached to boss Z where gear Y should be attached, the
speed should be reduced but actually will be quickened, so the excessive load is applied here and boss Z might be
broken from its root. In that case, the bottom plate cannot be raised, and the service call error C1010 will appear.
Note 2: Cassette left guide for the models:
CDC 1626, CDC 1726, CDC 5526, CDC 5626, CDC 5526L, CDC 5626L,
DCC 2626, DCC 2726, DCC 6526, DCC 6626, DCC 6526L, DCC 6626L,
260ci, 261ci, P-C2660MFP, P-C2665MFP, P-C2660iMFP, P-C2665iMFP,
P-2160DN
Item A  GUIDE CASSETTE LEFT (302KT02180)
Cassette left guide for the models: CLP 3726 / CLP 4726, P-2660DN
Item A  GUIDE CASSETTE LEFT (302KV02190)
Cassette left guide for the models: P-C3060MFP, P-C3065MFP, P-C3560iMFP, P-C3565iMFP
Item B  GUIDE CASSETTE LEFT (302NR02190)
Cassette left guide for the models: P-C3061DN, P-C3560DN
Item B  GUIDE CASSETTE LEFT (302NS02190)
Also, gear X for item A (Change-1) or the gear holder for item B (Change-2) are changed to prevent gears X and Y from being
attached to the wrong position.

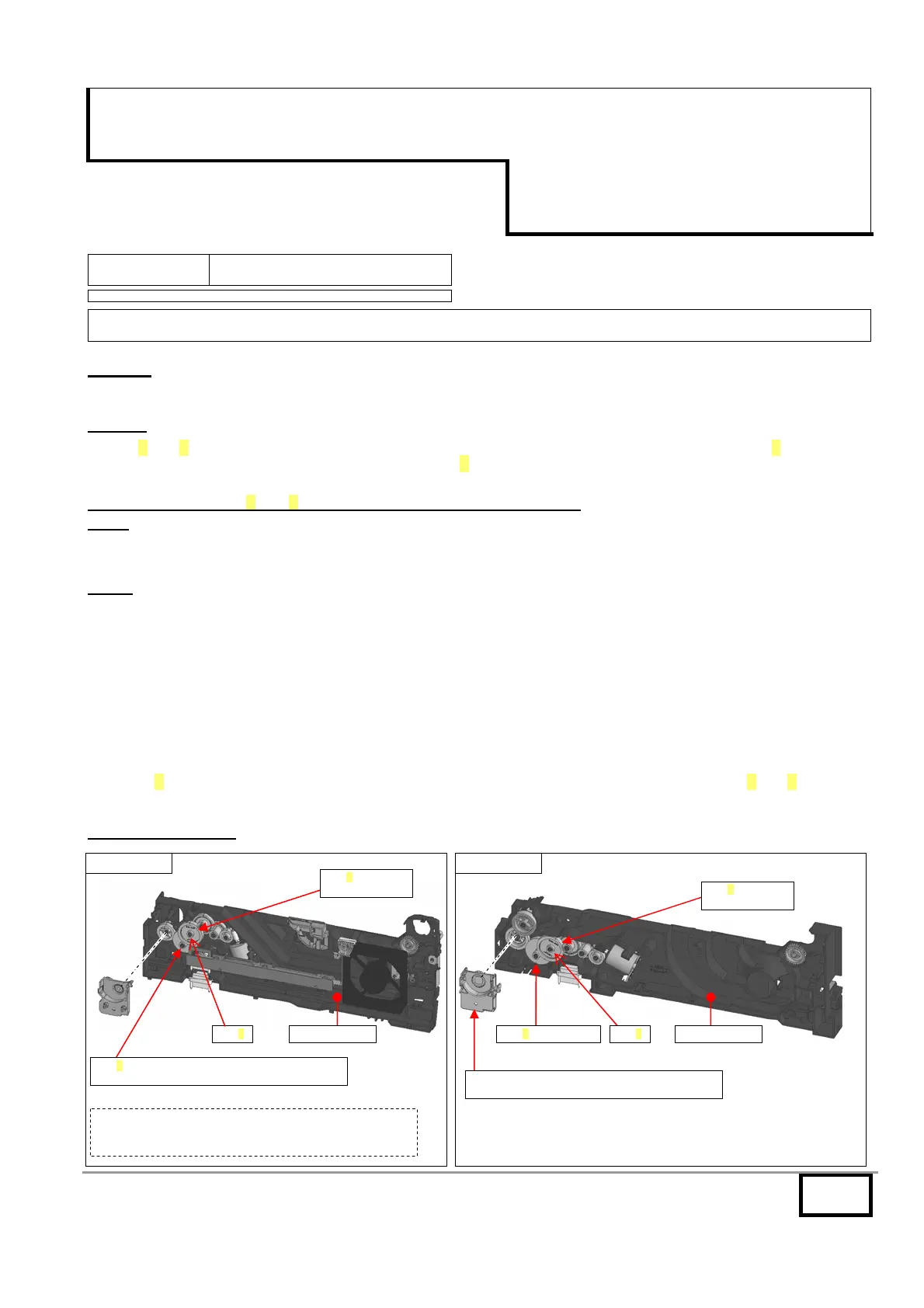

P ARTS L AYOUT :
Gear Y
(Not supplied parts)
Cassette left guide
Gear X (302KV02B70)
[Change-1] The exterior color is changed from white to black.
Boss Z
For item
A
*
* The above is the 250-sheet cassette.
The shape of the 500-sheet cassette differs from the above, but
the parts location is the same.
For item B
Gear Y
(Not supplied parts)
Gear X (302NR02930) Boss Z
Cassette left guide
Gear holder (302NR02230 / 302NS02230)
[Change-2] The shape is changed.
