2/2
CASE SPACER:
Corrective measures for abnormal image.
No.
Old Part
No.
New Part
No.
Description
Q’
ty Compatibility
Remarks
Old New Old New
1 ------------ 870LCKIT2KV120 GEMINI MODIFIKATION KIT - 1
- O
Kit of No.2 - No.9
2 2KV02521 ------------ +LEVER INTERLOOK 1 - Only as Kit (No.1)
3 2KV02501 ------------ +RATCHET SHUTTER 4 - Only as Kit (No.1)
4 2KV02542 ------------ +HINGE LID R 1 - Only as Kit (No.1)
5 2KV02532 ------------ +HINGE LID L 1 - Only as Kit (No.1)
6
2KT09111
------------ +STOPPER HOOK 1 - Only as Kit (No.1)
7 2KT09170 ------------
+SPRING STOPPER
HOOK
1 - Only as Kit (No.1)
8 2KV02461 ------------ +CAM TONER SUPPLY 4 - Only as Kit (No.1)
9 2KV02E50 ------------ +CASE SPACER 4 - Only as Kit (No.1)
Classification:
Entire Stock Rework
In-Field modification at next visit
X
In-Field modification by
case
No modification necessary
Field Measure:
--------------------
Serial Nos.:
CDC 1626L / DCC 2726L
CDC 1726L / DCC 2726L
CDC 5526L / DCC 6526L
CDC 5526L / DCC 6526L
CDC 5626L / DCC 6626L
CDC 5626L / DCC 6626L
CLP 3721L / CLP 4721L
CLP 3726L / CLP 4726L
Parts Information

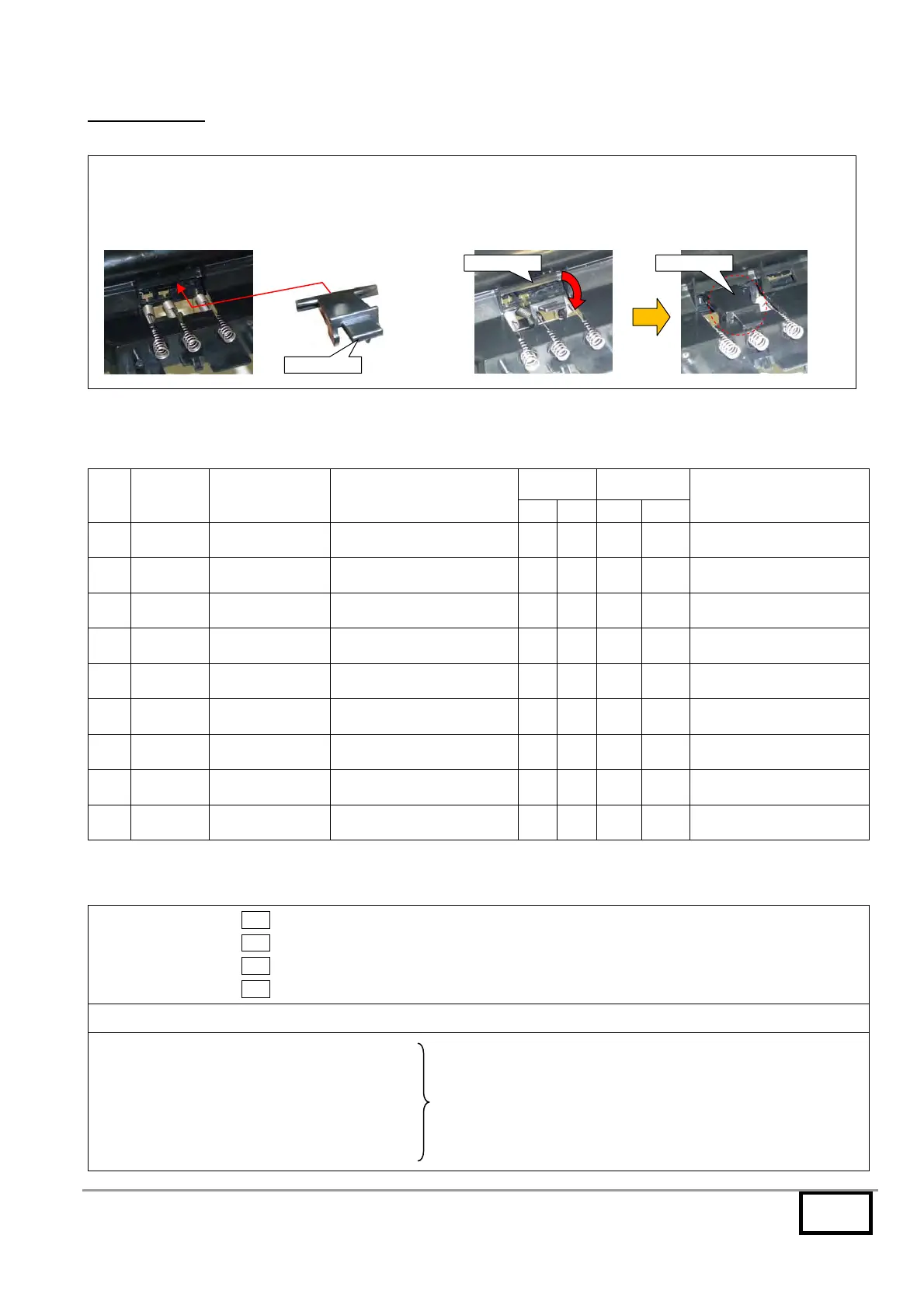

CASE SPACER
Insert the T-shape of CASE SPACER into the
aperture of the guide behind the high voltage
board aslant so that the X side of the T-shape
first is inserted.
CASE SPACER CASE SPACER
And then, secure CASE SPACER by putting the rib at the
bottom of CASE SPACER on the groove of the aperture.
To Next Page
