10-33
Troubleshooting > Troubleshooting
3
Display the correction menu
[ā²] [ā¼] key > [Adjust Magenta] > [OK] key
The magenta correction menu appears.
4
Enter the appropriate value.

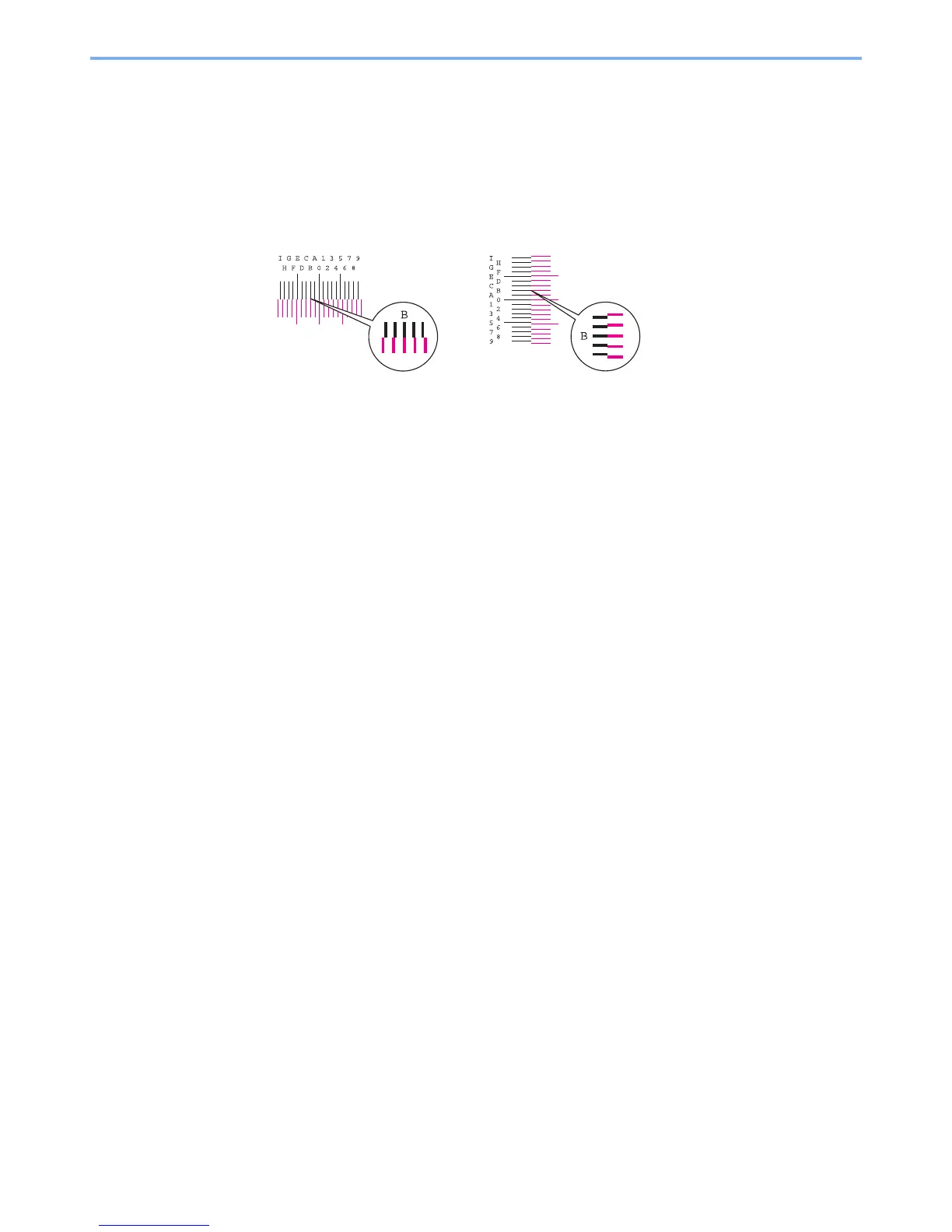

1 Find the location on each chart where 2 lines most closely match. If this is the 0 position,
registration for that color is not required. For the illustration, B is the appropriate value.
From charts H-1 to H-5, read the values from H-1 to H-5.
From charts V-1 to V-5, read only the values from V-3 (center).
2 Select the [ā] or [āŗ] key to change the H-1 to H-5 and V-3 items, select the [ā²] or [ā¼] key
to enter the values read from the chart, and select the [OK] key.
Magenta correction is performed. After a brief interval, you will return to the advanced menu for color
printing position correction.
To increase the value from 0 up to a maximum of 9, select the [ā²] key. To decrease the value, select
the [ā¼] key.
Select [ā¼] to change the value from 0 to an alphabetical letter. Continue selecting to change from A
through l. To move in the opposite direction, select [ā²].
You cannot use the numeric keys to enter these values.
3 Repeat steps 3 to 4 to correct cyan and yellow.
To Next Page
