Chapter 2: Product description
14 Stratos EX Hazardous Area Aspirating Smoke Detection System Installation Manual
Inside the detector

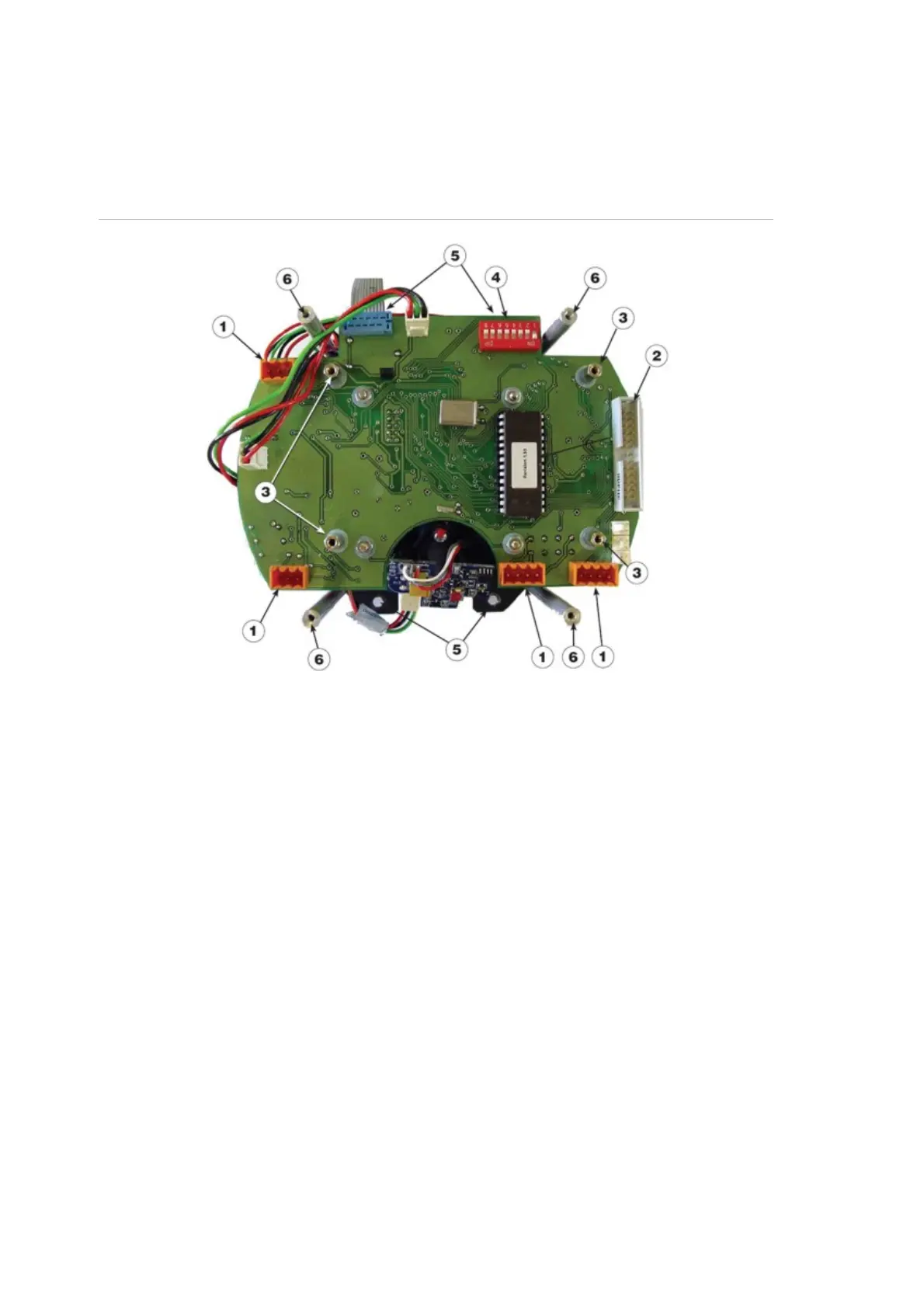

Figure 3
below shows the main interior parts of a detector with the cover off.
Figure 3: EX internal components
(1) Removable terminal blocks (See “Detector connections” on page 15.)
(2) Addressable Programmable Interface Card (APIC) connector (not currently supported)
(3) APIC securing pillars
(4) Detector address switch (See “Setting the device address” on page 29.)
(5) Detector assembly securing points x 4
(6) Display plate mounting pillar x 4
