UTICA BOILERS DVB-50 - Page 22

22
1
2
3
4
5
6
7

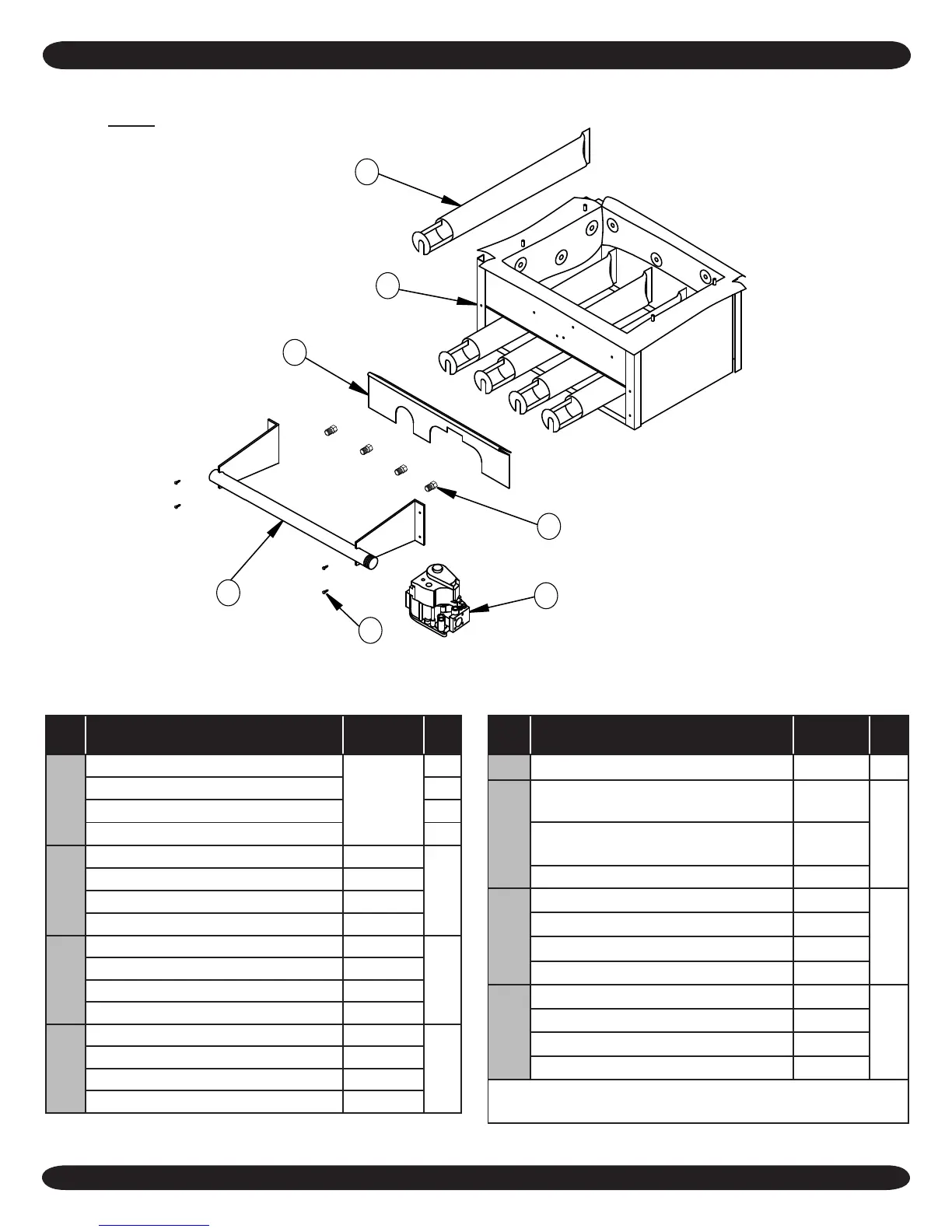

BASE
Item
#
Description Part # Qty.
1
BURNER TUBE 1 1/2" - -50
240005543
1
BURNER TUBE 1 1/2" - -100 2
BURNER TUBE 1 1/2" - -125 & 150 3
BURNER TUBE 1 1/2" - -200 4
2
BASE W/INSUL - -50 5611607
1
BASE W/INSUL - -100 5611608
BASE W/INSUL
- -125 & 150 5611609
BASE W/INSUL
- -200 5611604
3
BURNER DOOR - -50 32512501
1
BURNER DOOR - -100 32523001
BURNER DOOR -
-125 & 150 32523101
BURNER DOOR -
-200 32523102
4
MANIFOLD - -50 356-2-1.01
1
MANIFOLD - -100 356-2-1.02
MANIFOLD - -125 &150 356-2-1.03
MANIFOLD - -200 356-2-1.04
Item
#
Description Part # Qty.
5 SCREW 3/8" HEX HW005.01 4
6
GAS VALVE VR8204H-1006 - 50 - 150 SPARK
NAT
VG01101
1
GAS VALVE VR8304H-4206 - - 200 SPARK NAT VG01103
GAS VALVE VR83043216 - -50 - 200 LP VG01104
7
ORIFICE 3.2mm - 50, 100, 150, 200 240007406
*
ORIFICE 2.9mm - 125 240007404
ORIFICE #47 LP - 50, 100, 150, 200 240007403
ORIFICE #49 LP - 125 240007402
NOT
SHOWN
Combustible Base Flooring - 50 325-2-8.01
1
Combustible Base Flooring - 100 325-2-8.02
Combustible Base Flooring - 125, 150 325-2-8.03
Combustible Base Flooring - 200 325-2-8.04
*Orice Qty's per model: Model 50- qty 1. Model 100- qty 2. Model 125 & 150- qty
3. Model 200- qty 4.
REPLACEMENT PARTS
