CONNECtINg SuppLy ANd REtuRN pIpINg
NOTICE
Circulators in following illustrations are mounted on system supply side, mounting on system return
side is also acceptable practice.

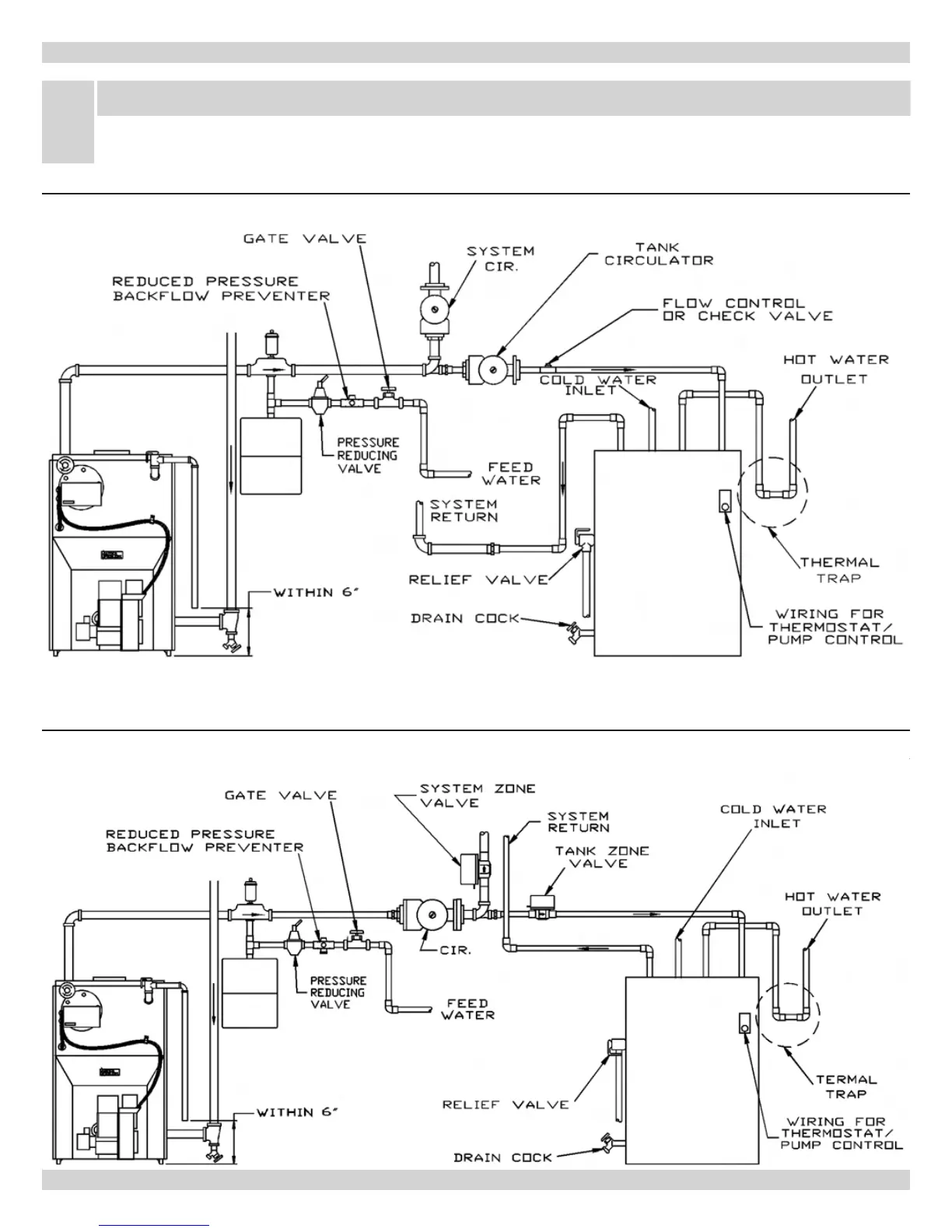

Figure 1 - Typical Installation Using Circulators
Figure 2 - Typical Installation Using Zone Valves
