NEW CONSTRUCTION ASSEMBLY INSTRUCTIONS

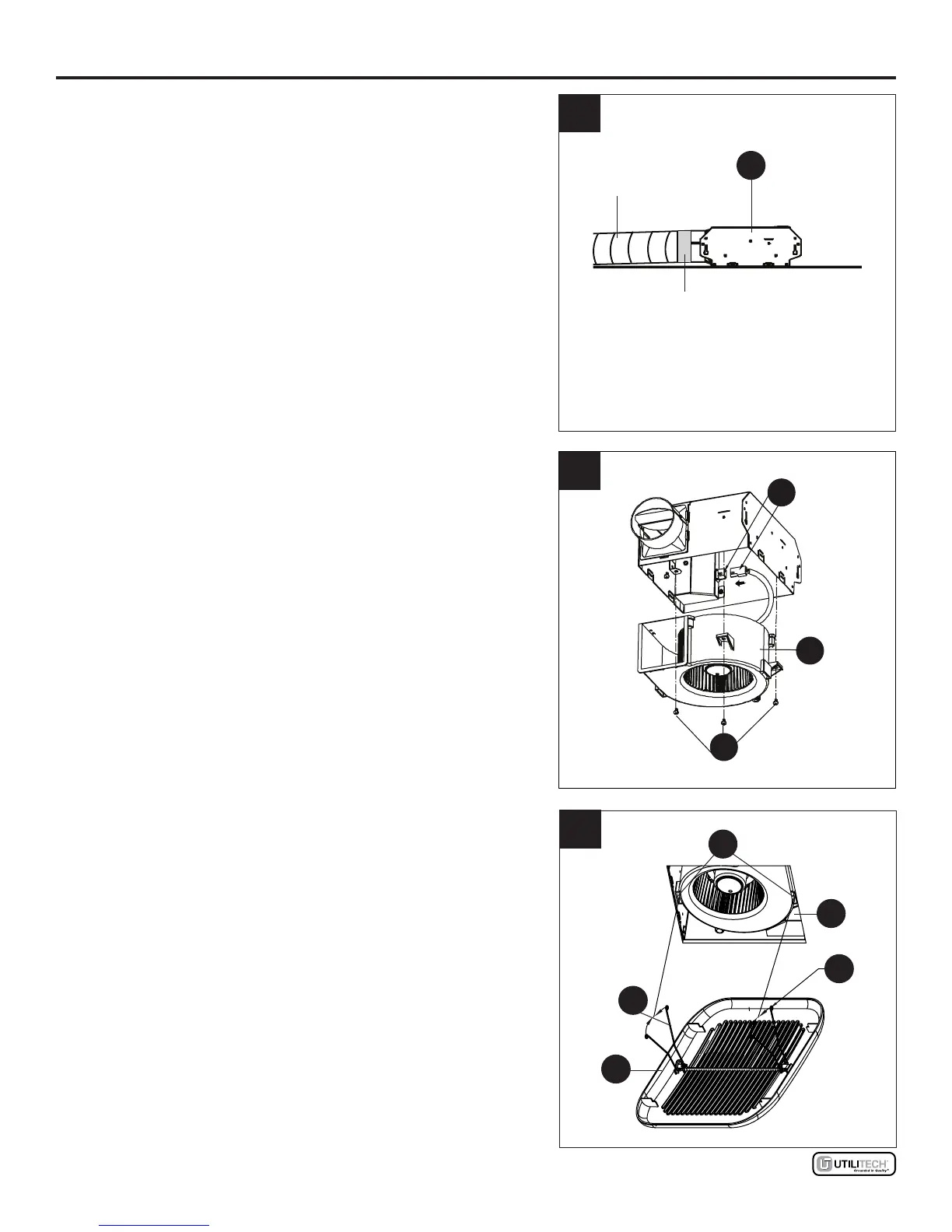

6. Install a circular 3 in. duct (not included) and secure it
with duct tape or clamps (neither included).
Finish ceiling work. Ceiling hole should be aligned with
edge of housing of fan (A).
7. Plug back in the power unit (7.1). Replace motor
assembly (7.2) using the three screws (7.3) removed
in step 1.
8. Pinch mounting springs (8.1) on grille (8.2) and insert
into narrow rectangular slots (8.3) inside the fan (A).
Push grille (8.2) up toward ceiling.
Turn on electricity at breaker box after nishing
installation.
8.3
A
8.1
8.1
8.1
7
8
7.1
7.2
7.3
Ceiling
6
A
3 in. duct
Duct tape
or clamp
To Next Page
