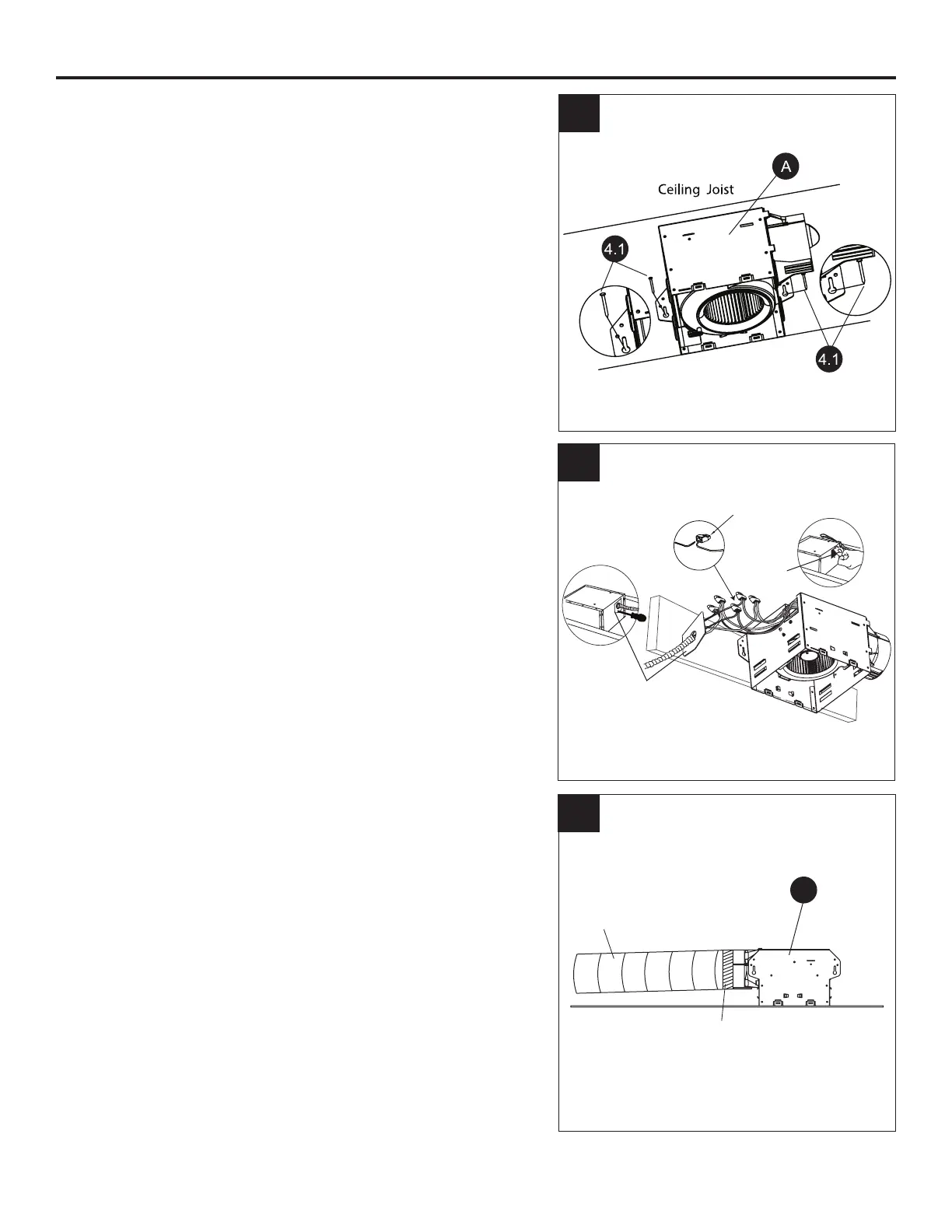

NEW CONSTRUCTION INSTALLATION INSTRUCTIONS (Continued)
4. Mount the fan housing (A) to the joist by inserting wood
screws (4.1) (not included) into the holes indicated
on the metal tabs of the fan housing (A). Tighten the
wood screws (4.1) until the fan housing (A) is rmly
secured to the joist.
4
5. Pull the house wires through the hole in the wiring
box cover. Using the quick connectors, connect the
house wiring from the wall switch to the fan housing (A).
14 AWG is the smallest conductor that should be used
for branch-circuit wiring. Please refer to the wiring
diagrams on page 4 to ensure proper wire connections
are made.
Carefully push the wire connections into the wiring
box housing and reattach the wiring box cover.
CAUTION: If your electrical wires do not match the
colors listed, consult a licensed electrician to determine
what each house wire represents before connecting
the fan.
Quick connector
Wiring
box
cover
Wiring
box
cover
5
6. Connect a 4 in. circular duct to the duct connector on
the fan housing (A), securing it with duct tape or a
clamp. Vent the duct to the outside.
Finish ceiling work. The ceiling hole should be
aligned with the edge of the fan housing (A).
4 in. duct
Ceiling
Duct tape
or clamp
A
6
