SVD48V series servo driver manual (PC software)
4.1.2.
toolbar

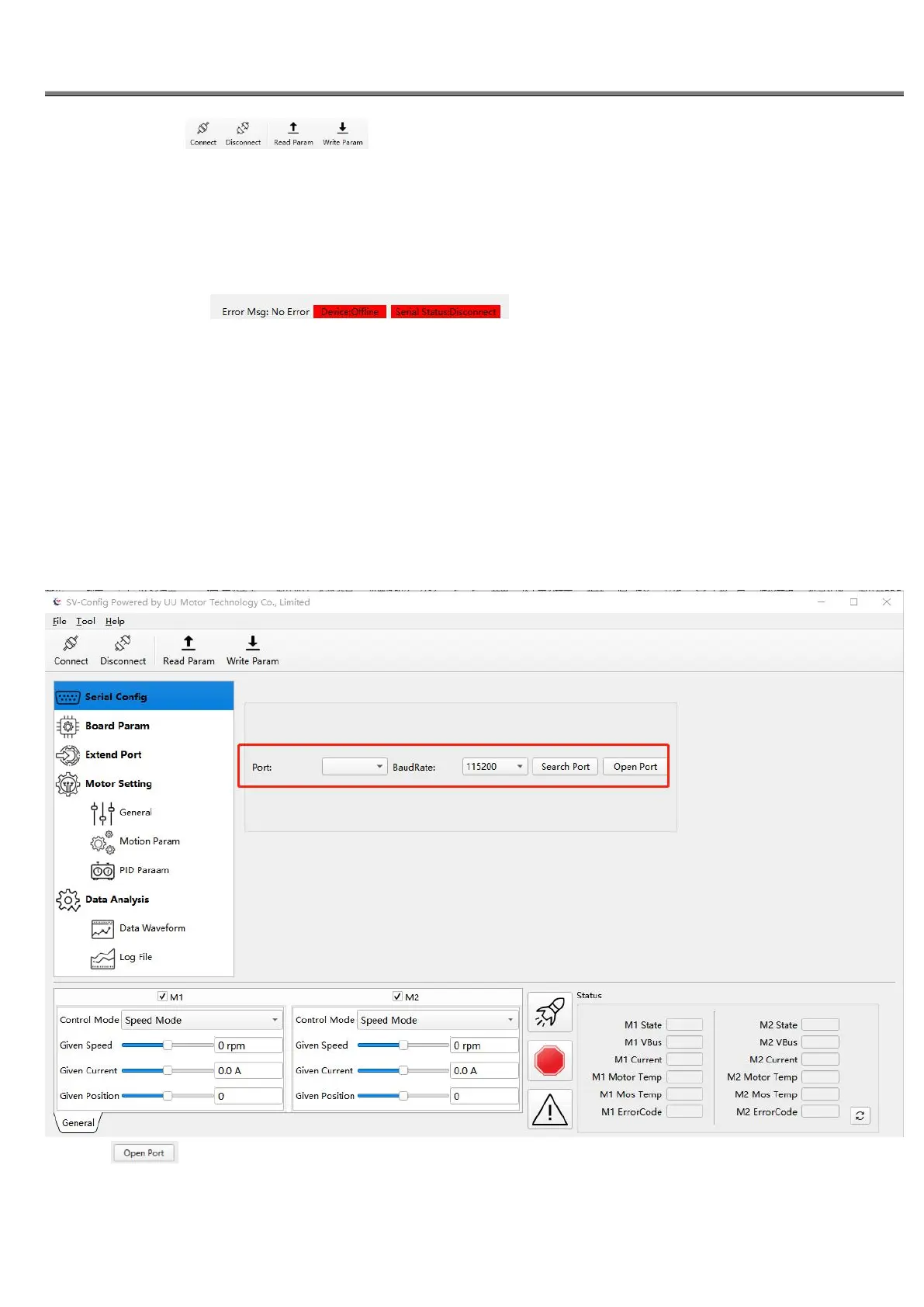

1. Connect. After opening the serial port one time, you can quickly open the serial port through this button.
2. Disconnect. close the serial port.
3. Read param, read all parameters from the drive.
4. Write param, connect the host computer SV-Conifg Write all the parameters to the driver. Note: the
parameters must be written(download to driver) after the motor is stopped.
4.1.3.
Status Bar
The status bar includes three parts: driver error status, device connection status, and serial port connection status.
4.2.
Connect the device
Before use, please make sure that the driver and the motors are connected correctly, and ensure that the power supply
voltage is within the specified range(18V-60V). For your safety, please keep the in-wheel motor off the ground and keep
the motor in a suspended state during the first power-on debugging. Use RS232 Serial cable to connect the driver to
PC ( 24V,36V or 48V batteries or DC power supply).
4.2.1.
Serial connection
Open SV-Config on the PC , select the corresponding serial port number, select 115200 for the baud rate , and then
open the serial port.Please noted that you may need to install the USB driver of your RS232 to USB cable.
Click the button , after the device is connected , the status information in the status bar will be refreshed in real
time .
