SCUBAPRO ALADIN 2G

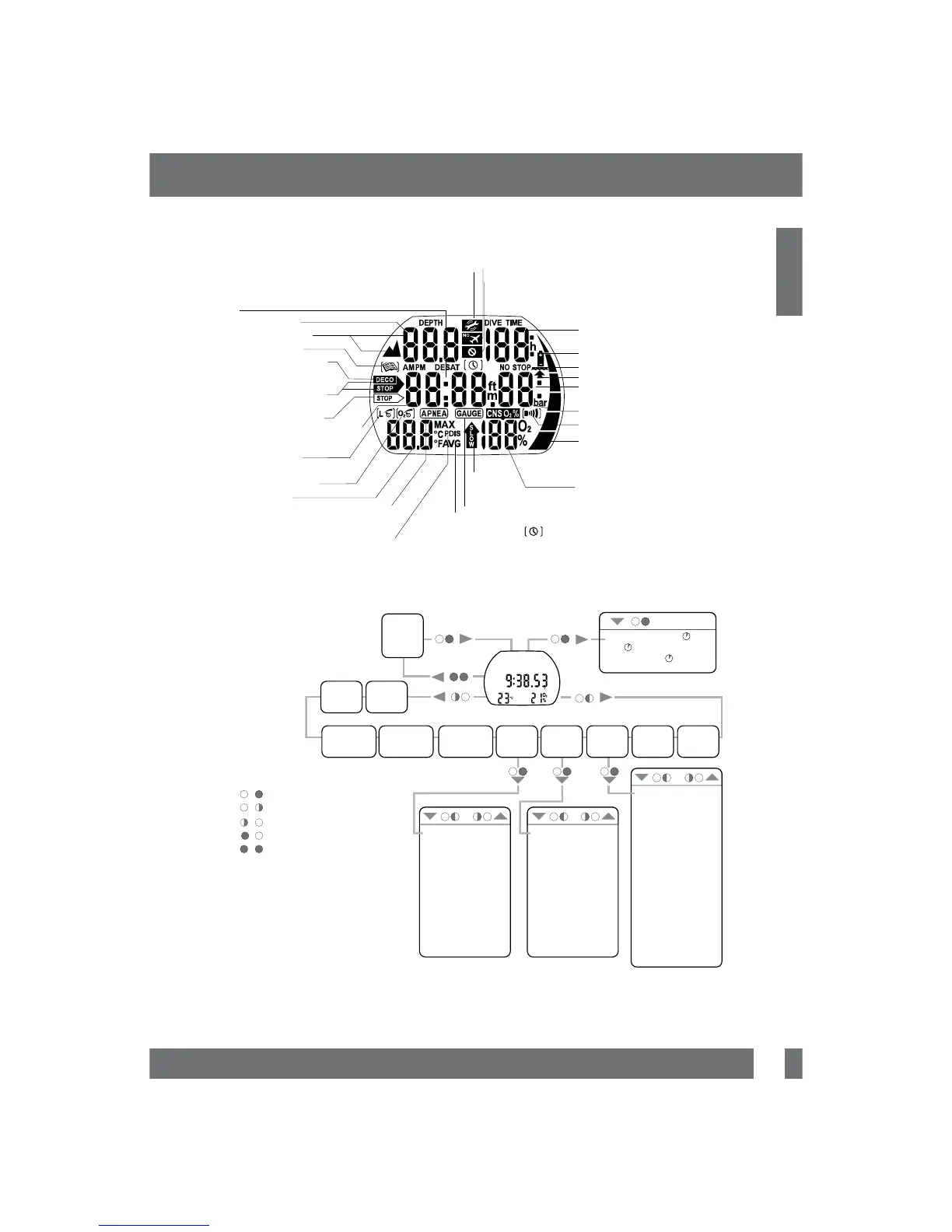

Quick reference
MB level icon
(input / MB level reduced)
O
2
mix icon (input)
Current depth
Altitude sections
Too fast
ascent
Max depth
Temperature
MB level
Maximum Operating
Depth (MOD)
Average depth
Dive number
Setting icon
Service icon
Logbook icon
AM/PM icon
Desaturation icon
Do not fly icon
Dive time / No-fly time /
SOS duration
Repetitive dive number
No-stop time / Total ascent time
MB no-stop time
Time of day / Date
Decompression depth / Level stop depth
Desaturation time (DESAT)
Duration of no-dive warning
Duration of surface interval
Partial pressure of oxygen ppO
2
Ascent time icon
No-stop indicator
Level stop indicator
Decompression stop
obligation / Ignored
decompression stop
Decompression stop
indicator
Gauge icon
Average
depth icon
Icon for stopwatch and safety stop timer
No-dive warning
O
2
mix
Oxygen toxicity CNS O
2
%
Ascent rate
Alarm clock icon / Infrared icon
Battery icon
Nitrogen loading bar (dive)
Residual Nitrogen bar (surface)
Desaturation
Battery condition
Decompression stop duration
Level stop duration
PDIS icon
Apnea
icon
AMPM
DESAT
Operating scheme
“->” means “more information at page”
Enter
/ Scroll / Change setting
Backlight
Exit
Without operation the display
switches automatically back to
the time of day display and after
3 minutes the display switches
off.
/
/
/
Off
Gas 1
O
2
%
->21
Gas d
O
2
%
->48
MB Level
L0-L5
->37
Dive mode
selection (Algo):
deco/gauge/
APNEA
->35
Altitude
adjustment
->58
Set 2
->63
Set 1
->58
Dive
planner
->54
Logbook
->56
Time of day display
• (Desat. time CNS O
2
% ) ->15
• Date
->16
• Battery condition
->16
• Alarm clock - > 63
• UTC time zone - > 63
• Time of day - > 64
• 24h / AM PM - > 64
• Date - > 64
• Display contrast - > 64
• IrDA speed - > 65
• Sound on / off - > 65
• Electronic ID - > 65
• Depth alarm - > 58
• Dive time alarm - > 59
• Safety stop duration - > 59
• ppO
2
max - > 59
• Reset to air - > 59
• Deco gas on / off - > 60
• PDIS - > 60
• Unit system - > 60
• Sait / fresh water - > 60
• Backlight duration - > 61
• Attention beep on / off - > 61
• Water contacts on / off - > 61
• Reset desaturation - > 62
• Dual Depth alarm ->66
• Incremental depth
alarm ->66
• Dive time interval
warning ->66
• Surface interval
warning ->67
• Ascent speed alarm ->67
• Water density ->67
Set 3
->63
(Apnea)
See also page 15
