Uwatec X650 Repair Guide

SCUBAPRO X650 SECOND STAGE
©2003 SCUBAPRO
Important note: The following information is not designed to be a complete training guide for servicing the listed SCUBAPRO regulators. All SCUBAPRO
technicians are required to attend an annual service training program to insure safe handling and servicing of SCUBAPRO products. All SCUBAPRO technicians
must be employed by an authorized SCUBAPRO facility.
12
Monoject

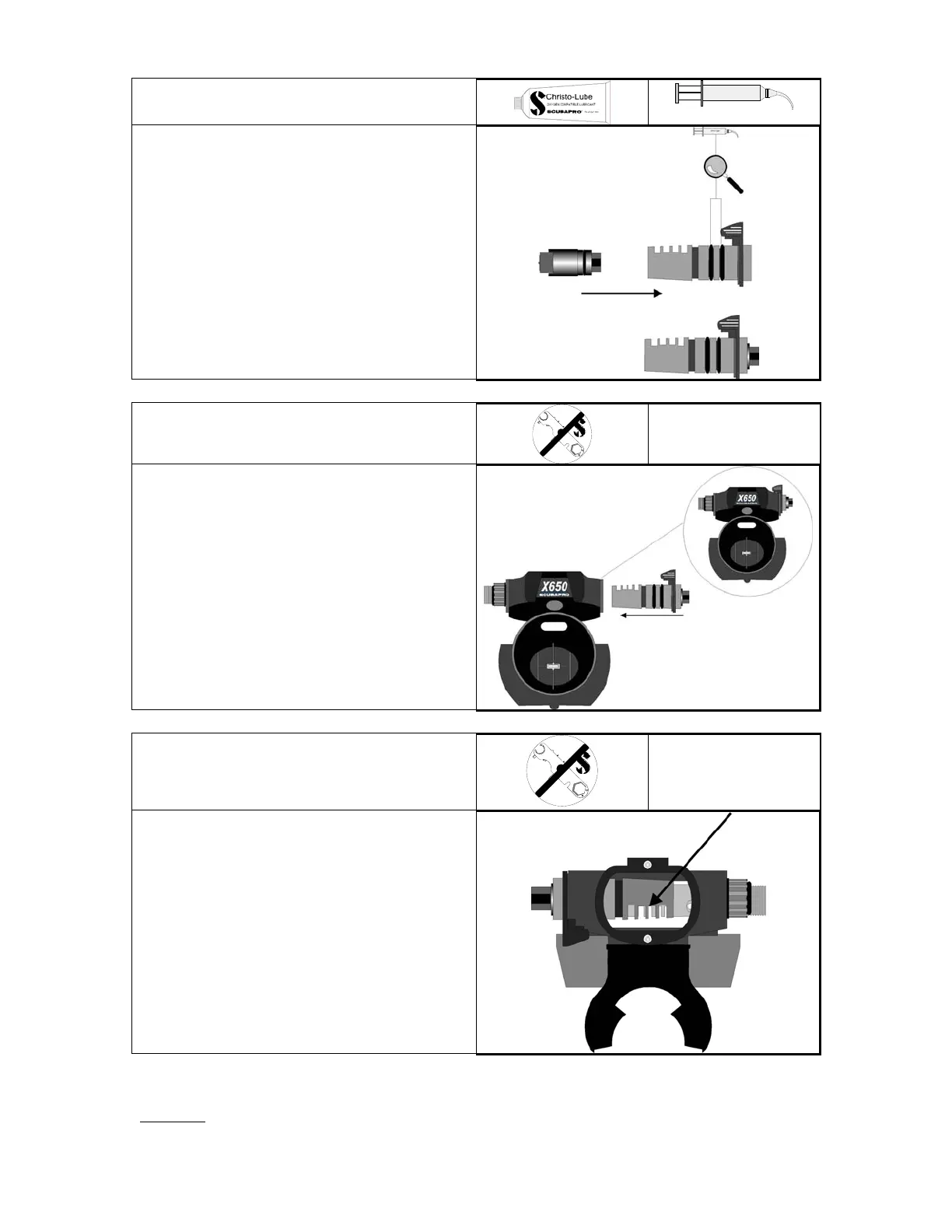

Inspect, lubricate and install the o’rings
on the dive switch.
Install the adjustment assembly into the
dive switch as shown.
P
/
N
4
3
0
4
0
0
0
0
TOOLS
NEEDED
No tools needed
this step
Install the dive switch into the housing
as shown.
P
/
N
4
3
0
4
0
0
0
0
TOOLS
NEEDED
No tools needed
this step
Properly installed the dive switch lever
fits into a groove on the casing.
If the top cover has been removed
(only done as required) the sleeve tabs
can be seen engaged with the air
barrel slots.
