V-Tec DT596/KP - Door Station Mounting

-2-
 Lock Control Jumper: 
 Doorstation Code DIP: 
 MIC
 SPK
 Main Connect Port:
• 
 
 
 


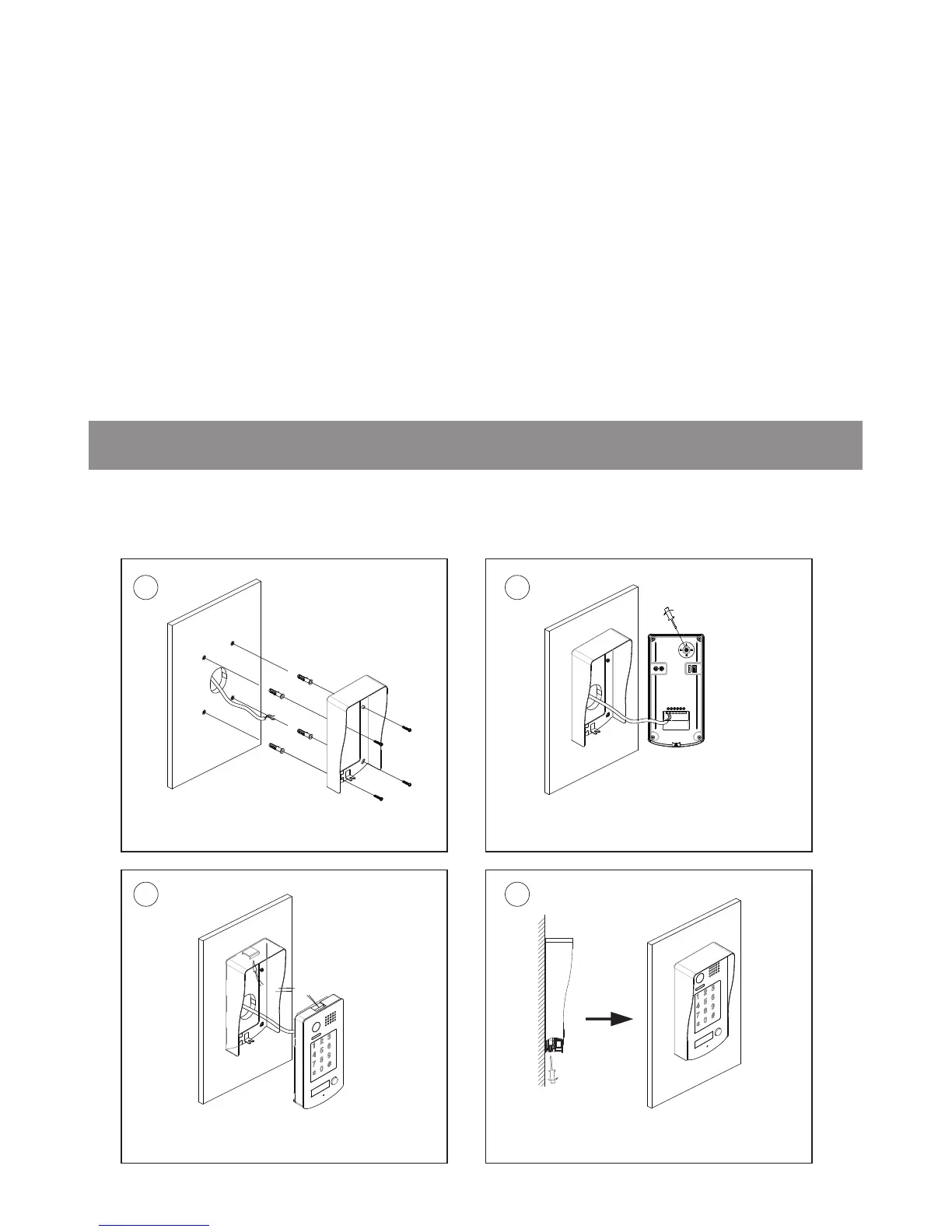

3.Door Station Mounting
adjust camera angle
1 2
43
Drill holes in the wall to match the size of
screws and attach the rainy cover to the wall.
Attach the panel to the rainy cover Use the screwdriver and the screw
to fix the panel
Connect the cable correctly and adjust
right angle for camera
DT596/KP Mounting
