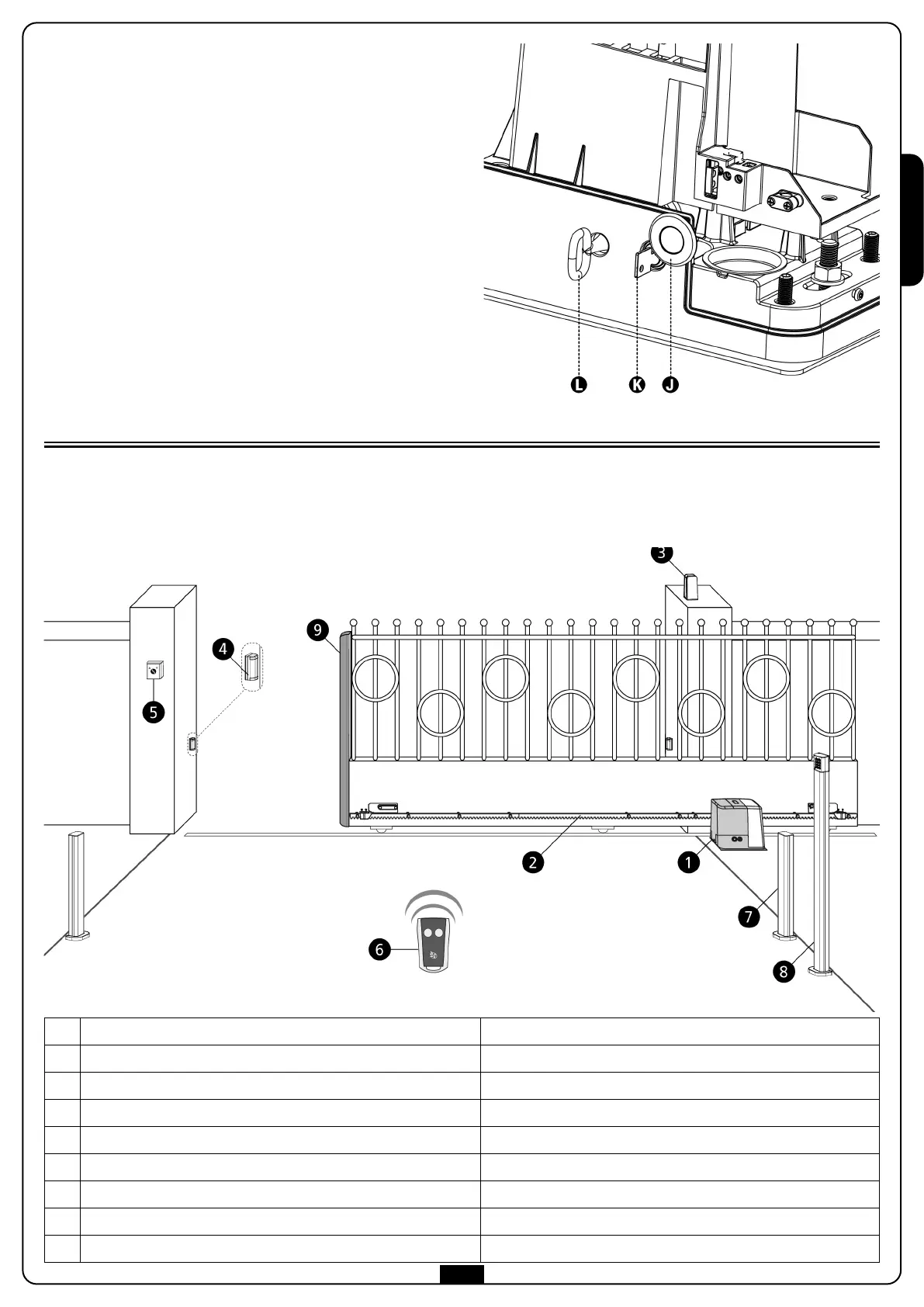

3.6 - INSTALLATION LAYOUT
3.5 - MOTOR OVERRIDING SYSTEM
In case of absence of current, the gate can be released by
operating on the motor:
1. Open the hatch of the lock J in front of the motor
2. Insert the key K in the lock and turn clockwise to open the
hatch of the release on the side
3. Insert the key L into the hole and turn clockwise until reached
the limit switch
To restore the automation, proceed as follows:
1. Turn the key L anticlockwise until reached the limit switch,
then draw it out
2. Turn the key K anticlockwise closing the hatch of the lock,
then draw it out
3. Close the lock with the hatch J
ALFARISS actuator Power supply cable 3 x 1,5 mm
2
(T100°C)
Rack -
Flashing light with built-in antenna Power supply 2 x 1 mm
2
- antenna RG58
Photocells cable 4 x 0,5 mm
2
(RX) - cable 2 x 0,5 mm
2
(TX)
Key switch cable 2 x 1 mm
2
Transmitter -
Pillar photocells cable 4 x 0,5 mm
2
(RX) - cable 2 x 0,5 mm
2
(TX)
Pillar-mounted digital radio switch -
Safety edge (EN 12978) -
