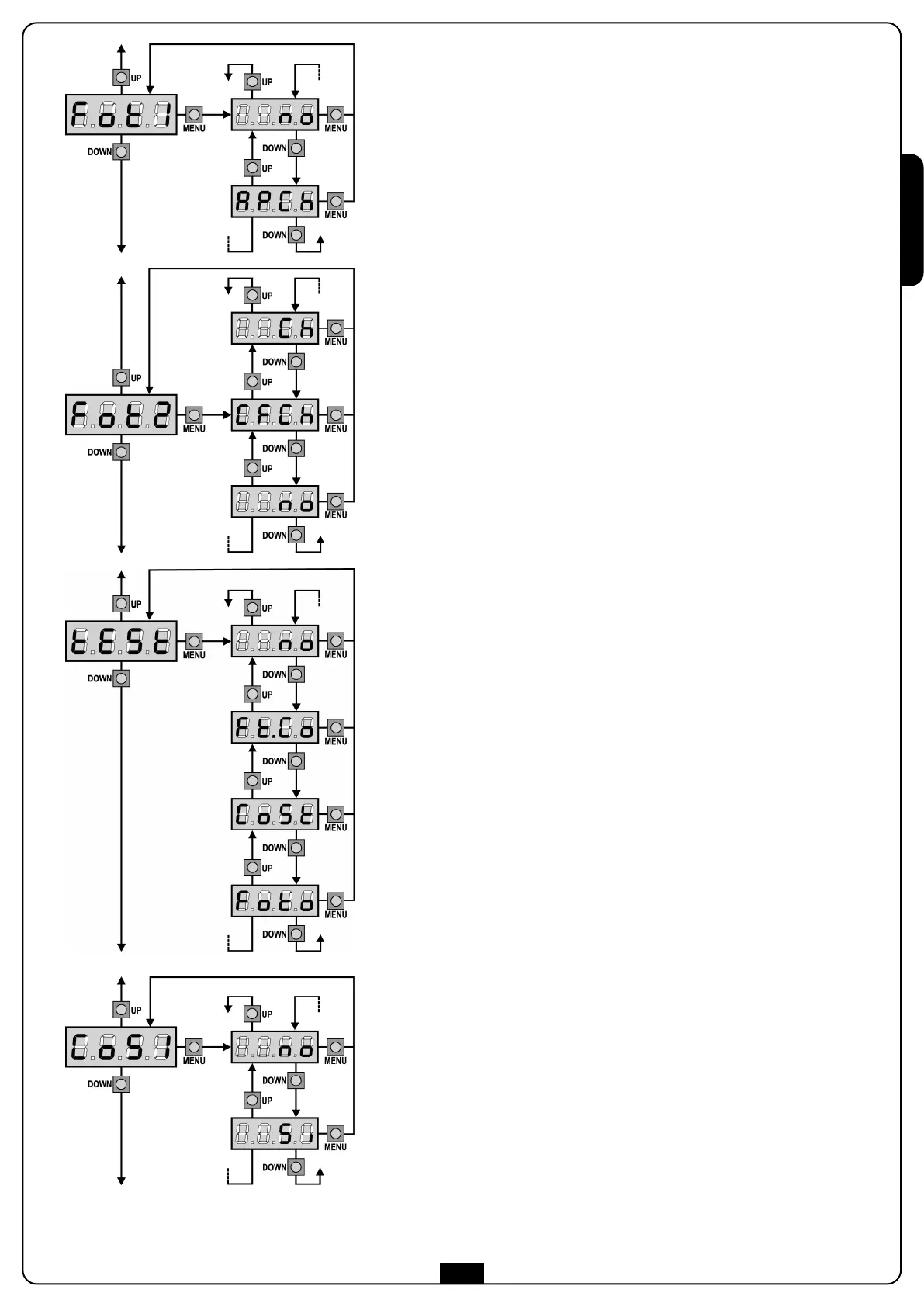

Photocell 1 input
This menu allows enabling the input for type 1 photocells, that is to say,
photocells active both during the opening and closing phase (see
paragraph “Installation”).
no input disabled (ignored by the control unit).
No jumper with the common is required.
AP.CH input enabled.
Photocell 2 input
T
his menu allows enabling the input for type 2 photocells, that is to say,
photocells non active during the opening phase (see paragraph
“Installation”).
n
o input disabled (ignored by the control unit).
No jumper with the common is required.
CF.CH input enabled even at standstill gate too: the opening
movement does not start if photocell is interrupted.
CH input enabled for the closing phase only
Warning: if you select this option, you must disable
photocell test.
Test of safety devices
In order to achieve a safer operation for the user, the unit performs a
safety devices operational test, before a normal working cycle.
If no operational faults are found, the gate starts moving. Otherwise, it
will stand still and the flashing light will stay onfor 5 sec. The whole test
cycle lasts less than one second.
no function not active
Foto test enabled only for photocells
CoSt test enabled only for safety edges
Ft.Co test enabled either for photocells or for safety edges
WARNING: The Test of safety devices should be working in
order to grant more safety during installation and programming.
WARNING: it is possible to test safety edges only if a control
unit specially provided for this function has been installed.
Safety ribbon 1 input
This menu allows enabling the input for type 1 safety ribbon, that is to
say, fixed ribbons (see paragraph “Installation”).
no input disabled (ignored by the control unit).
No jumper with the common is required.
Si input enabled.
