SECURING THE GEARMOTOR TO THE
FIXING BRACKETS
1. Secure the gearmotor to the rear bracket:
NOTE: if the rear bracket is not completely level, the
back tilting section can help compensate for any axis
misalignments between the two brackets (+/-5°).
- 5°
+ 5°
2. Secure the gearmotor to the bracket as shown in fig. 6, using
the screw, washer and nut supplied;
3. Fully tighten the nut and then loosen it again by approximately
1/10 of a turn, to allow a minimum clearance between the
parts.
1
2
4. Secure the gearmotor to the front bracket.
5. Secure the gearmotor to the bracket as shown in fig. 7, using
the screw and the washer supplied.
6. Fully tighten the screw.
1
2
3

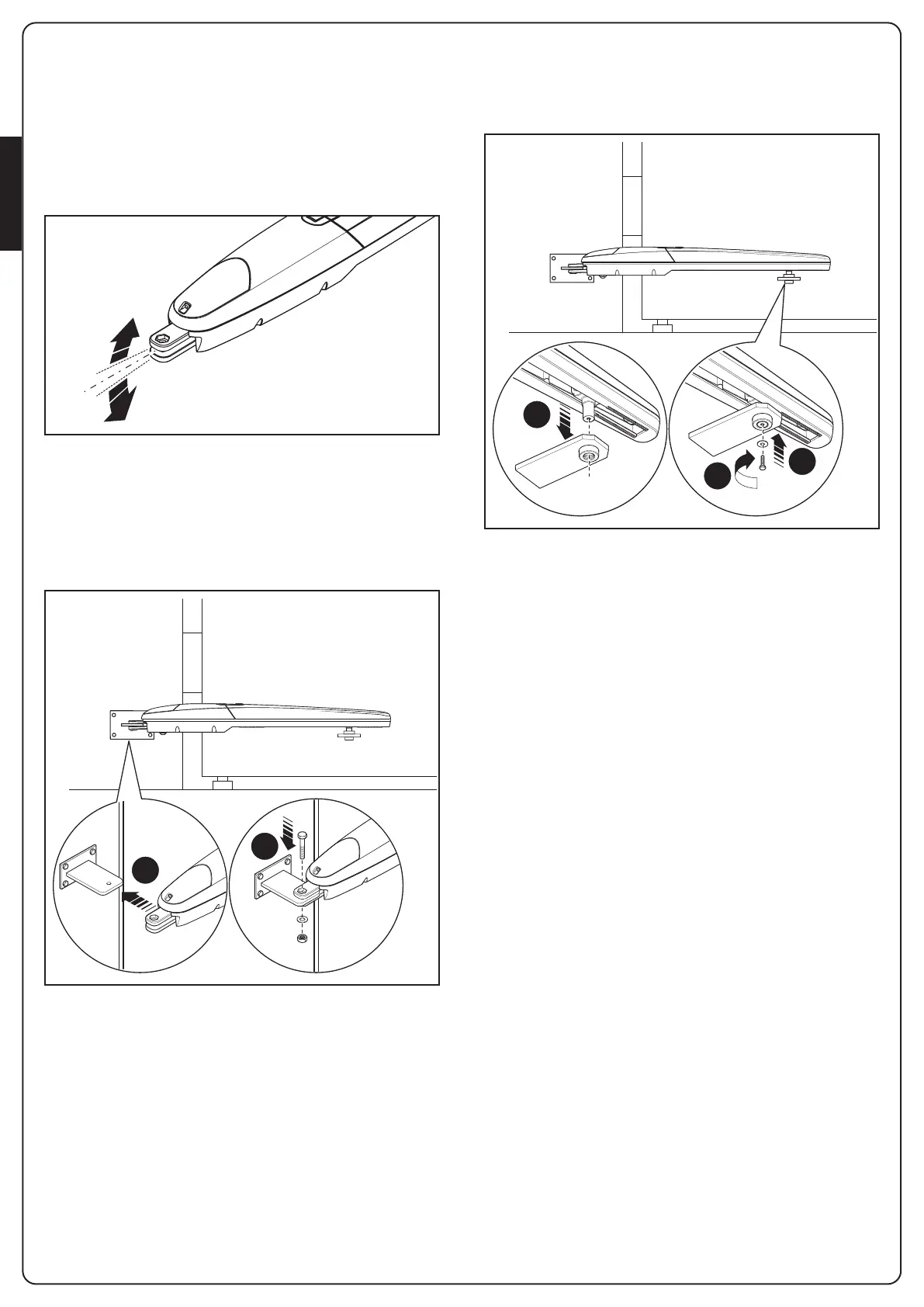

FIG.5
FIG.6
FIG.7
