vacon • 4 Vacon 100 X - Heater(arctic option)

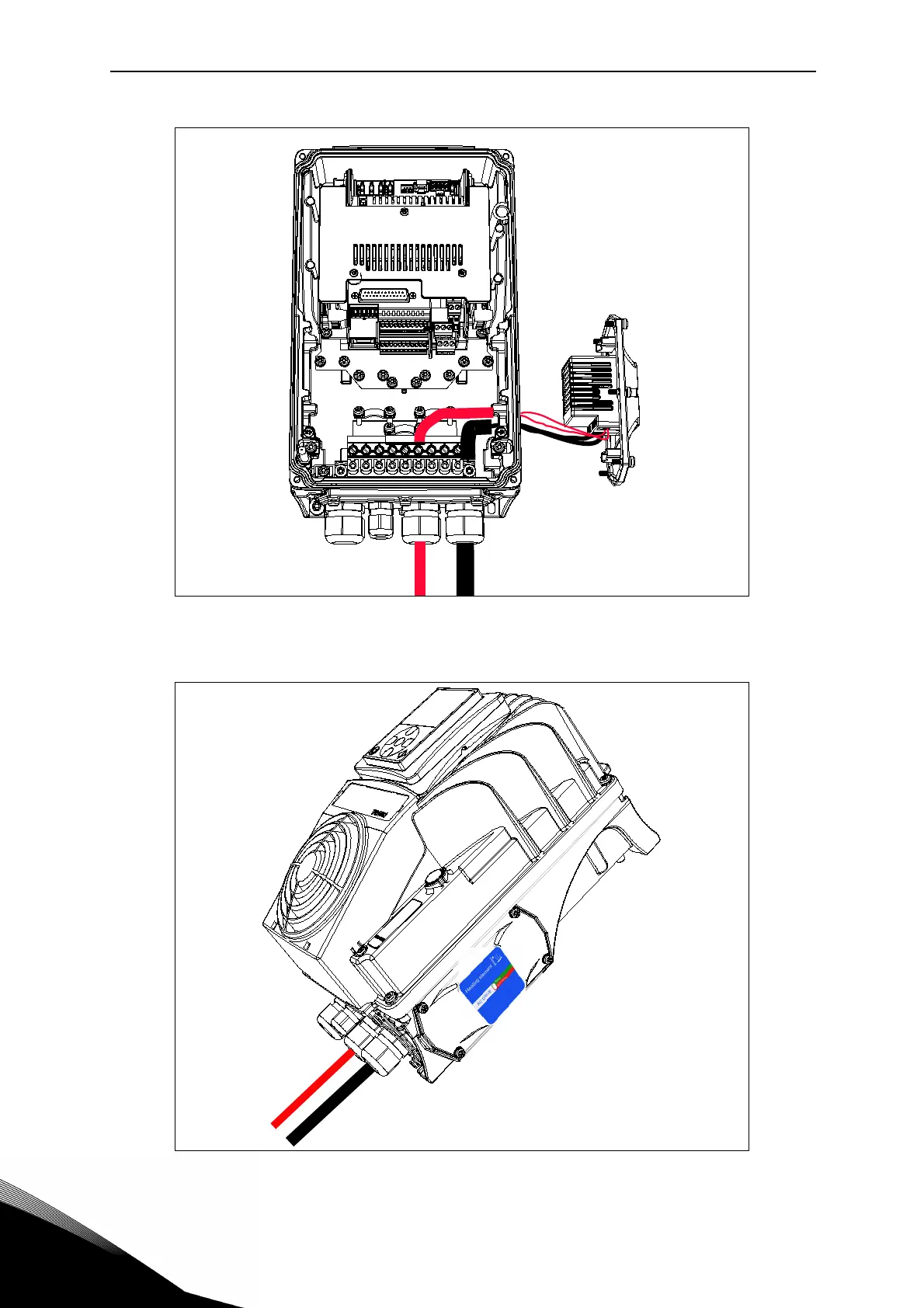

Figure 5. Connect the supply voltage(black cable) and the output relay(red cable) to the
optional heater through the bottom cable entry plate. Color of the cables is only as exam-
ple.
Figure 6. Mount the optional heater on the terminal box and then close the powerhead.
