Vacon CX User Manual

Vacon Plc Phone: +358-(0)201 2121 Fax: +358-(0)201 212 205
Service: +358-40-8371 150 E-mail: vacon@vacon.com
Page 20
VV
VV
V
aconacon
aconacon
acon
Multi-purpose Control Application IIMulti-purpose Control Application II
Multi-purpose Control Application IIMulti-purpose Control Application II
Multi-purpose Control Application II
6.2 Description of Groups 2—10 parameters6.2 Description of Groups 2—10 parameters
6.2 Description of Groups 2—10 parameters6.2 Description of Groups 2—10 parameters
6.2 Description of Groups 2—10 parameters
2. 12. 1
2. 12. 1
2. 1
Start/Stop logic selectionStart/Stop logic selection
Start/Stop logic selectionStart/Stop logic selection
Start/Stop logic selection
0:0:
0:0:
0: DIA1: closed contact = start forward
DIA2: closed contact = start reverse,
See figure 6-1.
DIA1
DIA2
1 2 3
t
UD009K09
Output
frequency
Stop function
(par 4. 7)
= coasting
FWD
REV

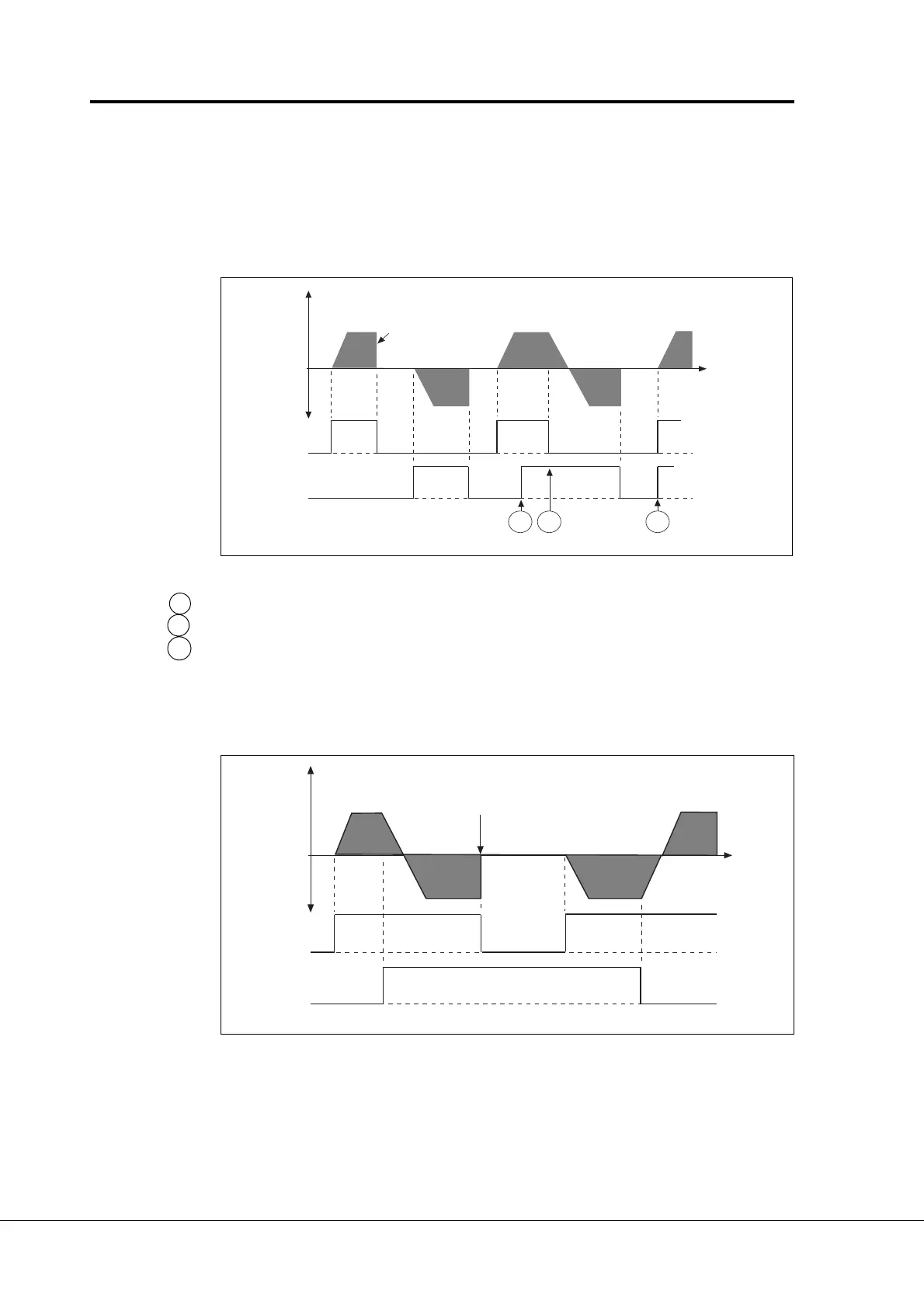

Figure 6-1 Start forward/Start reverse.
1 The first selected direction has the highest priority
2 When DIA1 contact opens, the direction of rotation starts to change
3 If Start forward (DIA1) and Start reverse (DIA2) signals are active
simultaneously, the Start forward signal (DIA1) has priority.
1:1:
1:1:
1: DIA1: closed contact = start open contact = stop
DIA2: closed contact = reverse open contact = forward
See figure 6-2.
DIA1
DIA2
t
UD012K10
Output
frequency
Stop function
(par 4. 7
= coasting
FWD
REV
Figure 6-2 Start, Stop,reverse.
