4.3.2 Analogue output 1
2.3.2.1 Analogue Output 1 signal ID (ID1233)
Set the ID no. of a signal to be connected to AO1. To connect e.g. DC-link voltage to
Analog output 1, enter 1108 as parameter value.
NOTE! If Analogue input has been chosen to be used for PT100 measurement (P2.2.2.1 >
0) the Analogue Output 1 is forced to 10mA level.
2.3.2.2 Analogue Output 1 Offset (ID1234)
Minimum voltage or current at AO1.
0 = 0V/0mA,
1 = 4mA
2.3.2.3 Analogue Output Filter time (ID1235)
Defines filtering time of the analogue output signal.

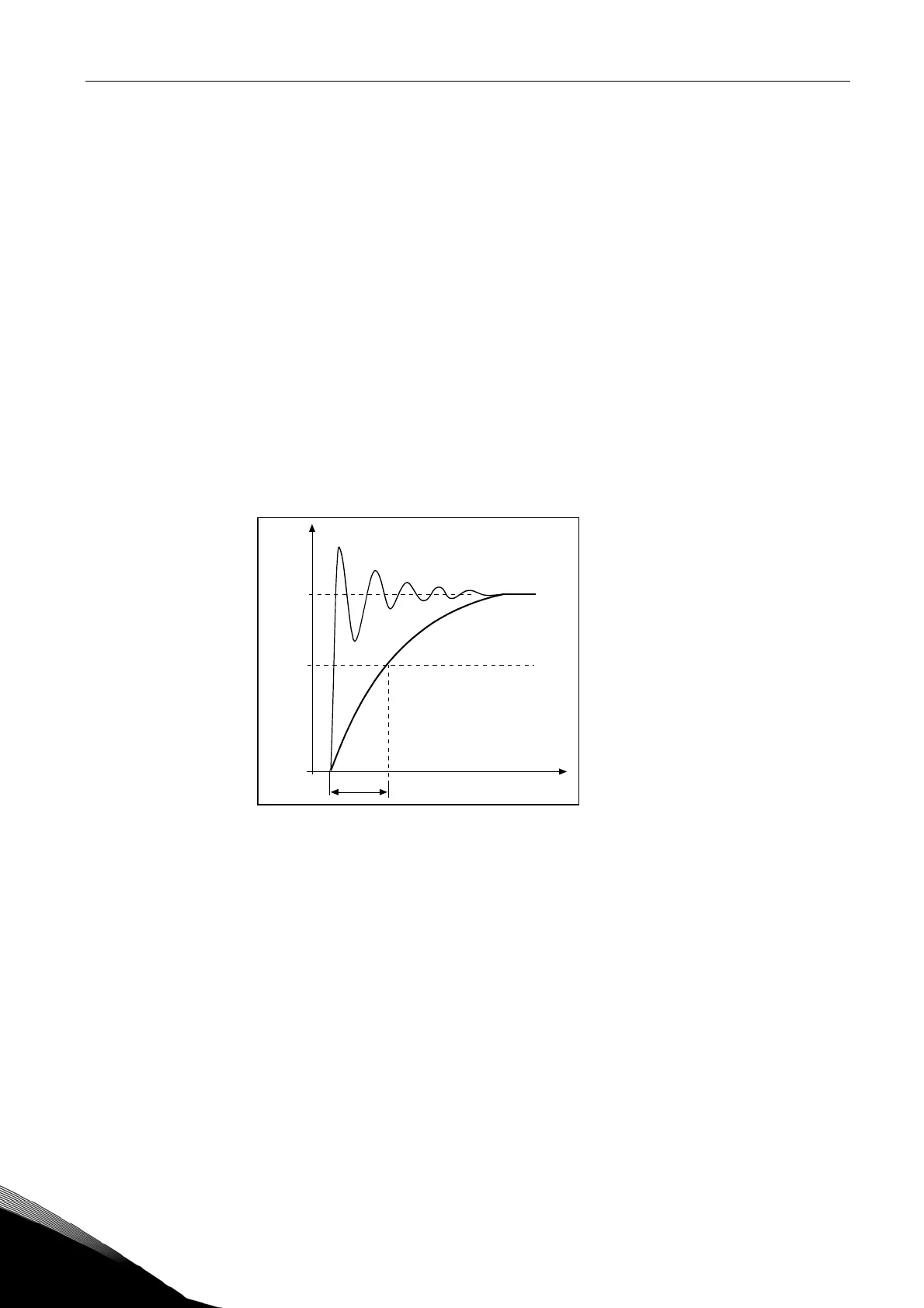

Figure 5. Analogue output filtering
2.3.2.4 Analogue Output Maximum value (ID1236)
Maximum value of a signal selected for AO1. This will correspond to +10V/20mA.
2.3.2.5 Analogue Output Minimum value (ID1237)
Minimum value of a signal selected for AO1. This will correspond to 0V/0mA or 2V/4mA
depending on the type of AO1.
%
100%
63%
t [s]
NX12K16
Filtered signal
Unfiltered signal
ID1235
