0020230533_06 ecoFIT pure Installation and maintenance instructions 13
6 Set-up
6.1 Checking the scope of delivery
▶ Check that the scope of delivery is complete and intact.
Number Designation
1 Heat generator
1 Unit mounting bracket
1
Flexible condensate discharge pipe
4 3/4" seals
3 1/2" seals
2 Service valve
1 Gas stopcock
2 Connection pipe (heating flow and return)
1 Gas pipe
1 Drain pipe for the Pressure relief valve
1 Mounting template
1 Enclosed documentation

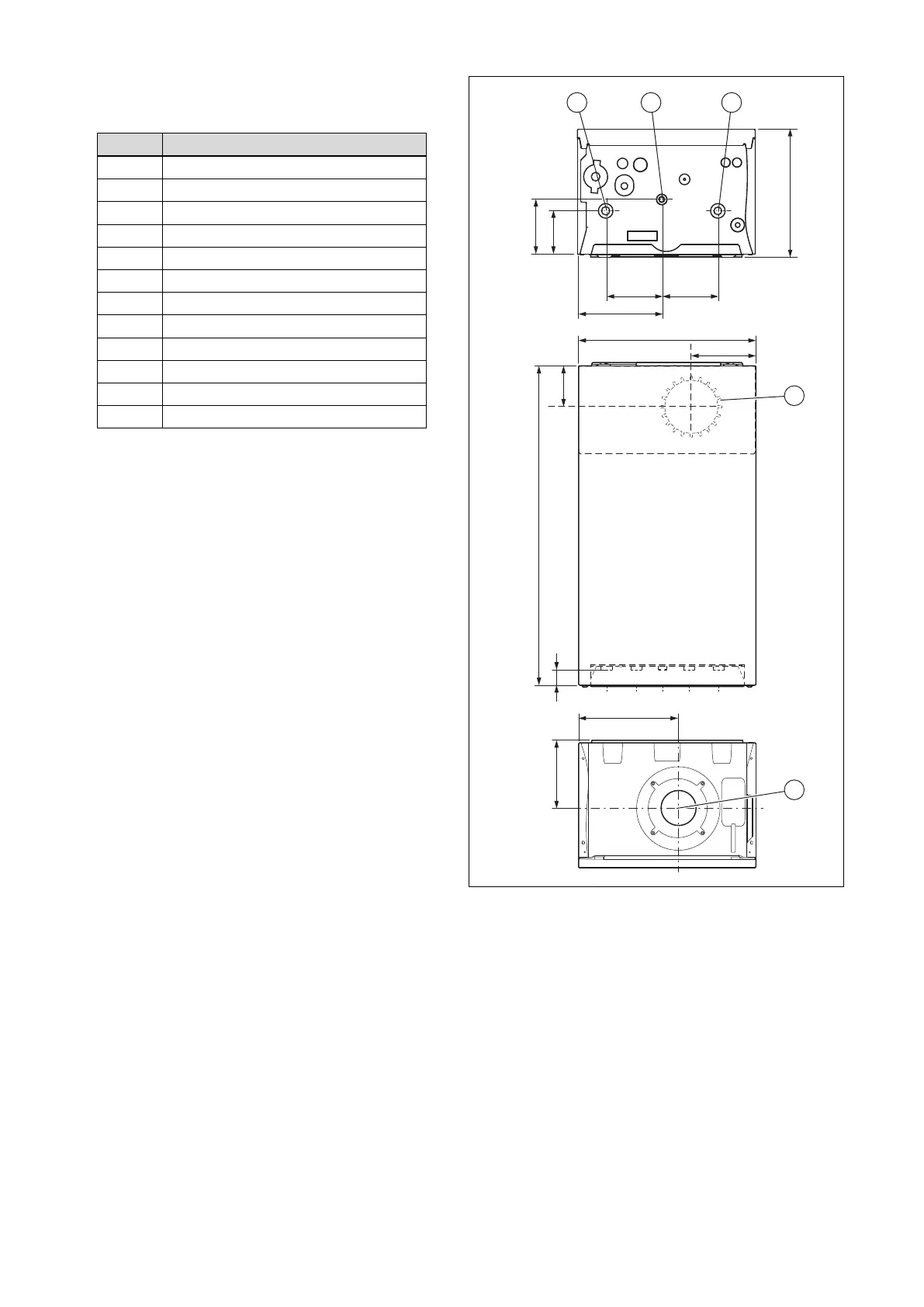

6.2 Dimensions
96
121
34
123
185
390
123
220
700
150
295
150
76
1 2 3
5
4
1 Heating flow
2 Gas connection
3 Heating return
4 Rear air/flue pipe con-
nection
5 Top air/flue pipe con-
nection

Vaillant ecoFIT pure Series Specifications

General

Mounting	Wall-mounted
Efficiency Rating	A
Fuel Type	Natural Gas
Warranty	2 years
Model	ecoFIT pure
Dimensions	700mm x 390mm x 295mm
Efficiency	94%
