Vaillant ecoTEC plus 824 User Manual

Supplied By www.heating spares.co Tel. 0161 620 6677
50
220
15
3
1

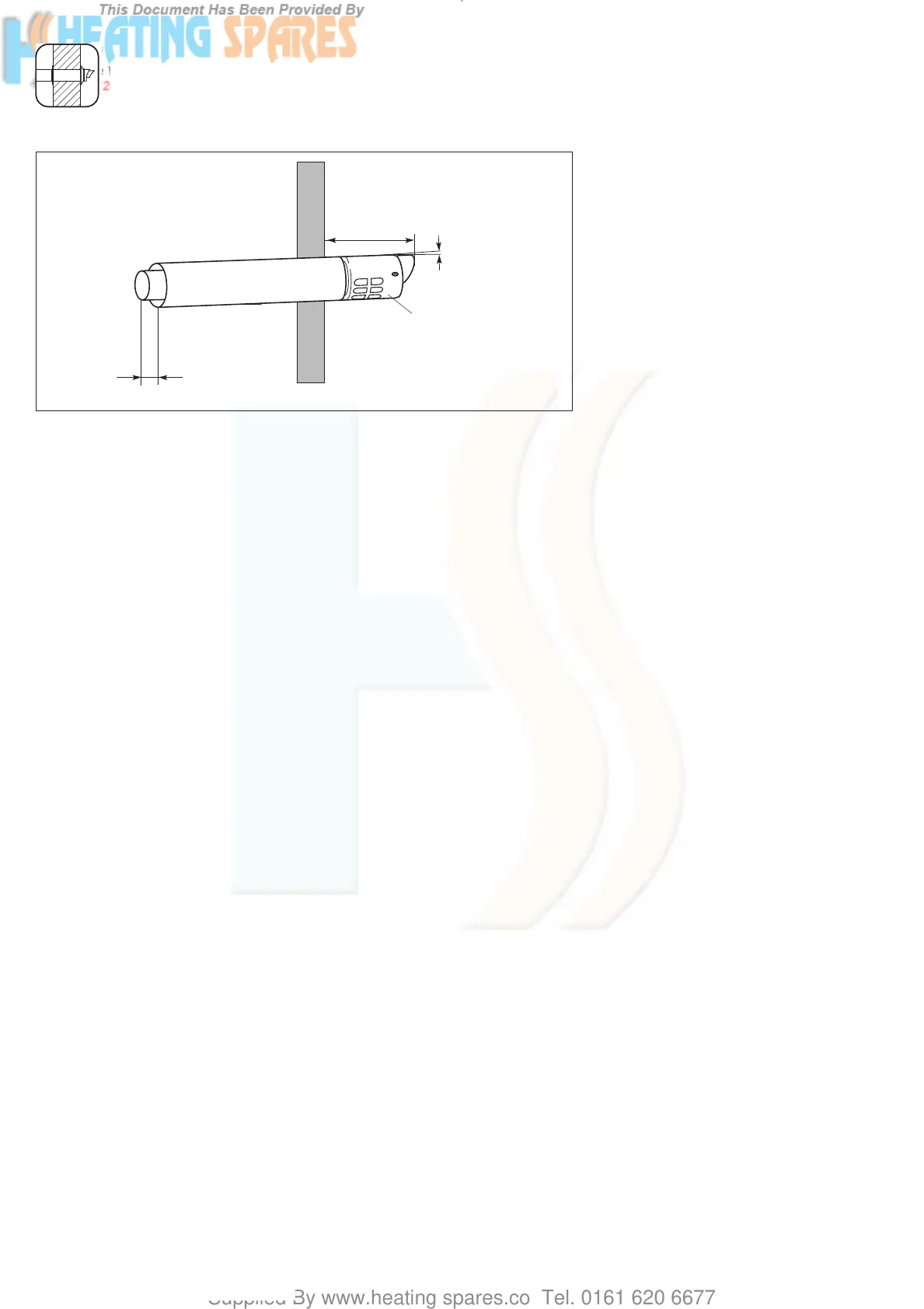

Fig. 4.8: Installing the horizontal wall duct
LGU_LAZ 384/0_IT
• Push the assembled air/flue duct
and terminal assembly through the
flue exit hole until it protrudes
220 mm out from the outside
wall.
• Ensure that the terminal is
correctly positioned with the air
inlet grille at the bottom.
• Slide one of the two trim rings
over the air duct until it is flush
with the internal wall face.
INSTALLATION OF THE HORIZONTAL AIR/FLUE DUCT Ø 80/125 WITH
EXTENSIONS
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 50

Vaillant ecoTEC plus 824 Specifications

General

Model	ecoTEC plus 824
Category	Boiler
Type	Combination Boiler
Output	24 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Efficiency	89.3%
Energy Efficiency Class	A
Mounting	Wall-mounted
ERP Rating	A
DHW Output (kW)	24 kW
Maximum Working Pressure	3 bar
Weight	34 kg
Fuel	Natural Gas
Warranty	5 years
