30 Air/flue pipe installation manual 0020308120_02
55
2. Secure the extensions to the wall using the pipe
clamps.
– Use one pipe clamp for each extension directly
beside the sleeve.
– Upstream of each elbow, install another pipe clamp
on the extension.
– Secure the 87° elbow with bird-guard grille using a
separate pipe clamp.

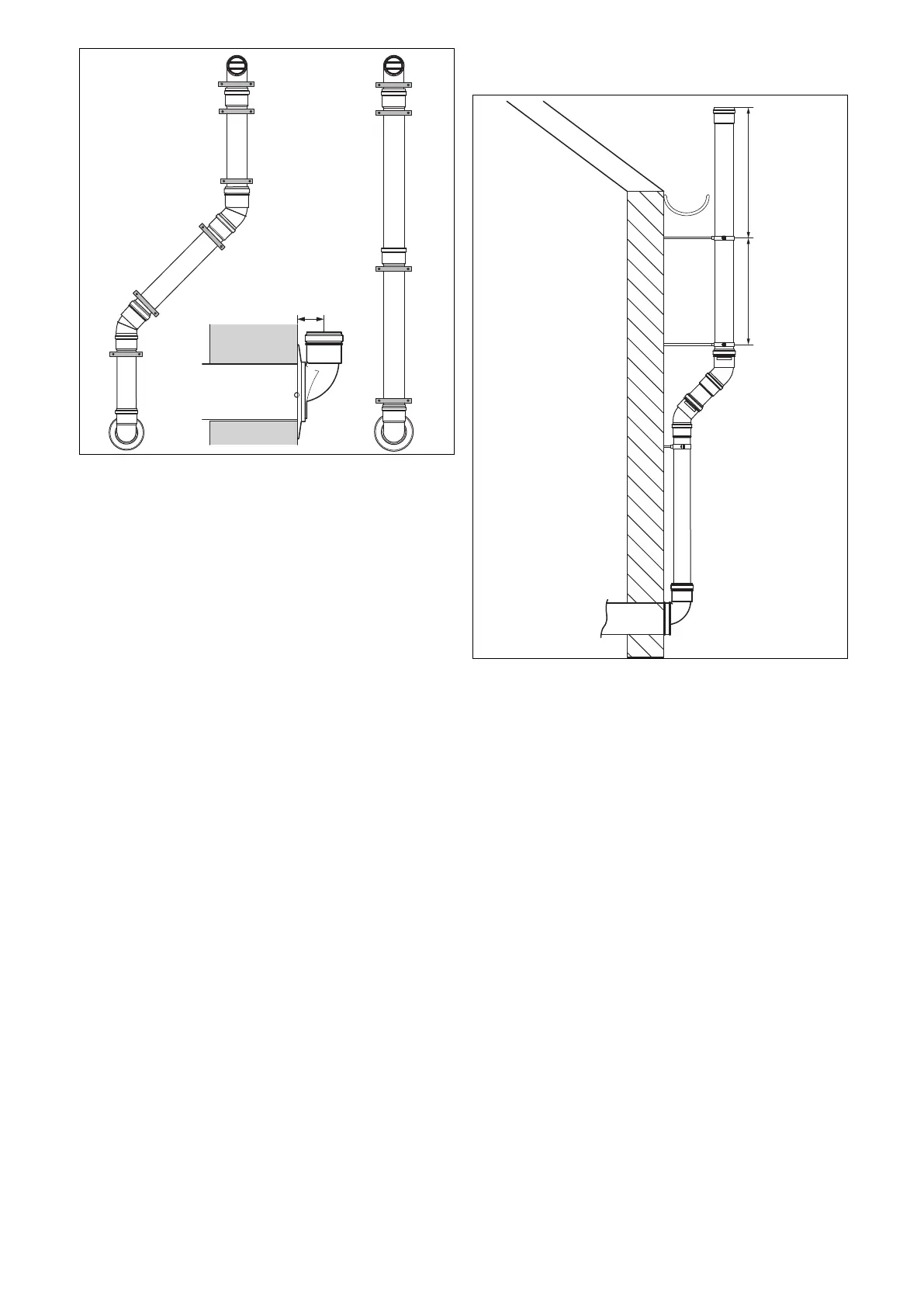

5.9.5.5 Routing extensions for the variable terminal
set around eaves
min. 400 mm min. 100 mm
When installing the variable terminal set around eaves, ad-
ditional M8 threaded rods are required for the pipe clamps.
The threaded rods are commercially available.
▶ If required, install additional 45° elbows.
▶ Install the bird-guard grille from the 87° elbow in the last
extension.
– If you are using the 87° elbow, insert the seal for the
extension.

Vaillant ecoTEC plus VU Series Specifications

General

Type	Condensing Boiler
Installation	Wall-mounted
Heating circuit	Sealed System
ErP Rating	A
Fuel	Natural Gas
Efficiency	Up to 94%
Modulation	1:6
Warranty	2-5 years (depending on model and region)
Dimensions	720 x 440 x 338 mm
