Vaillant ecoTEC pro Instructions For Installation And Servicing

Boiler specifications
10 Instructions for installation and servicing ecoTEC 839592_13
2
2.3 Installation
1
2
3
4
6
5
7
8
9
14
13
11
10
12

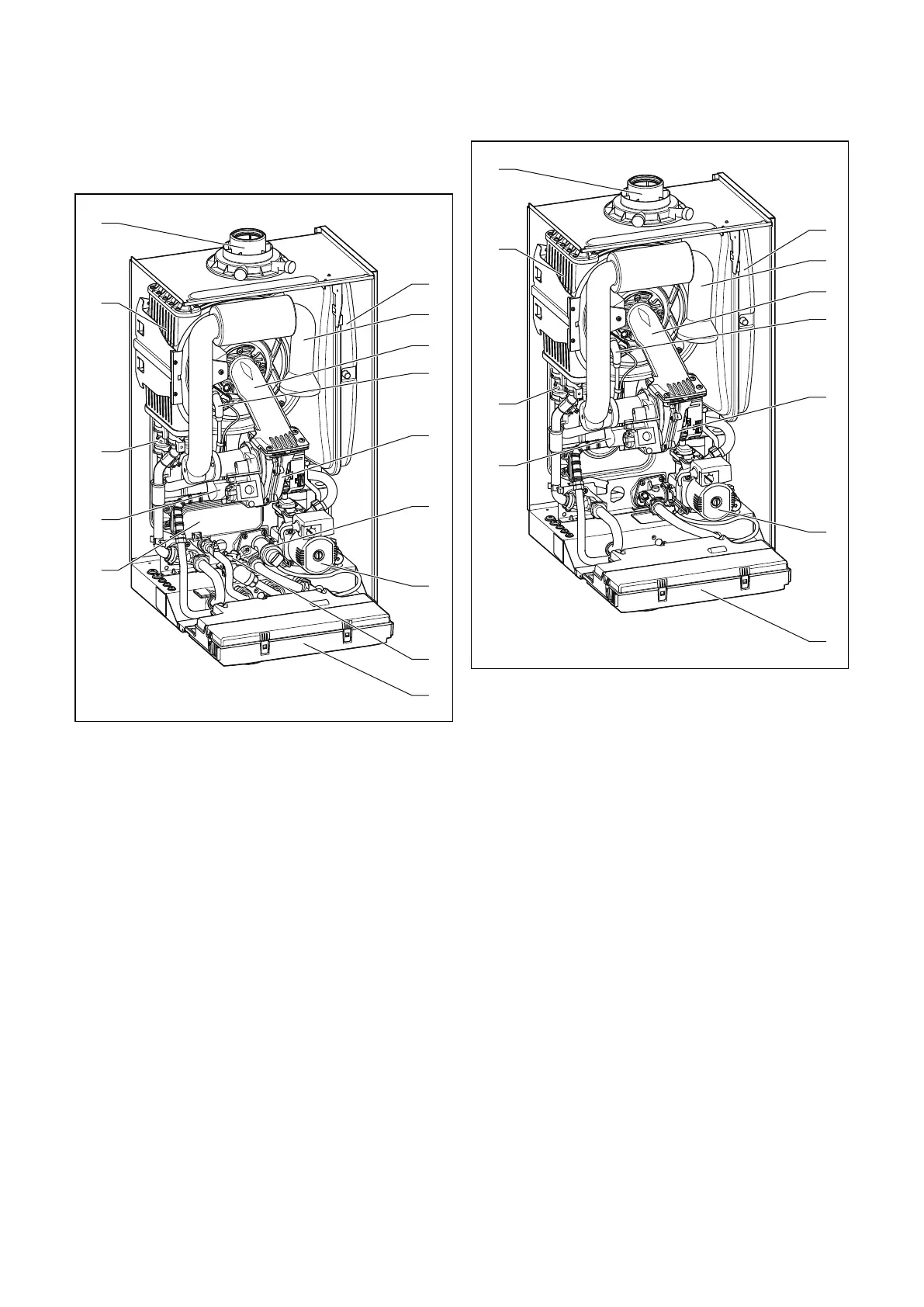

Fig. 2.2 Function elements of combination boilers
Legend:
1 Expansion vessel
2 Air intake pipe
3 Burner module
4 Ignition electrode
5 Fan
6 Diverter valve with by-pass
7 Pump
8 Aqua-Sensor
9 Electronics box
10 Hot water heat exchanger
11 Gas valve
12 Pressure sensor
13 Heat exchanger
14 Flue pipe connection
2.4 Type plate
The type plate of the Valliant ecoTEC is attached to the
bot
tom of the appliance at the factory.
1
2
3
4
5
7
9
14
13
12
11
Fig. 2.3 Function elements of system boilers
Legend:
1 Expansion vessel
2 Air intake pipe
3 Burner module
4 Ignition electrode
5 Fan
7 Pump
9 Electronics box
11 Gas valve
12 Pressure sensor
13 Heat exchanger
14 Flue pipe connection

Vaillant ecoTEC pro Specifications

General

Model	ecoTEC pro
Fuel Type	Natural Gas
Efficiency Rating	A
Dimensions (H x W x D)	720 x 440 x 338 mm
ErP Rating	A
Mounting	Wall-mounted
Type	Combination Boiler
Efficiency	89.3%
Output	24 kW
Warranty	2 years
Noise level	49 dB
