Start-up 6
0020265768_01 eloBLOCK Installation and maintenance instructions 13
– Adey MC5
– Fernox F3
– Sentinel X 300
– Sentinel X 400
Additives intended to remain permanently in the
installation
– Adey MC1+
– Fernox F1
– Fernox F2
– Sentinel X 100
–
Sentinel X 200
Additives for frost protection intended to remain
permanently in the installation
– Adey MC ZERO
– Fernox Antifreeze Alphi 11
– Sentinel X 500
▶ If you have used the above-mentioned additives, inform
the end user about the measures that are required.
▶ Inform the end user about the measures required for frost
protection.

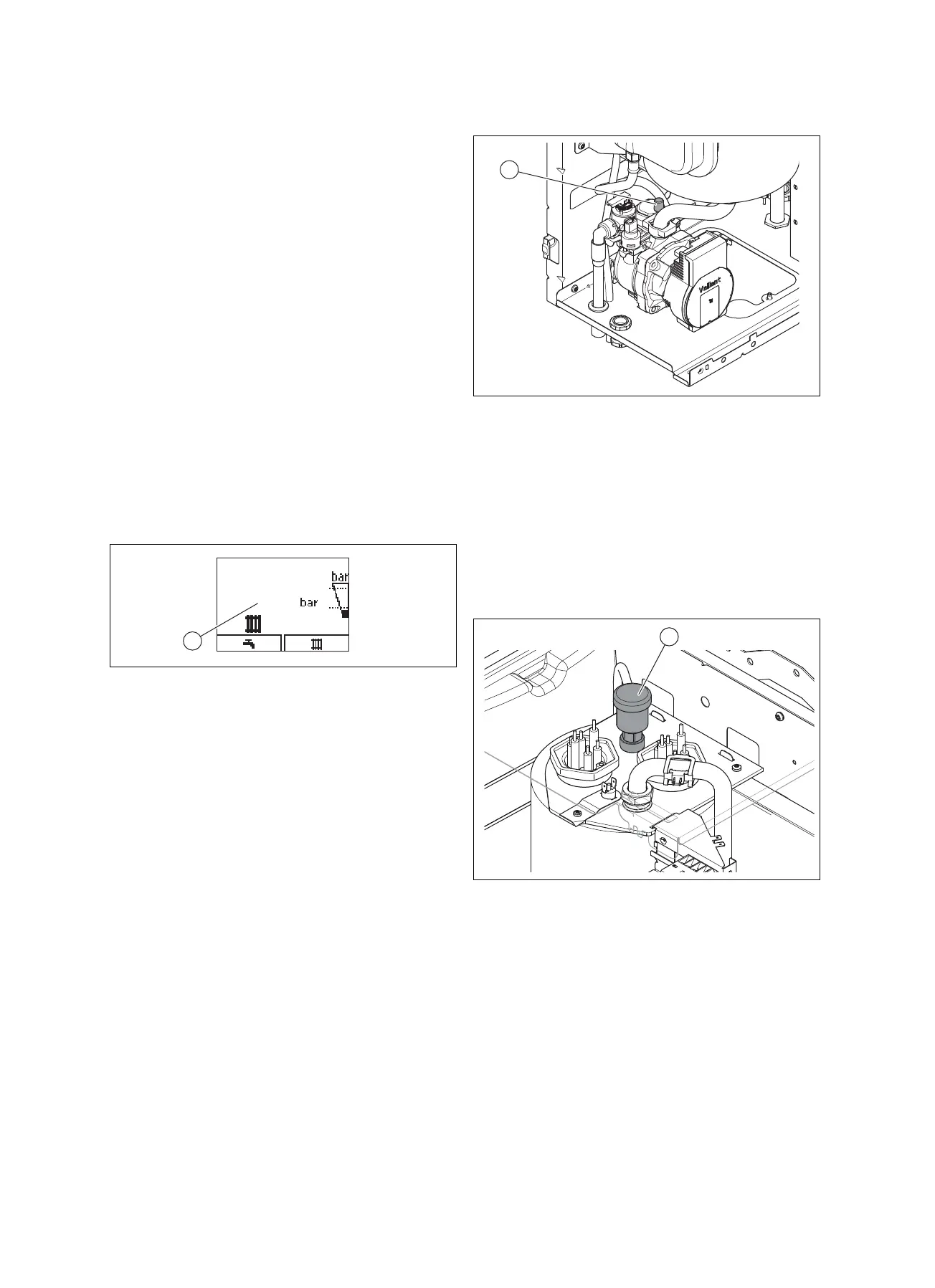

6.2 Checking the filling pressure of the heating
installation
1. Read off the filling pressure of the heating installation
on the display (1).
2. Alternatively, read off the filling pressure of the heating
installation on the manometer.
– Even if the product is switched off, you can read
off the heating installation's filling pressure on the
manometer.
3. When the heating installation is cold and the pump
is deactivated, ensure that a filling pressure of 0.1-
0.2 MPa (1.0-2.0 bar) is displayed.
– If the heating installation is to supply several
storeys, a higher filling pressure may be required.
– If the pressure falls short by 0.08 MPa (0.8 bar), a
pressure sensor signals that the pressure is low by
making the pressure display flash.
6.3 Filling and purging the heating installation
1. Undo the automatic air vent cap (1) on the pump by one
or two rotations.
– During operation, the product purges itself via the
automatic air vent.
2. Open all thermostatic valves in the heating installation.
3. Use a hose to connect the filling/draining cock on the
heating installation to a cold-water draw-off valve.
4. Slowly open the cold-water draw-off valve and the filling
tap on the heating installation and top up with water un-
til the required system pressure is shown on the mano-
meter.
5. Close the filling tap.
6. Hold a receptacle under the end of the hose that comes
from the purging valve (1).
7. Open the purging valve (1) until the boiler has been
completely purged.
8. Purge all radiators.
9. Then re-check the filling pressure of the heating install-
ation and, if required, repeat the filling procedure.
10. Close the cold-water draw-off valve and remove the
filling hose.
11. Check all connections for tightness.
