Appendix
28 Installation and maintenance instructions eloBLOCK 0020265768_01

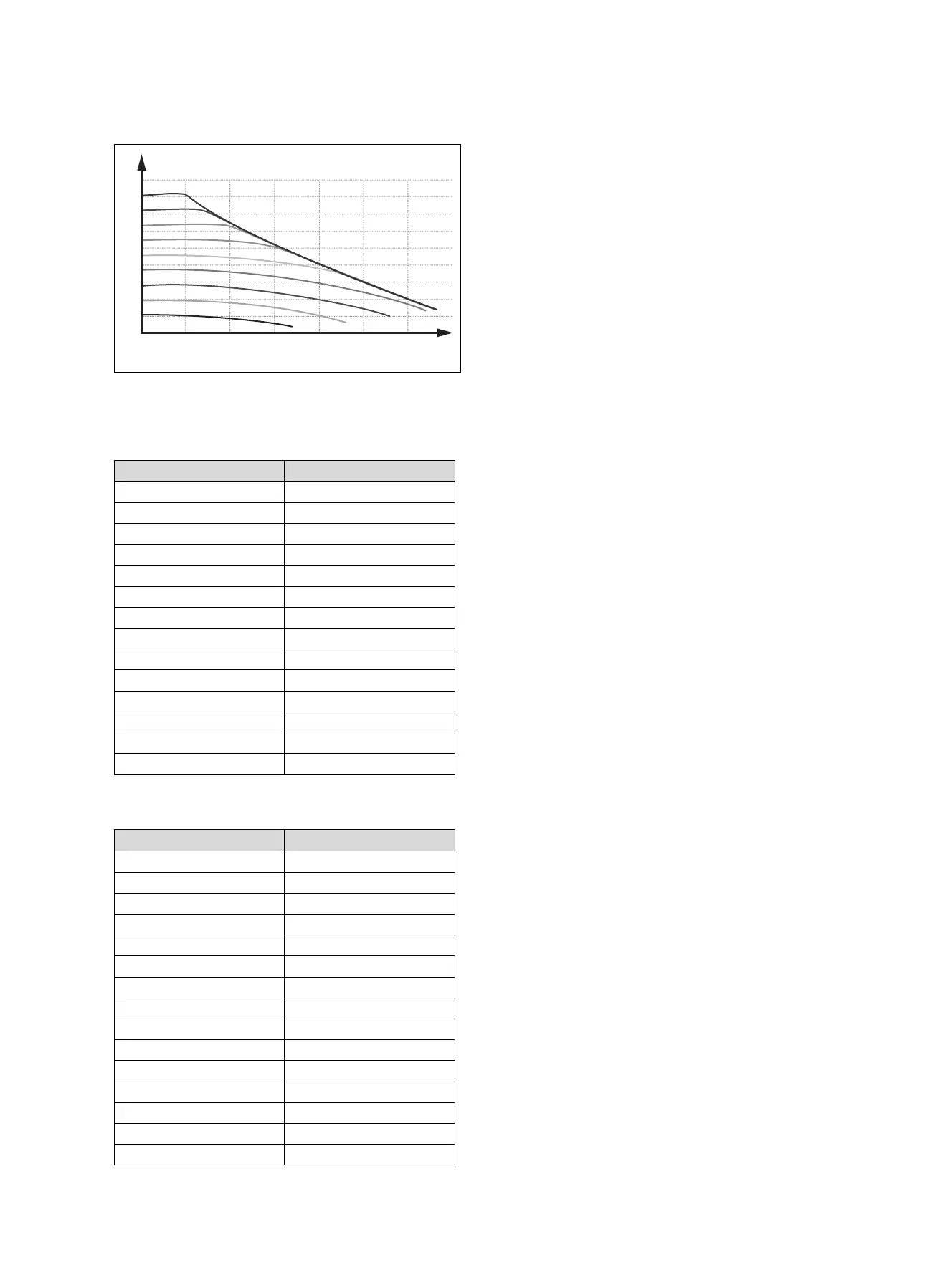

I Remaining feed head
6
7
8
9
5
4
3
2
1
0 1 1,50,5 2 2,5 3
A
B
A Remaining feed head [mCe] [98.07 mbar] B Flow rate quantity [m³/h]
J Characteristic values of the VRC DCF outdoor temperature sensor
Temperature (°C) Resistance (ohms)
-25 2167
-20 2067
-15 1976
-10 1862
-5 1745
0 1619
5 1494
10 1387
15 1246
20 1128
25 1020
30 920
35 831
40 740
K Characteristic values of internal temperature sensors
Temperature (°C) Resistance (ohms)
-40 327344
-35 237193
-30 173657
-25 128410
-20 95862
-15 72222
-10 54892
-5 42073
0 32510
5 25316
10 19862
15 15694
20 12486
25 10000
30 8060
