Vaillant turboMAX plus 2 E Series User Manual

8
OPERATION
0
I
C
o
C
o
6
32 10
758 4
1
9
VRC-VC

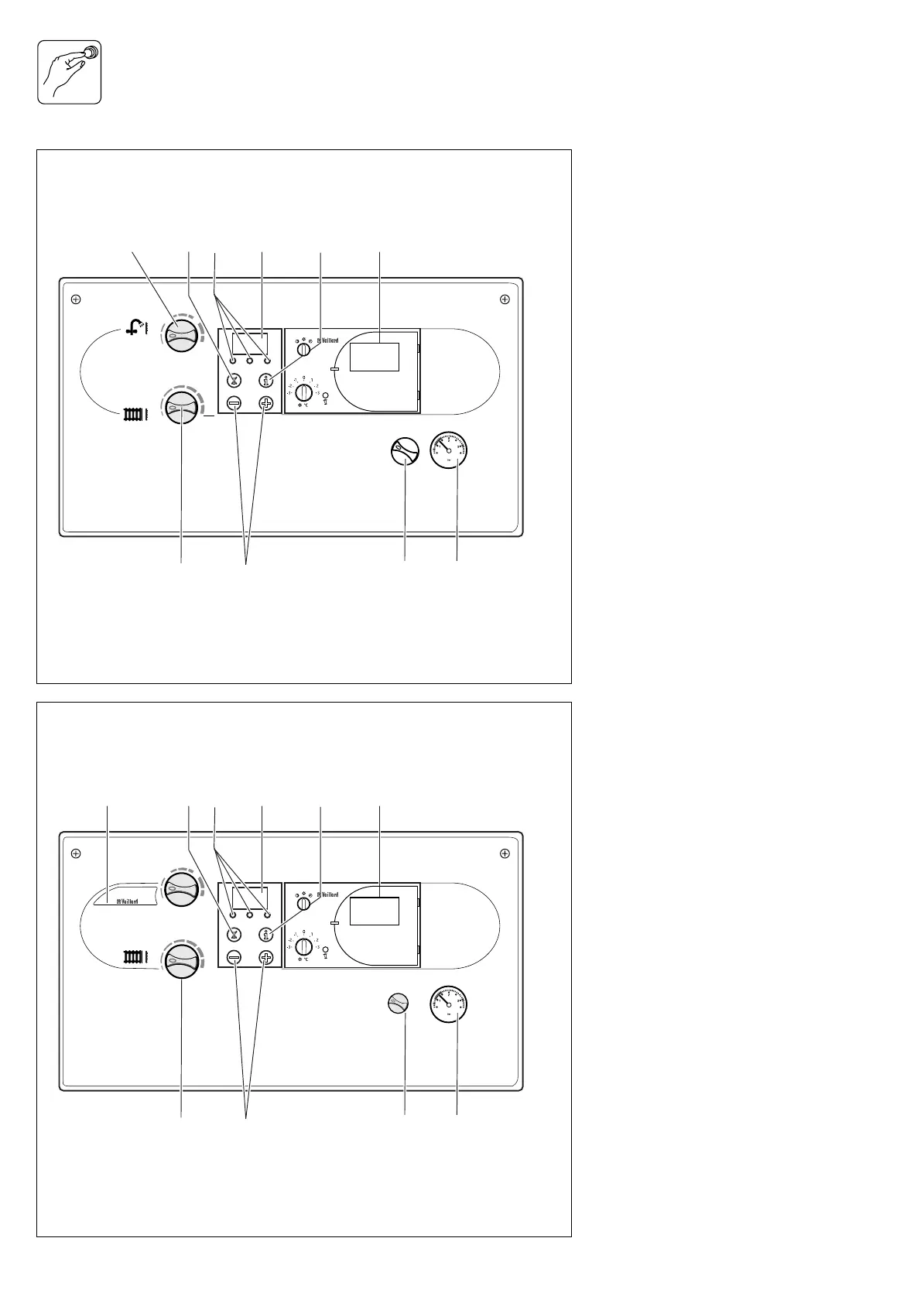

Fig. B.1a: Operating elements TURBOmax Plus
Euro B/S 073/1
0
I
C
o
6
32 9
758 4
1
VRC-VC
THERMOcompact
A
Fig. B.1b: Operating elements THERMOcompact
Euro B/S_VC_086/1GB
Overview
TURBOmax Plus
Operating controls
For access to the controls press the
upper middle of the lower front panel
and drop it down.
The following can be seen:
1 Maximum radiator temperature
control (page 13)
2 The „+“ and „-“ buttons for the
display panel
3 Main ON/OFF control (pages 10
and 15)
4 Built in control/timer module (if
fitted)
5 The „i“ information button
6 Boiler display
7 Indicator lights to display the
current operating mode
8 „Reset“ button: (see page 14)
9 Maximum hot water temperature
control and warmstart ON/OFF
control (page 11)
10 Pressure gauge displaying the
pressure in the heating system
THERMOcompact
You can identify a THERMOcompact
boiler by the sticker which is situated
at the top left hand side of the control
panel (see A, Fig. 1b)
Operating controls
For access to the controls press the
upper middle of the lower front panel
and drop it down.
The following can be seen:
1 Maximum radiator temperature
control (page 13)
2 The „+“ and „-“ buttons for the
display panel
3 Main ON/OFF control (pages 10
and 16)
4 Built in control/timer module (if
fitted)
5 The „i“ information button
6 Boiler display
7 Indicator lights to display the
current operating mode
8 „Reset“ button: (see page 14)
9 Pressure gauge displaying the
pressure in the heating system
