OPERATION
0
I
C
o
C
o
VRC-VC
1
2
3
4

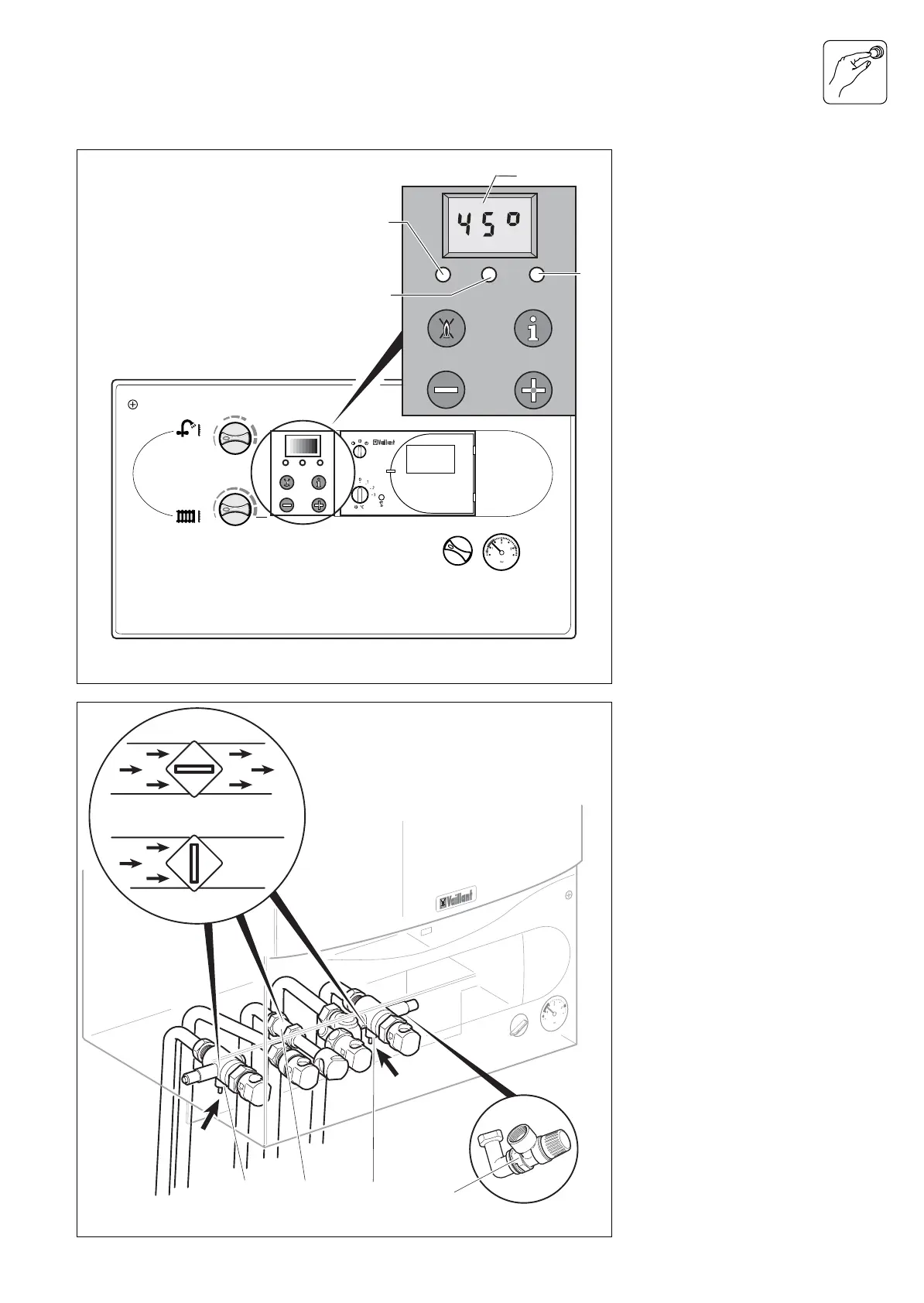

Fig. B.2: LED displays
Euro B/S 074/1
Initial checks before
turning ON
Open the service valves
Ensure the cold water service valve
is open. This can be checked by
opening a hot water tap and
ensuring water flows.
Ensure that the service valves in
the heating flow and return (2 and
1) and the gas service valve (3)
are open.
The flow, return and gas
service valves are open when
the line marking has the same
direction as the pipe.
The pressure relief valve (4) is
provided for safety reasons and
must not be interfered with.
Note:
A bottom cover is fitted to the
appliance. The service valves can
be seen through the cover.
I
0
2 3 1 4
Fig. B.3: Opening service valves
Euro B/S 009/0GB
picture shows a TURBOmax
Plus boiler
Indicator lights/boiler display
TURBOmax Plus and THERMOcompact
boilers have an advanced multi-
function boiler display (1). When the
main ON/OFF control is in the „ON“
position the display will normally
show the temperature of water in the
boiler circuit (45 °C in the example),
which confirms that the boiler is
functioning correctly.
1 In the unlikely event of a fault
developing which prevents the
boiler from operating, the display
may show a fault code (page 14).
2 Red indicator
Illuminated = Boiler has locked out
3 Yellow indicator
Illuminated = Main burner ignited
4 TURBOmax Plus
Green warmstart indicator (3)
Illuminated = Warmstart switched
ON
Not illuminated = Warmstart is
switched OFF and there is no
demand for hot water
Flashing = There is either a
demand for hot water or
warmstart
4 THERMOcompact
Green indicator (3) is illuminated
but has no function.
