Set-up 4
0020291544_01 Hydraulic Station Installation and maintenance instructions 25
4.3 Selecting the installation site
▶ The installation site must be below 2000 metres above
sea level.
▶ Select a dry room that is frost-proof throughout and in
which the maximum installation height is not exceeded
and the environmental temperature is neither above nor
below the permitted range.
– Permissible relative air humidity: 40 … 75 %
▶ Ensure that the required minimum clearances can be
maintained.
▶ The permissible height difference between the indoor unit
and outdoor unit must not be greater than 15 m.
▶ When selecting the installation site, you must take into
consideration that when the heat pump is in operation, it
will transfer vibrations to the walls.
▶ Ensure that the wall is even and offers sufficient load-
bearing capacity to bear the weight of the product.
▶ Ensure that the pipes are routed appropriately.
▶ Do not install the product above another unit that may
damage it (e.g. above a cooker that produces water va-
pour and grease) or in a room with a high level of expos-
ure to dust or in a corrosive environment.
▶ Do not install the product below a unit from which liquids
may flow.

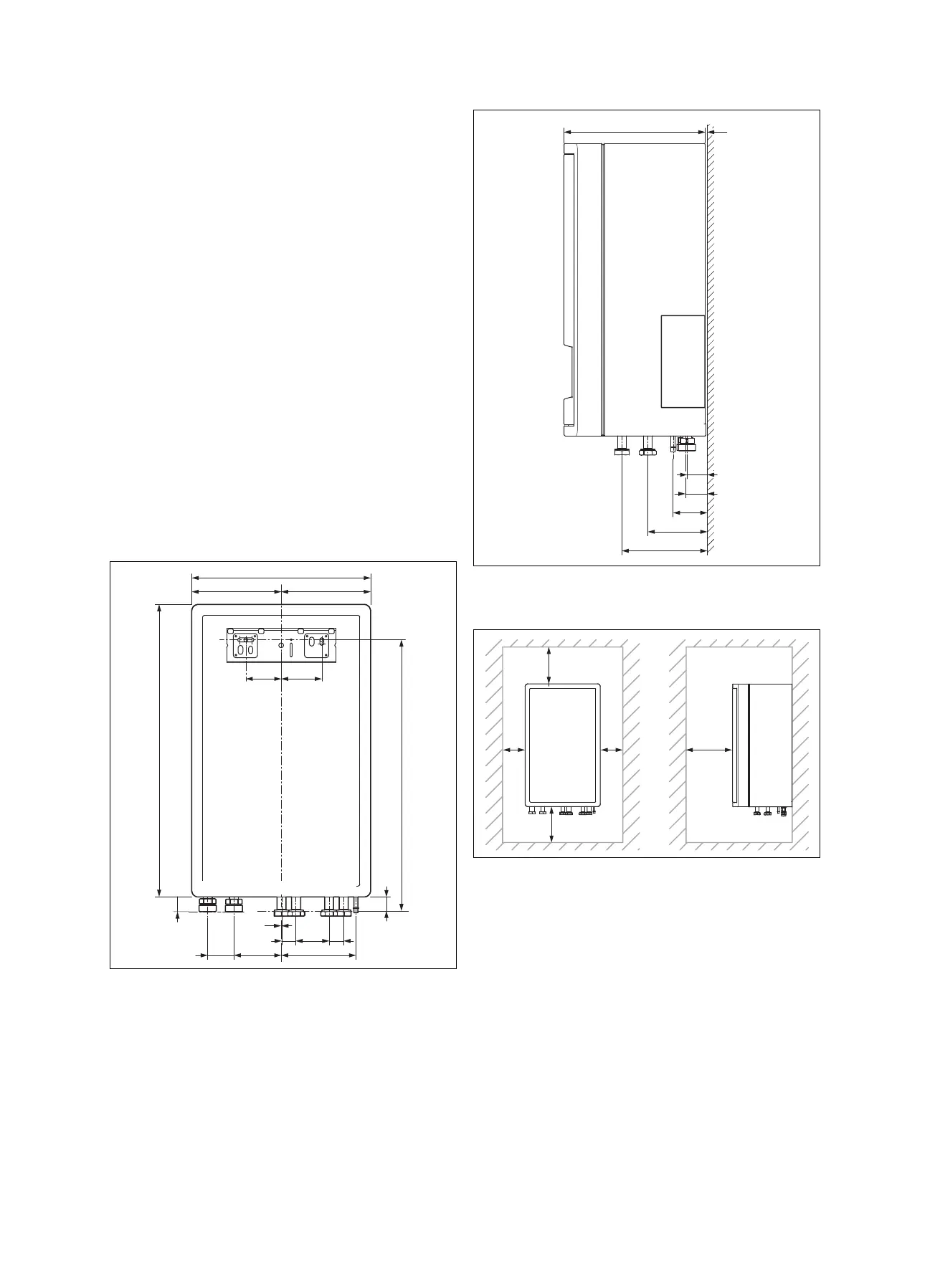

4.4 Dimensions
440
220
220
184116,264,5
720
667
368136
35
36
1
G1¼" G1¼"
G1" G1" G1" G1"
87 101
4.5 Minimum clearances and installation
clearances
A Min. 200 mm
B Min. 200 mm
C 1000 mm
D > 600 mm
▶ Provide sufficient clearance on both sides of the product
in order to facilitate access for maintenance and repair
work.
▶ When using the accessories, observe the minimum clear-
ances/installation clearances.
▶ Ensure that no highly flammable parts come into contact
with the components as these may reach temperatures of
over 80°C.
▶ Ensure that there is a minimum clearance between the
highly flammable parts and the hot components.
