Vaillant VSMART Installation And Maintenance Instructions

4 Installation
8 Installation and maintenance instructions vSMART 0020212888_01
Number Description
1
Enclosed fastening material:
– 4 x rawl plugs
– 4 x screws

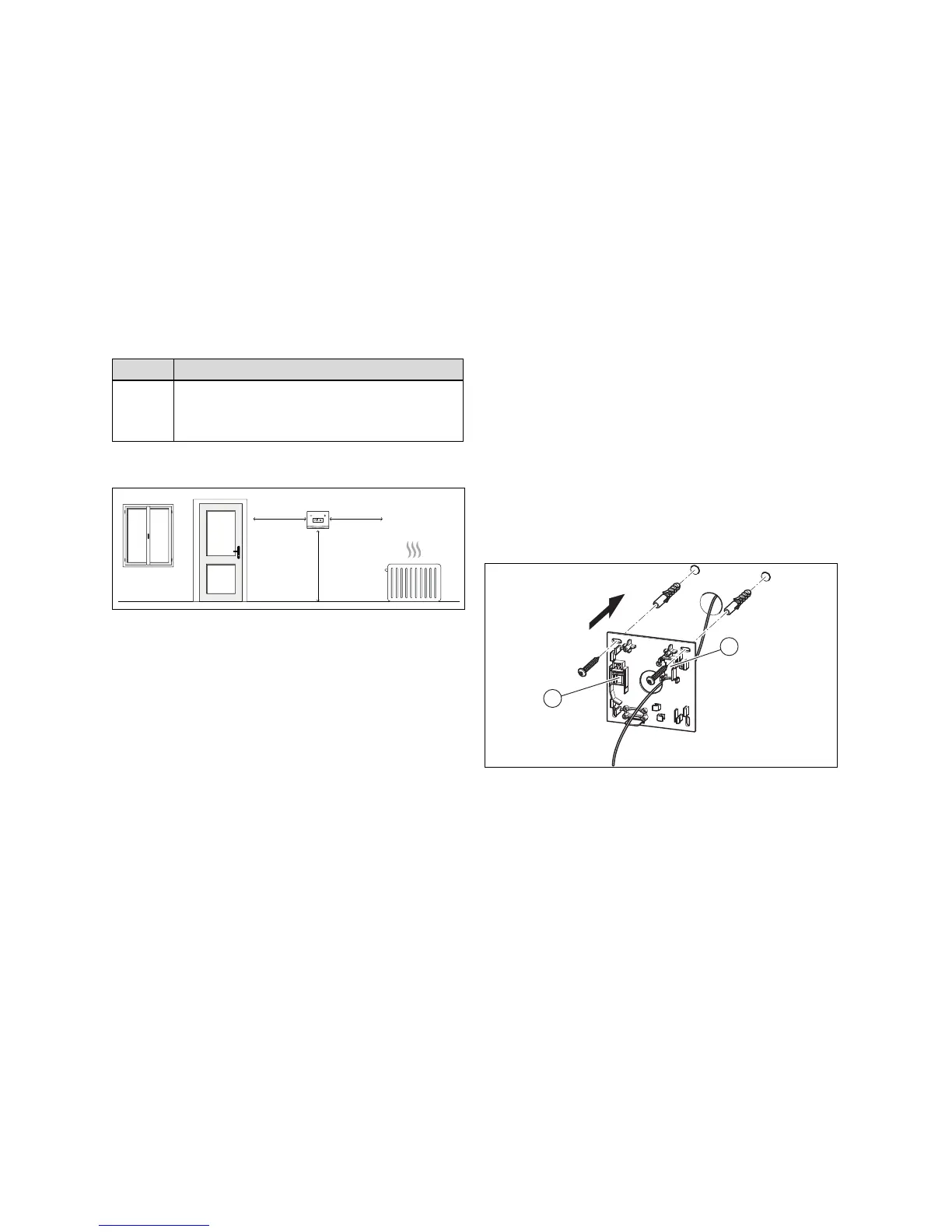

4.2 Minimum clearances
> 1 m 1 m
1.5 m
4.3 Observing the requirements for the
installation site
Communication unit
▶ Install the communication unit at a suitable position on
the wall so that the WLAN RF connection and the RF
connection to the thermostat are guaranteed.
▶ Install the communication unit close to a plug socket for
the power supply.
▶ Position the communication unit in such a way that the
communication unit can be connected to the boiler via an
eBUS line.
Thermostat
▶ Choose a location for the thermostat that will allow an RF
connection to be established with the communication unit.
▶ Position the thermostat in such a way that the room
temperature can be recorded without any problems.
You must observe the minimum clearances for this
(→ Page 8).
4.4 Installing the communication unit
4.4.1 Installing the communication unit's wall
socket
2
1
1. Remove the wall socket from the rear of the communic-
ation unit.
2. Position the wall socket at a suitable location on the wall
and take the cable duct for the eBUS line into consider-
ation.

Vaillant VSMART Specifications

General

Type	Smart Thermostat
Connectivity	Wi-Fi
Weather Compensation	Yes
Voice Control	Amazon Alexa, Google Assistant
Languages	Multiple languages supported
Compatibility	Vaillant boilers
Control	manual control
Features	Schedule programming
Power Source	Battery-powered
Display	LCD
Energy Efficiency Features	Optimized start
Installation	Professional installation recommended
