User's Guide _______________________________________________________________________
8 ____________________________________________________________________ M210636EN-B
0410-169

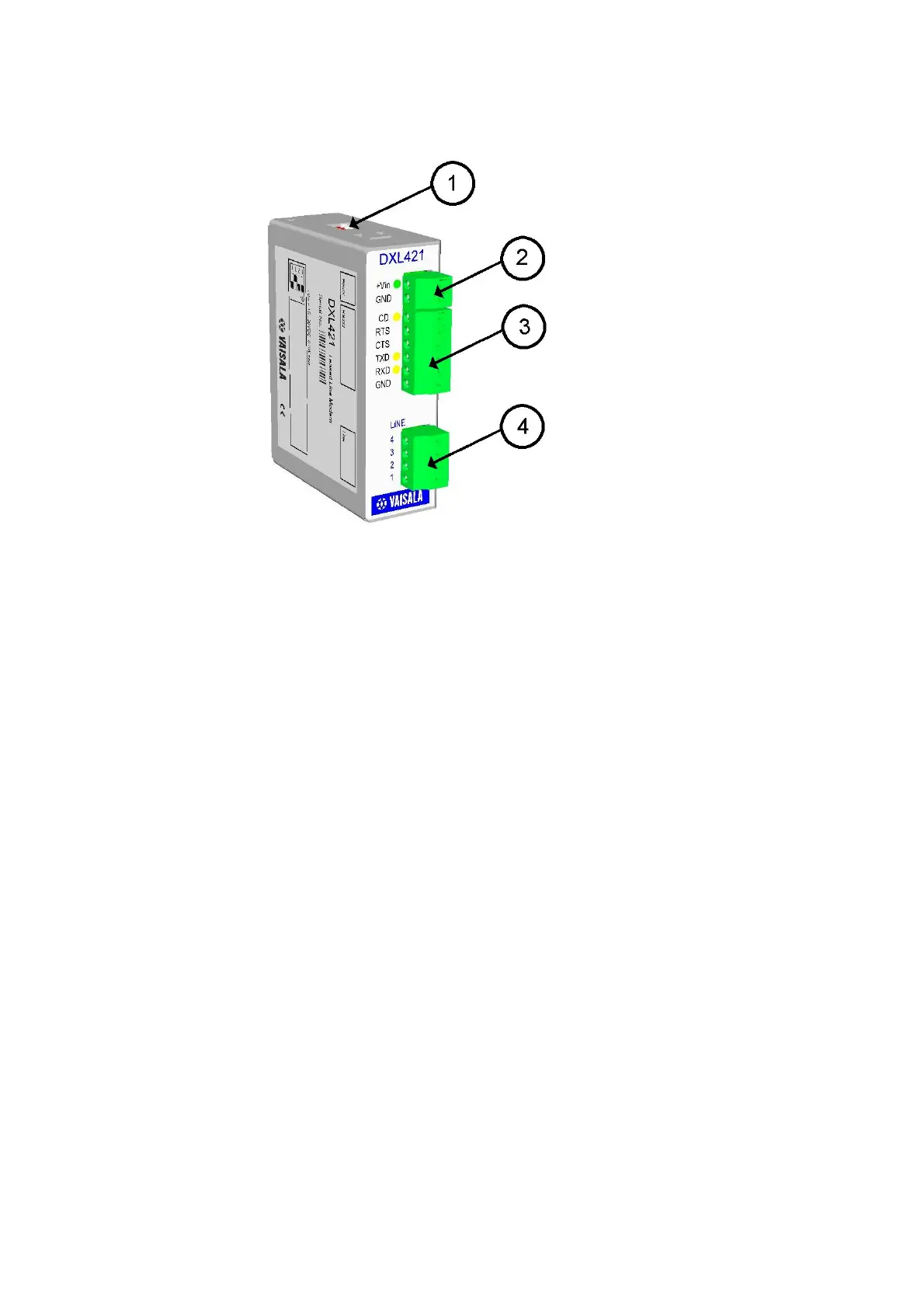

Figure 1 DXL421 Leased Line Modem
The following numbers refer to Figure 1 above:
1 = DIL switch
2 = Power input
3 = RS-232 interface
4 = Leased line interface
