3.2 Mounting Wind Sensors on Cross Arm
• 2-mm Allen key
• Compass
1. Fit the cable plug through the mounting flange at the end of the cross arm, and connect
the cable to the sensor.

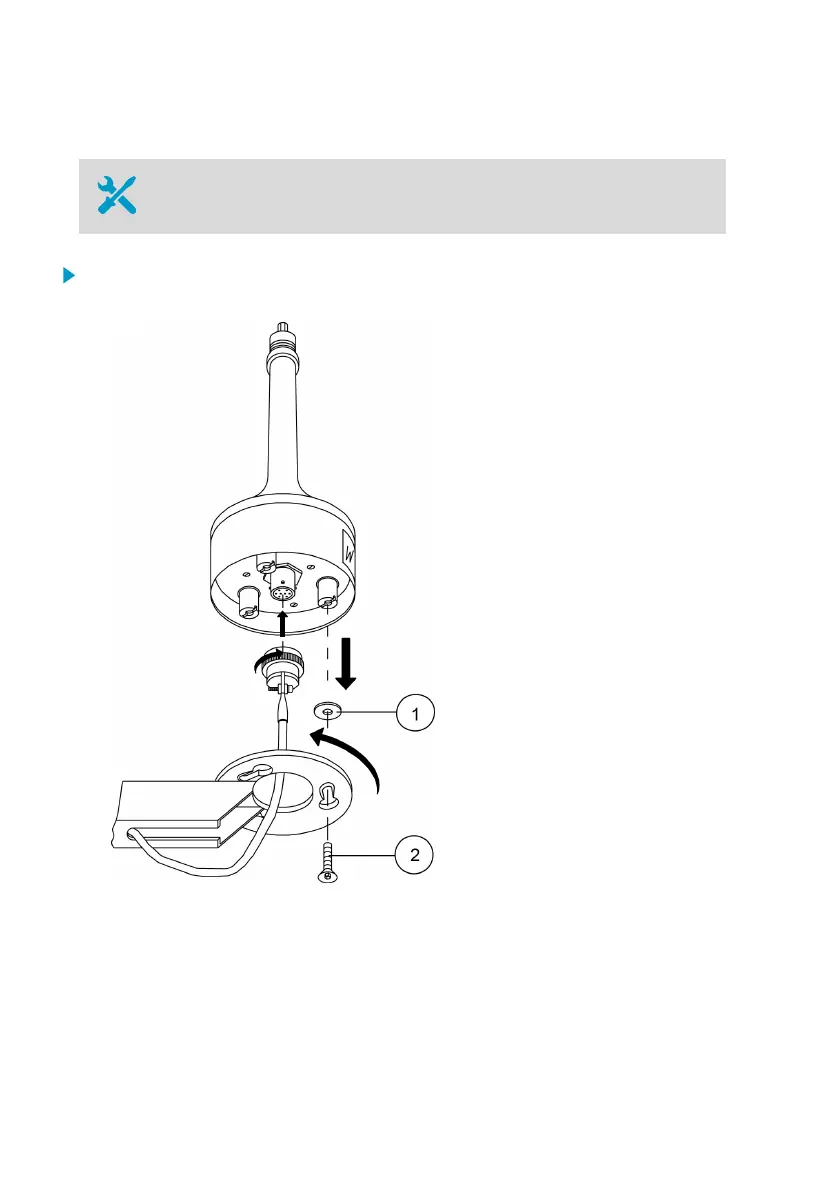

1 Plastic washer
2 Hex screw
2. Insert the plastic washers between the flange and the sensor.
3. Face the sensor product label South, if possible, and mount the sensor to the flange by
twisting.
4. Tighten the screws.
5. Mount the assembly and tighten the fixing screw.
