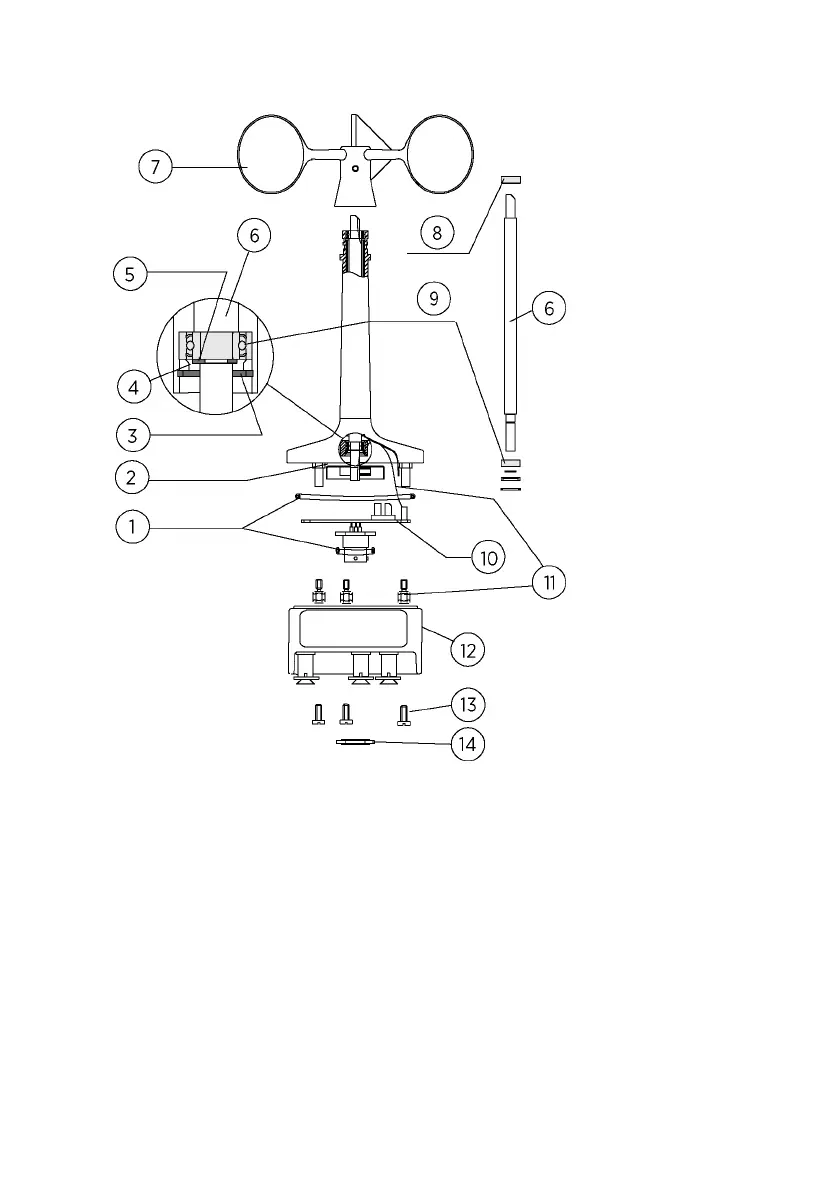

1 O-ring (2 pcs)
2 Chopper disc
3 External retaining ring, body
4 Spacer ring
5 Internal retaining ring, shaft
6 Shaft and upper body assembly
7 Cup wheel assembly
8 Ball bearings
9 Ball bearings
10 Printed circuit board (PCB)
11 Spacer (3 pcs)
12 Lower body
13 M6x16 DIN7991 (3 pcs)
14 Hex nut of the connector
