Start pressure
Varying start pressures has impact on the PST, this is shown in Figure 10. The breakaway time is
increasing a lot along with the start pressure in the actuator. The PST return time also have a high
dependence on the start pressure.

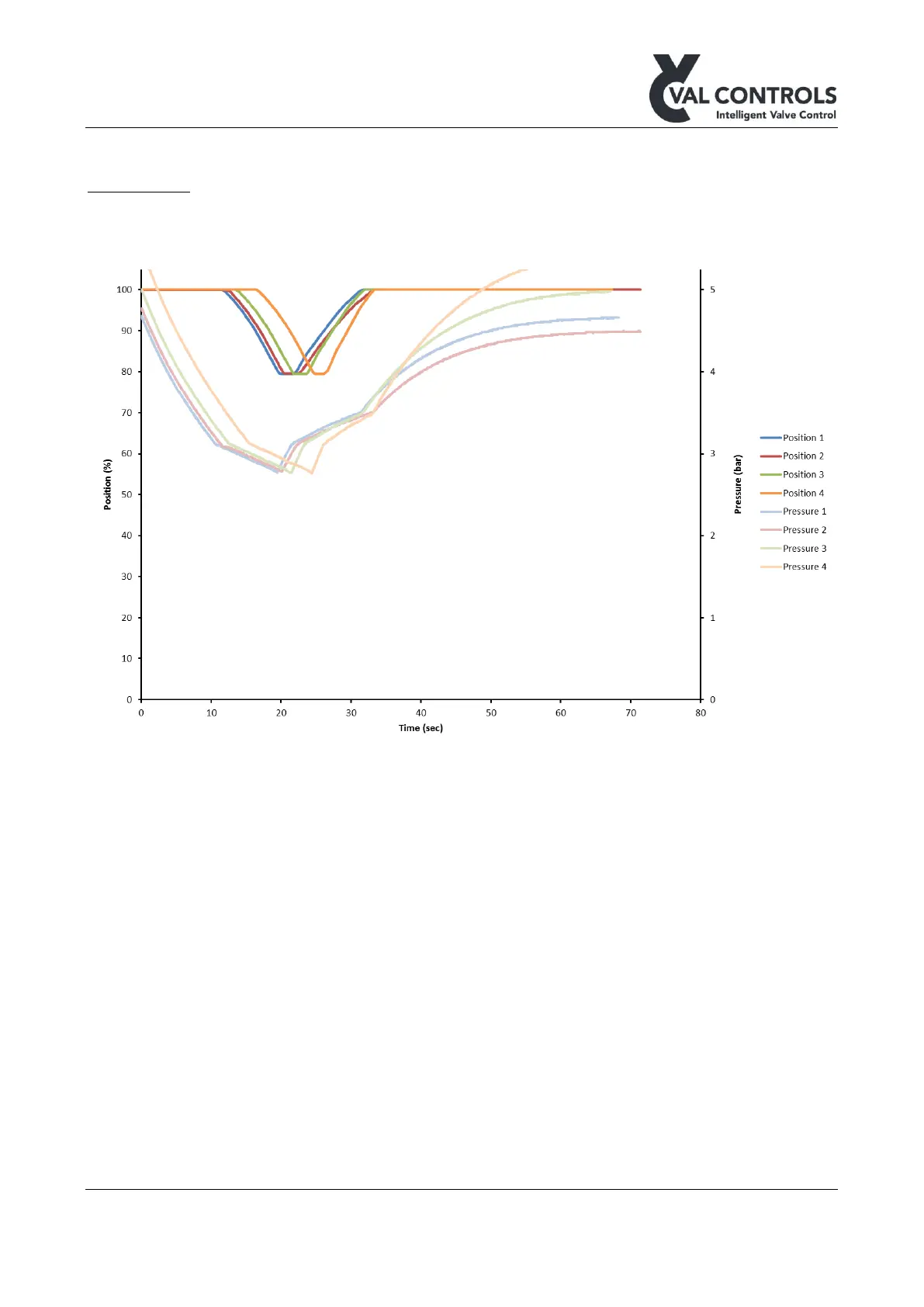

Figure 10: Four PSTs with varying start pressures
