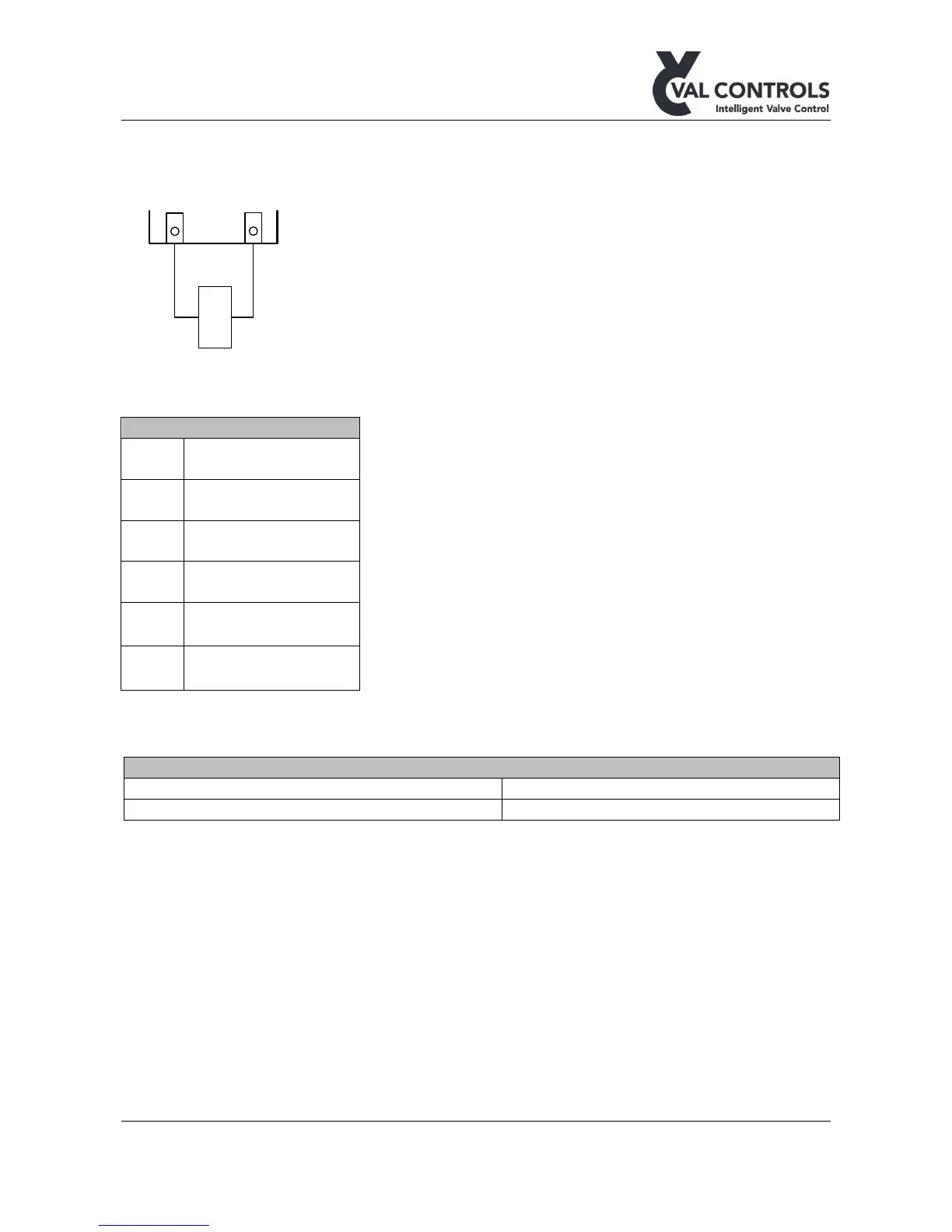

3.5 Digital output – DO1, DO2, DO3, DO4, DO5, DO6
24 VDC digital outputs.
DO
+
-
+ -
3.5.1 Terminals
DO1
27 (+)
28 (-)
DO2
30 (+)
31 (-)
DO3
33 (+)
34 (-)
DO4
36 (+)
37 (-)
DO5
47 (+)
48 (-)
DO6
49 (+)
50 (-)
3.5.2 Electrical specifications
DO – Digital outputs
Max load per digital output
up to 48W at 24VDC
Max load total
up to 192W at 24VDC
