Val Controls IHP24-F Hardware Manual

DHW-UM-005
Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600
vc@valcontrols.com • www.valcontrols.com
Revision: 6
10/15

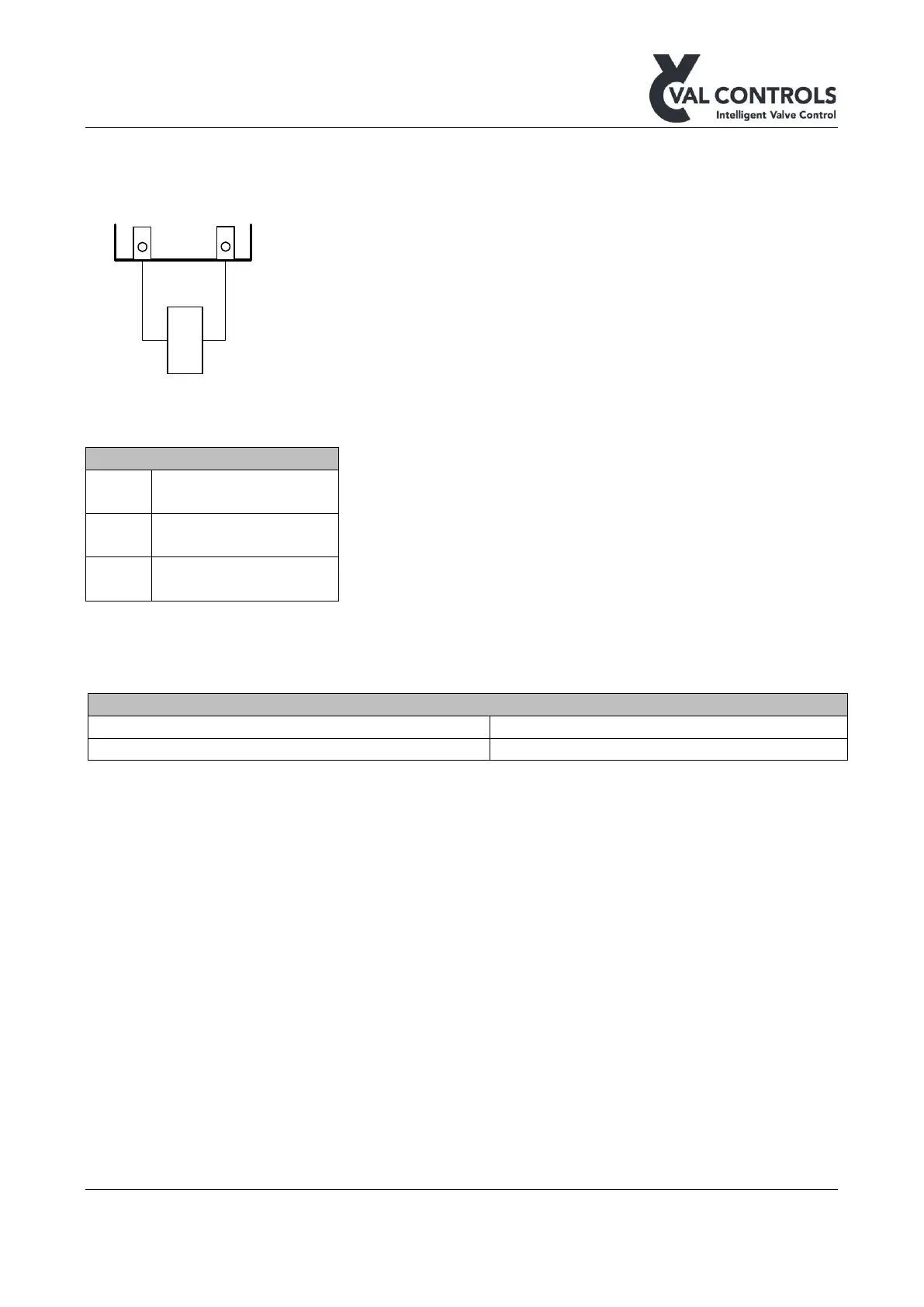

3.4 Digital output – DO1, DO2, DO3
24 VDC digital outputs.
DO
+
-
+ -
3.4.1 Terminals
DO1
27 (+)
28 (-)
DO2
30 (+)
31 (-)
DO3
33: (+)
34: (-)
All DOs (-) are common with PS2 (-)
3.4.2 Electrical specifications
DO – Digital outputs
Max load per digital output
up to 48W at 24VDC
Max load total
up to 144W at 24VDC
