Val Controls IHP24-F Hardware Manual

DHW-UM-005
Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600
vc@valcontrols.com • www.valcontrols.com
Revision: 6
9/15
3.3.3 Position transmitter
The Ixx24-F uses an internal position transmitter and the transmitter is always connected to AI1.
A
B
PROGRAMMABLE
ENCODER

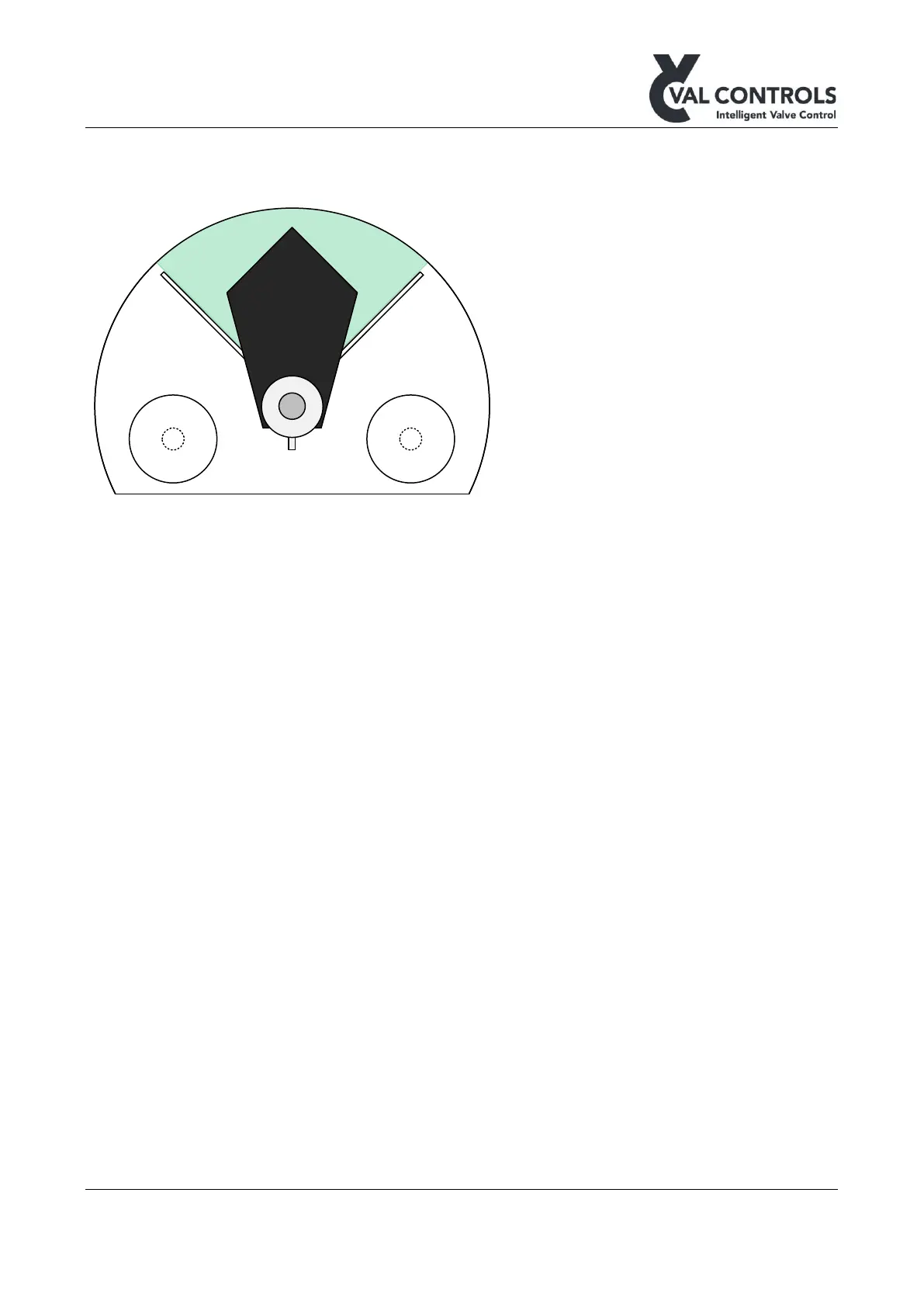

After mounting the Ixx24-F on the actuator make sure the arrow on the position transmitter is
within the green area. See markings on drawing.
Loosen the set screw on the shaft and adjust the arrow so that it moves within the marked area.
