16

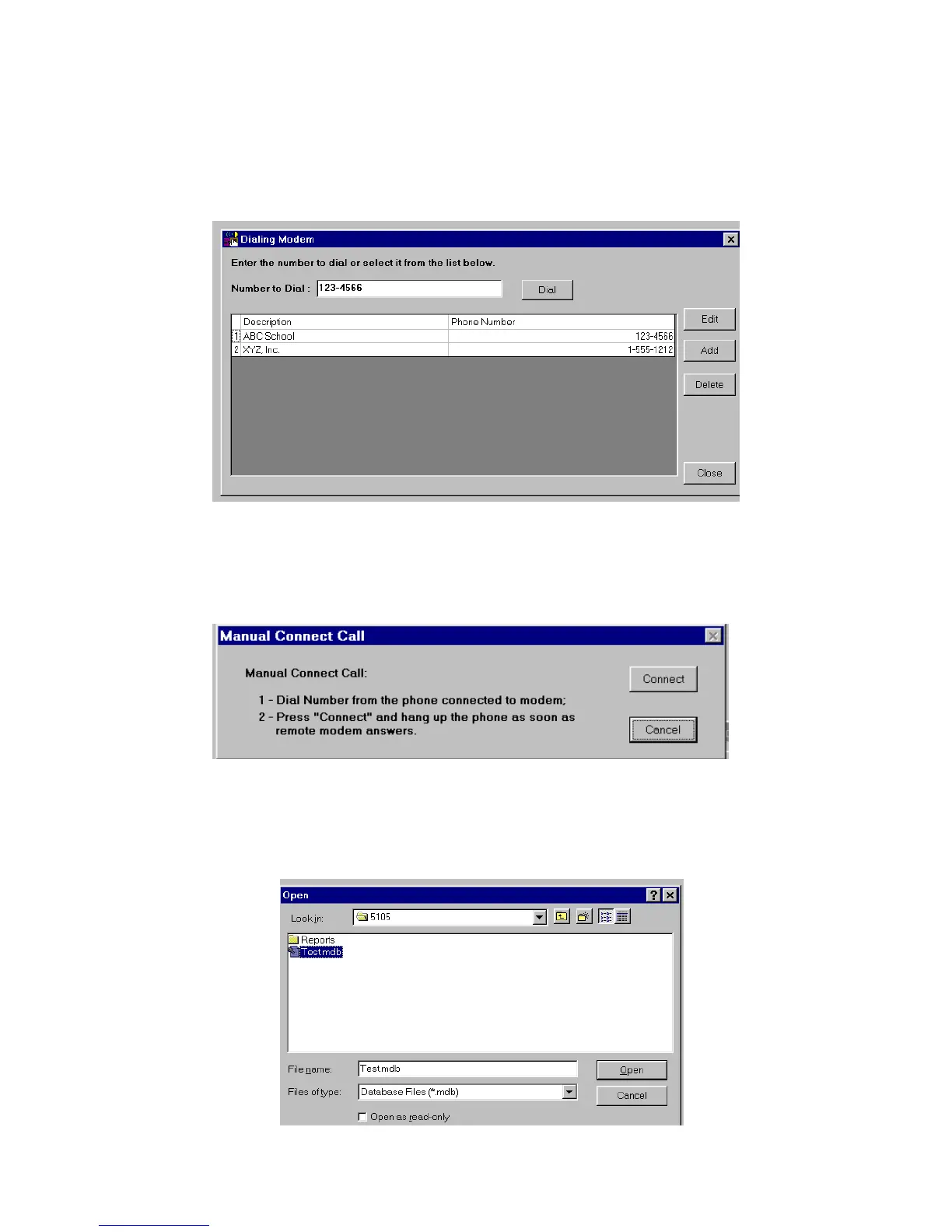

Once the desired phone number is displayed in the Number to Dial field, click on the Dial button. Messages
should be displayed stating, "Initializing", "Dialing" and "Modem Connection Successful". Click on OK.
If modem fails to connect, verify modem was set up properly during system installation. Refer to section titled,
"Setup of the V-2924A Modem," page 18.
Manual Connect
From the Programming Tool, select File, Modem and Manual Connect. Follow the instructions as described
on the screen. Messages should be displayed stating, "Initializing", "Dialing" and "Modem Connection
Successful". Click on OK.
Send data to V-2924A
From the main menu, select Send Data to V-2924. If a file is open, that file will be sent to the V-2924A System.
If no file is open when Send Data to V-2924 is selected, the screen appears to allow selection of the data file to
be opened and downloaded to the V-2924A. Highlight the desired file and click on OK.
