The patient is instructed to keep their eyes closed for phase 2.
To proceed with the next phase, press the green activation button on the system. A countdown

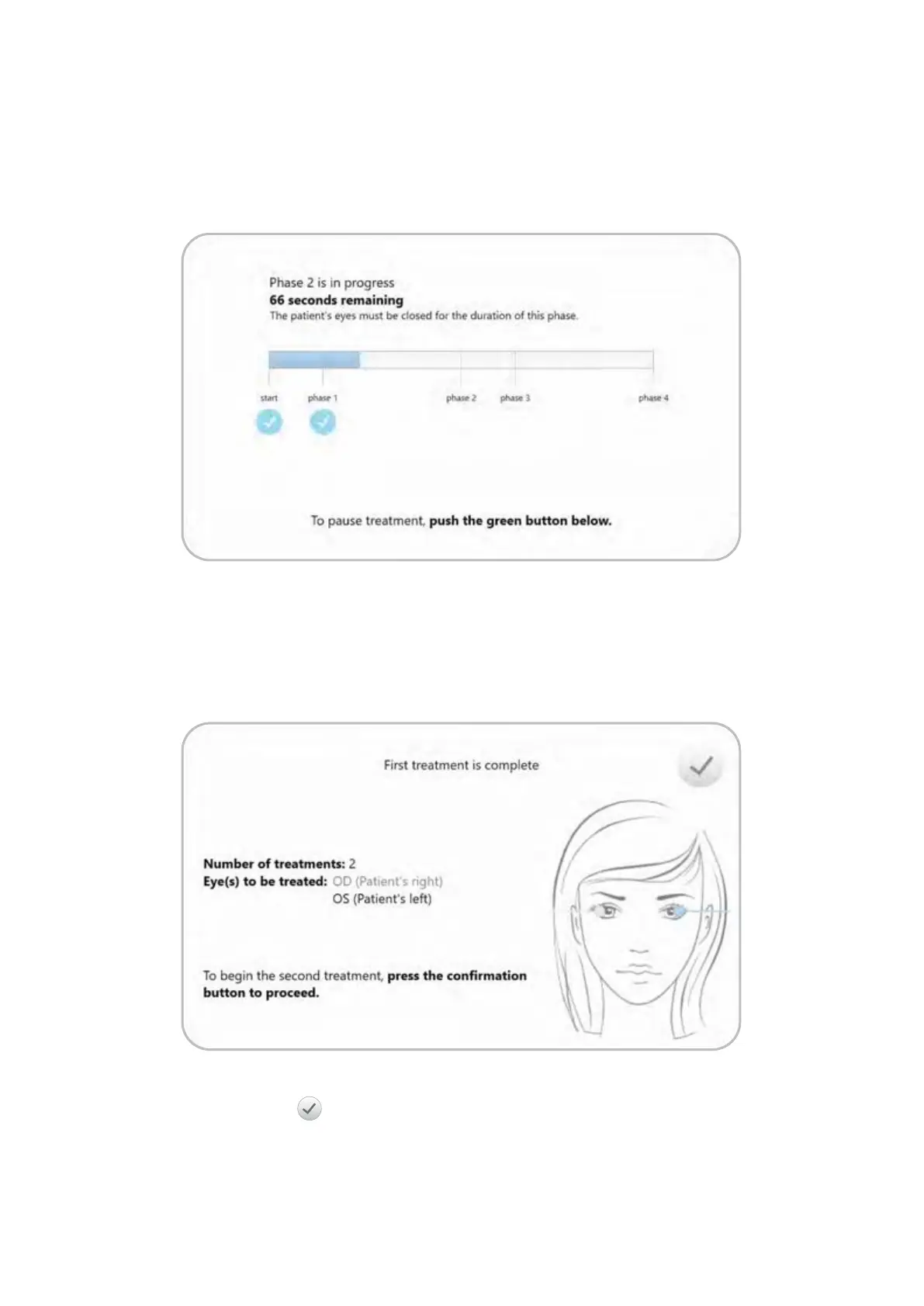

timer is displayed while the progress bar fills from le to right (Figure 15).
The next steps to complete phases 3 and 4 are identical to the steps detailed for phases 1 and 2.
If the patient’s second eye is to be treated, the system will display the following screen aer the
4 phases of treatment for the first eye are completed (Figure 16).
Touching the “Confirmation” button will return to the Beam Alignment Procedure for treatment
of the second eye.
FIGURE 15
FIGURE 16
14
