Safety thermostat:
The positive safety thermostat is located in the box of the heating element housing at the back of the deep fryer.
The red reset button [15] projects from under the box.
This is triggered:
∗ when the oil temperature exceeds 230
o
C
∗ when the capillary tube is damaged
∗ when the temperature falls below zero
o
C
or in the case of incorrect use:
∗ when the appliance is heated without oil or the
level is too low
∗ when the appliance is drained without releasing
the switch
∗ when the heating element is not in the correct
position at the bottom of the pan
∗ when the block of solid fat is melted directly on
the heating element
To reset:
- Disconnect the deep fryer (switch [1] n position “ 0 ”)
- Leave the deep fryer to cool down (to accelerate cooling, lift the heating element. Until the probe
[13] of the thermostat fixed to the heating element cools down, you cannot reset the safety thermo-
stat.
- Push the red button [15] (you will hear a “ click ” when it engages)
Safety switch:
As soon as the heating element is lifted more than 5 mm, the safety switch is actuated and cuts off the power.
Check that the heating element box is located properly on the edge of the tank.
The 2 pins [14] on the body must penetrate in the switchbox.

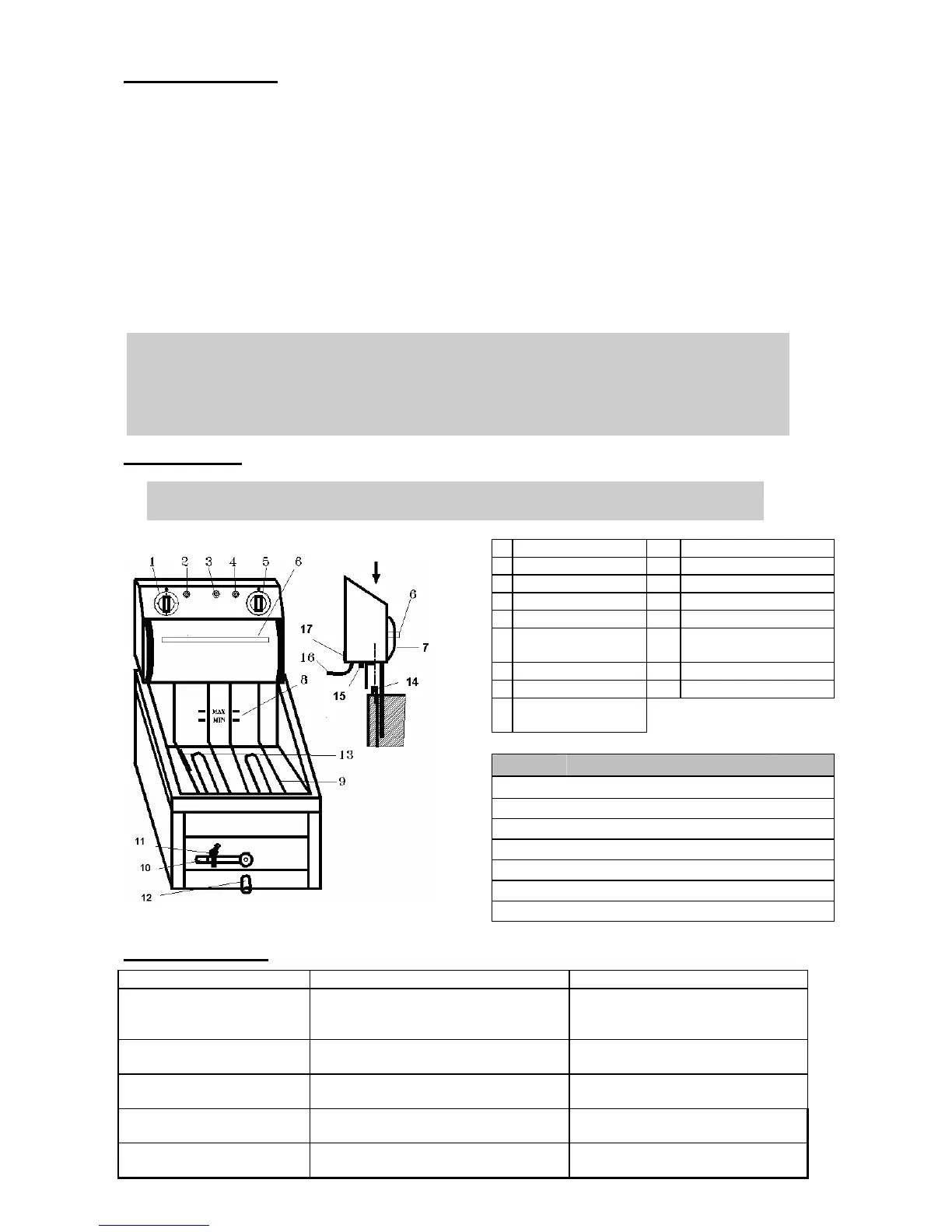

1 Switch 10 Valve
2 White lamp 11 Drain valve stop
3 Yellow lamp 12 Oil outlet
4 Green lamp 13 Thermostat probe
5 Thermostat 14 Pins
6 Fixing bar for bas-
ket
15 Red button safety
thermostat
7 Handle 16 Connecting lead 1,4m
8 Oil level marks 17 Rating plate
9 Heating element
coil
Cooking chart
Temp
o
C Foods Minutes
190
o
C
Frozen chips
3 (1+1)
160
o
C
Blanching raw chips
4 - 6
190
o
C
Cooking blanched chips
2 - 3
170
o
C
Breaded meats
3
170
o
C
Frozen chicken legs
6 - 8
180
o
C
Fish
2 - 4
Troubleshooting:
Faults Probable cause Solutions
Deep fryer does not heat up
∗ No power
∗
Safety thermostat has triggered
∗
Check fuses, plug and socket
carefully
∗
Reset by pressing the red button
Deep fryer does not get hot
enough
∗
One phase missing in power supply
∗
Faulty element
∗
Check fuses
∗
Call After-Sales Service
Pilot lamp does not come
on or flashes
∗
Faulty bulb
∗
One phase missing in power supply
∗
Change lamp
∗
Check fuses
Pilot lamps are on but the
deep fryer does not heat up
∗
Faulty thermostat or heating ele-
ment
∗
Call After-Sales Service
Fuses blow on switching on
∗
Moisture or faulty insulation in the
electric circuit
∗
Call After-Sales Service
