Spare parts:
Only use original spare parts. When ordering spare parts, please quote the following in addition to the number from the
list below
You will save time and therefore additional costs
You will find this information on the first page of this manual
Description
BB
7
1N
240
BB
10
1N
240
BB
10
3N
415
BB
55
1N
240
BB
13
3N
415
Item No Drwg code Feature Man'r
White lamp 1 1 1 2 1 6324 H1,H2 250 V Signalux
Yellow lamp 1 1 1 2 1 6325 H31,H4 250 V Signalux
Green lamp 1 1 1 2 1 6326 H5
Pilot lamp resistor 1 0742 R20 120K, 2W Philips
Switch 2P 1 2 2693-01 S1, S2 12 A, 250 V EGO
Switch 3P 46x46 4x10A screw connection 1 1 1 0719 S1 10A, 400V EGO
Thermostat 3P probe 6x90/130 1 1 1 2 1 3201-02 S3 16 (4) A 400 V~ EGO
Positive safety thermostat probe ø4 mm 1 1 1 2 1 0705-04 S7,S8 20 (4) A 400 V~ EGO
Safety switch 1P 1 2 2 2 2 5172-02 S5,S6 16A/250V Marquardt
Connector nylon 16EDS 3 3 5 6 5 3260
XT1, XT2
6 mm2 AWAG
Sundry
Button for switch 0-1-0-1 1 1 1 2 1 5166 Diam. 50 EGO
Button for thermostat 120-190 1 1 1 2 1 5168 Diam. 50 EGO
Oil cock BB 1 1 1 2 1 5137 1/2" REGLON
Black handle for box 2 2 2 2 2 5134 LANKER
Heating element
Heating element BB 1 2 2 5180 R1,R2 240 V 3120 W IRCA
Heating element BB 3 3 5183 R1,R2,R3 230 V 2000 W IRCA
Baskets, filter
Basket BB 7 240 x 280 x H100 mm 1 5146
Basket BB 10 340 x 280 x H100 mm 1 1 5147
Basket BB 55 160 x 280 x H100 mm (2) (2) 2 5145 Option BB13: 2 small baskets 5145
Basket BB 13 440 x 280 x H100 mm 1 5148 + 5146
Microfilter + telescopic support 8815 Option
Spare filter for microfilter 8823 Option

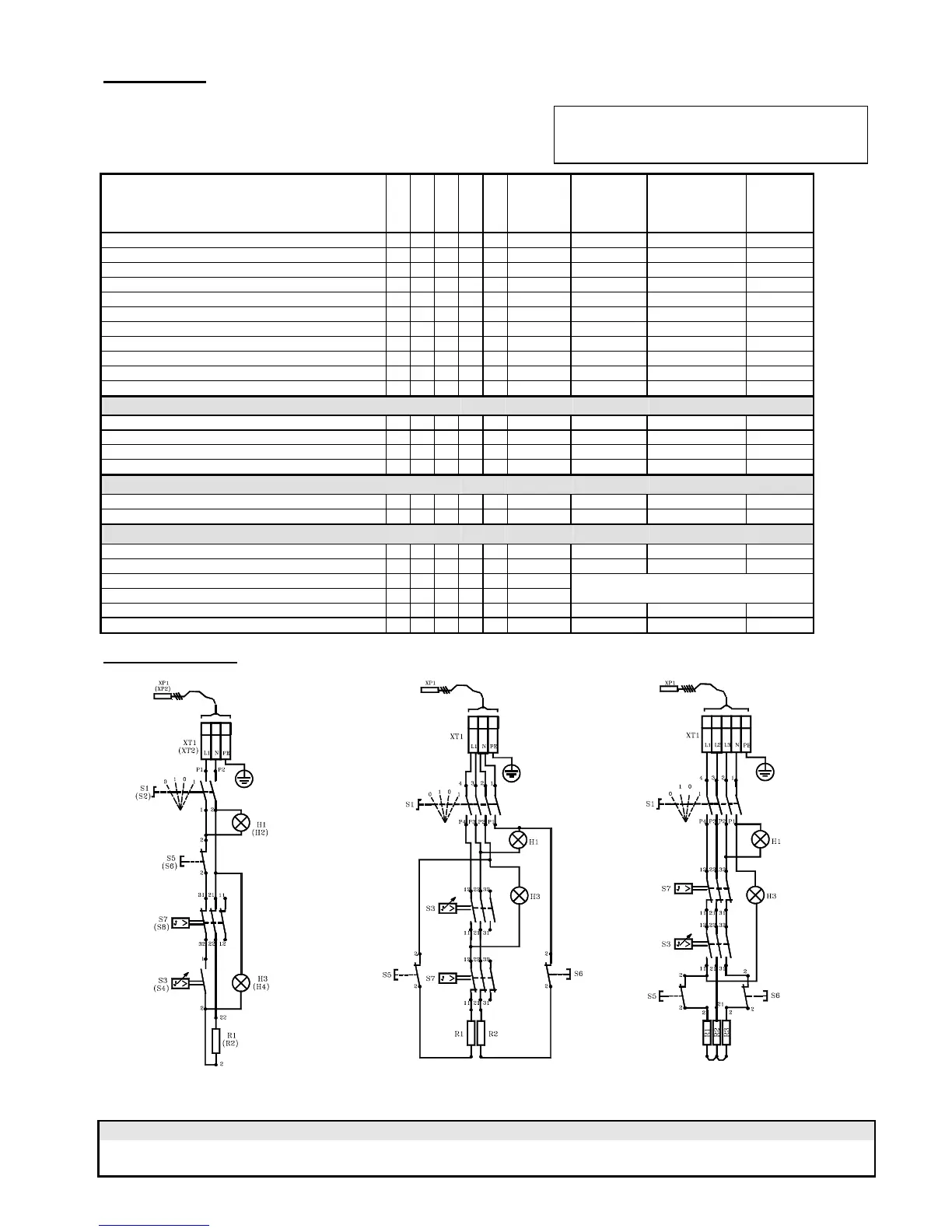

Wiring diagram:
BB7, BB55 (2x) 1N240
BB10 1N240
BB10, BB13 3N415
Warning:
The information contained in these instructions for use may be modified without warning. Valentine Fabrique SA cannot
be held liable for any errors contained in this document or for damage or injury resulting from use of this.
DOC. No.: IN-BBXEA LIE 06.03.96 DATA / WORD / IN
type of deep fryer Type
serial number No
voltage, current and rating U, I, P
