Valeo SC600 Marcopolo - 1.3 Control Panel Description; 1.4 Display Description

BUS BODY ELECTRONICS
4
Figure 2 - SC600 display
1.3 Description of the control panel

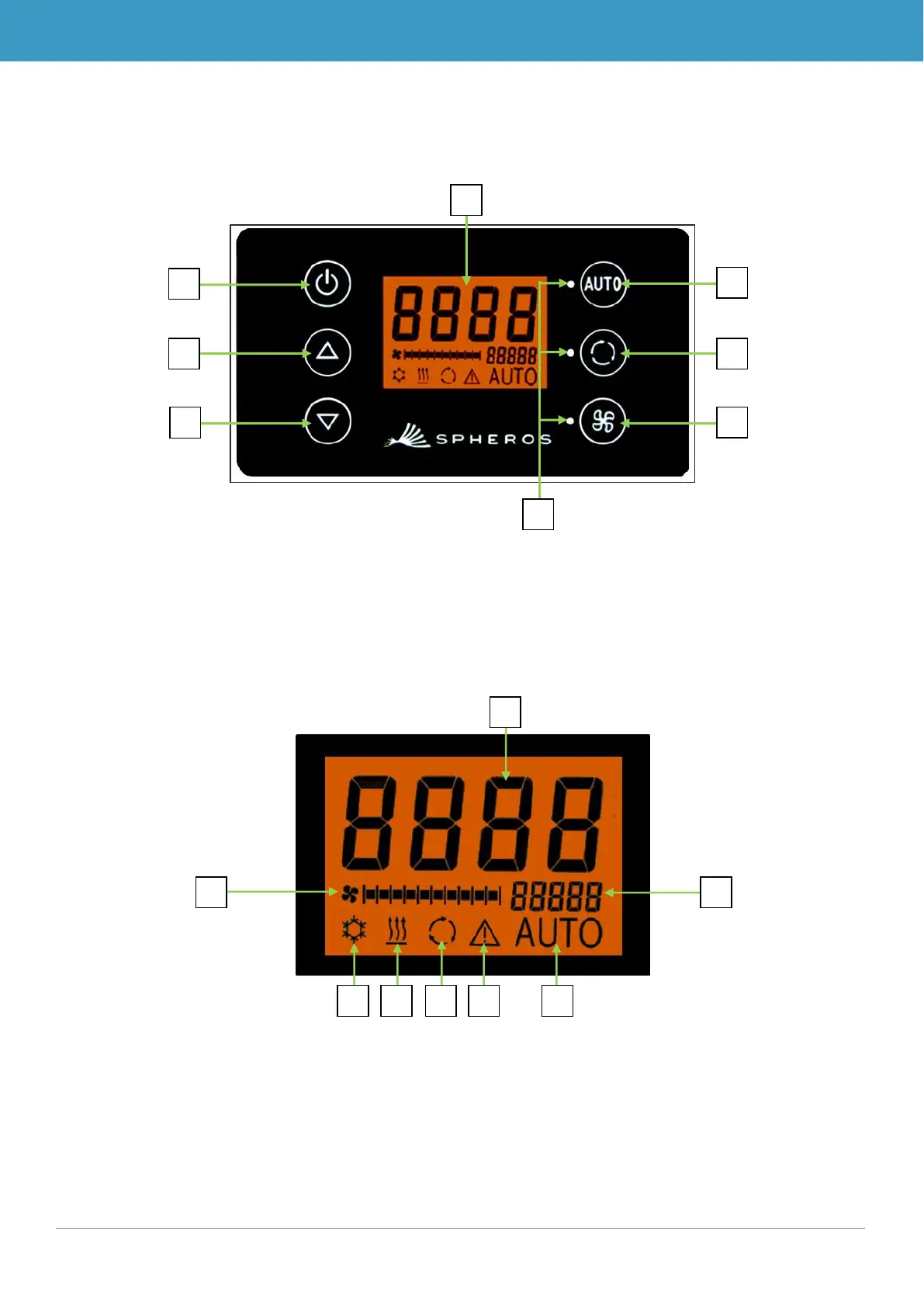

The control panel components are depicted and described in the following image.
1.4 Description of the display
1. Display
2. On/off button
3. UP
4. DOWN
5. Function status light
6. Blower button
7. Fresh air/recirculating air button
8. Auto button
A. Desired value display, room temperature
B. Blower level manual
C. Cooling mode
D. Heating mode
E. Recirculating air on
F. Error display
G. Auto mode active
H. External temp. display
1
2
3
4
6
7
8
5
Figure 1 - SC600 control panel
B
H
C
A
D
F
G
E
