Valeo TM55 User Manual

- 9 -

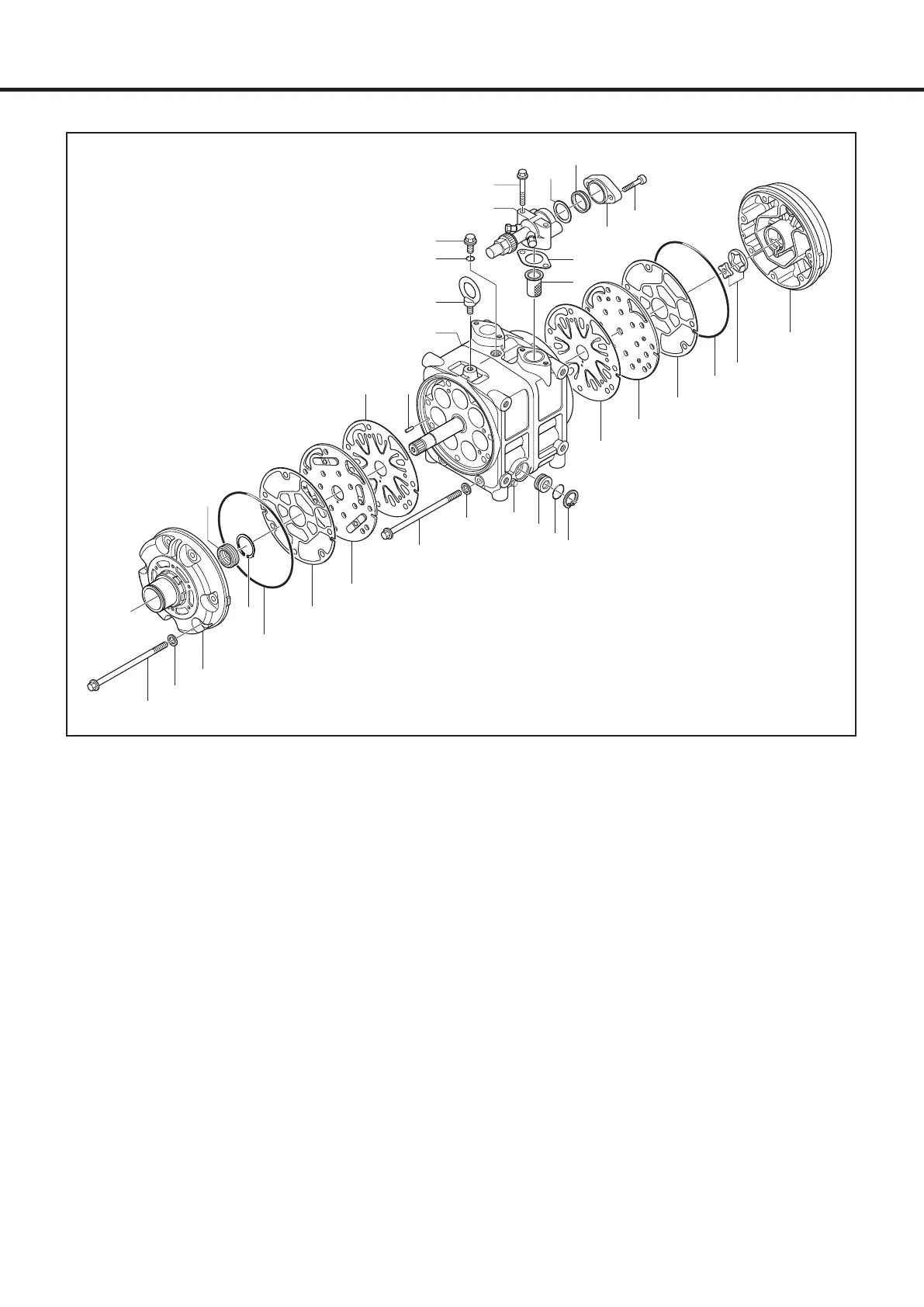

1- Product description - Exploded view
1. Bolt
2. Gasket
3. Front cylinder head
4. Shaft seal assembly
5. Snap ring
6. O-Ring
7. Gasket
8. Valve plate assembly
9. Suction valve
10. Pin
11. Bolt
12. Oil drainer plug
13. Cylinder shaft assembly
14. Eye bolt
15. O-Ring
16. Oil filler plug
17. Strainer
18. Gasket
19. Connector
20. Bolt
21. Gasket
22. Plate
23. Plate
24. Bolt
25. Sight glass
26. O-ring
27. Snap ring
28. Valve plate assembly
29. Gasket
30. Gear pump
31. Rear cylinder head
1
2
2
3
6
5
6
7
8
11
13
27
25
26
28
29
30
31
4
109
9
15
17
21
20
16
14
19
22
18
23
24
12
