- 7 -
1- Product description - Performance

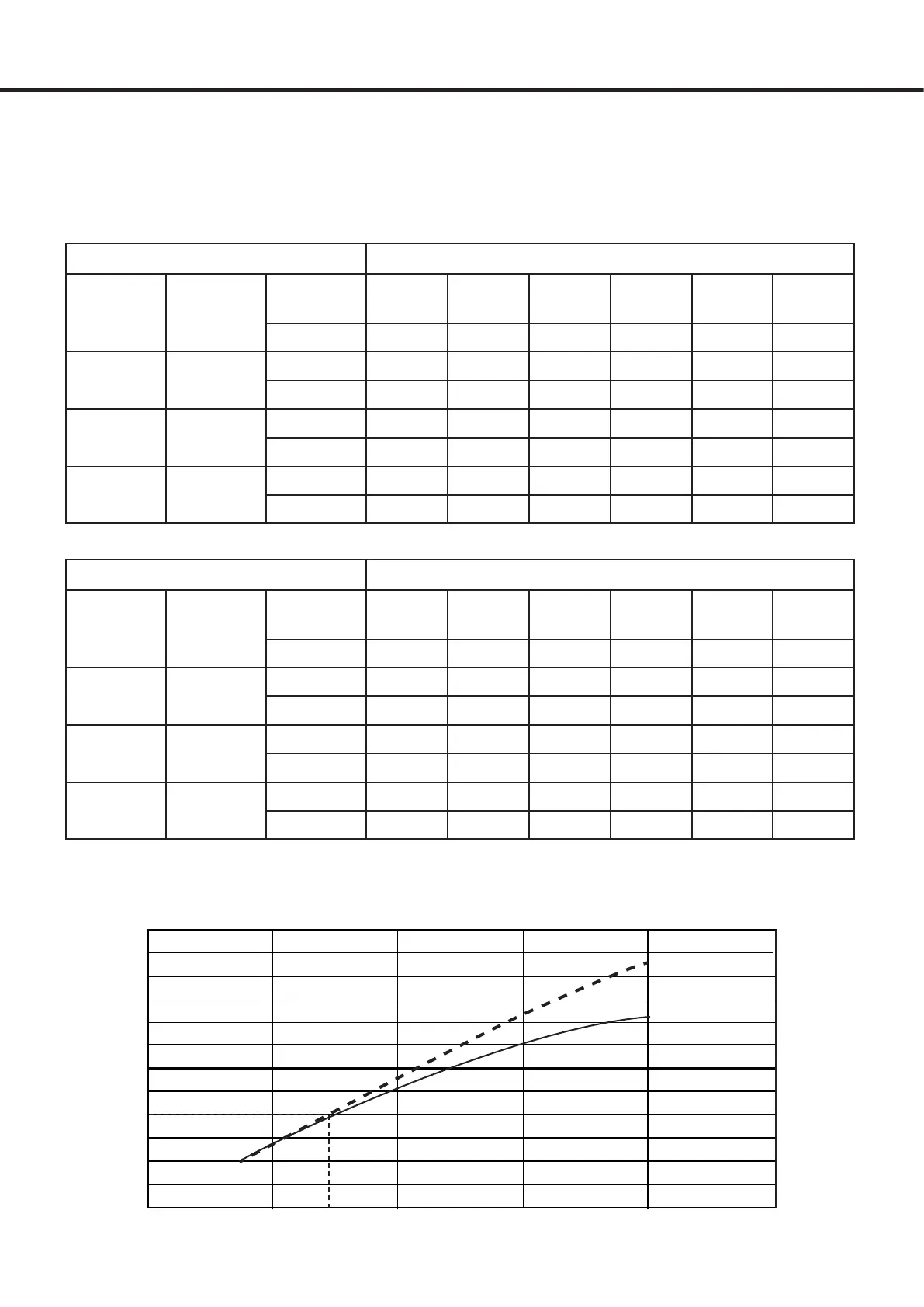

Valeo TM55 & TM65 conversion factors
The performance data below were measured under the following conditions:
• Compressor speed: 1450 rpm
• Suction gas temperature: 20°C
Conditions Cooling Capacity Q and Power Consumption P
Cond.
temp (
o
C )
Pd
(MPaG)
Evap temp
(
o
C )
-10 -5 0 5 10 12.5
Ps (MPaG) 0.10 0.15 0.19 0.24 0.32 0.35
40 0.91
Q (kW) 17.29 22.96 28.21 33.92 42.18 45.71
P (kW) 6.30 7.02 7.53 8.10 8.68 8.90
50 1.21
Q (kW) 15.16 20.21 24.24 29.31 37.58 40.37
P (kW) 6.83 7.76 8.39 9.06 9.90 10.11
60 1.58
Q (kW) 12.66 17.30 20.80 25.28 32.10 34.56
P (kW) 7.35 8.43 9.17 9.95 11.02 11.35
Valeo TM-65 performance data (R134a)
Conditions Cooling Capacity Q and Power Consumption P
Cond.
temp (
o
C )
Pd
(MPaG)
Evap temp
(
o
C )
-10 -5 0 5 10 12.5
Ps (MPaG) 0.10 0.15 0.19 0.24 0.32 0.35
40 0.91
Q (kW) 14.73 19.68 23.88 29.30 37.23 40.31
P (kW) 5.31 5.96 6.39 6.77 7.21 7.36
50 1.21
Q (kW) 12.75 17.52 21.06 25.58 32.97 35.54
P (kW) 5.80 6.59 7.09 7.63 8.32 8.48
60 1.58
Q (kW) 10.53 14.42 17.60 21.39 28.16 30.65
P (kW) 6.28 7.21 7.84 8.52 9.38 9.63
Valeo TM-55 performance data (R134a)
The performance data at different rotation speed can be approximated with the conversion factors
below.
1000
0.0
0.5
1.0
1.5
2.0
2.5
3.0
0
2000 3000 4000
P
Q
Compressor speed (rpm)
Conversion factors
1450
