Valeo TM55 User Manual

- 6 -

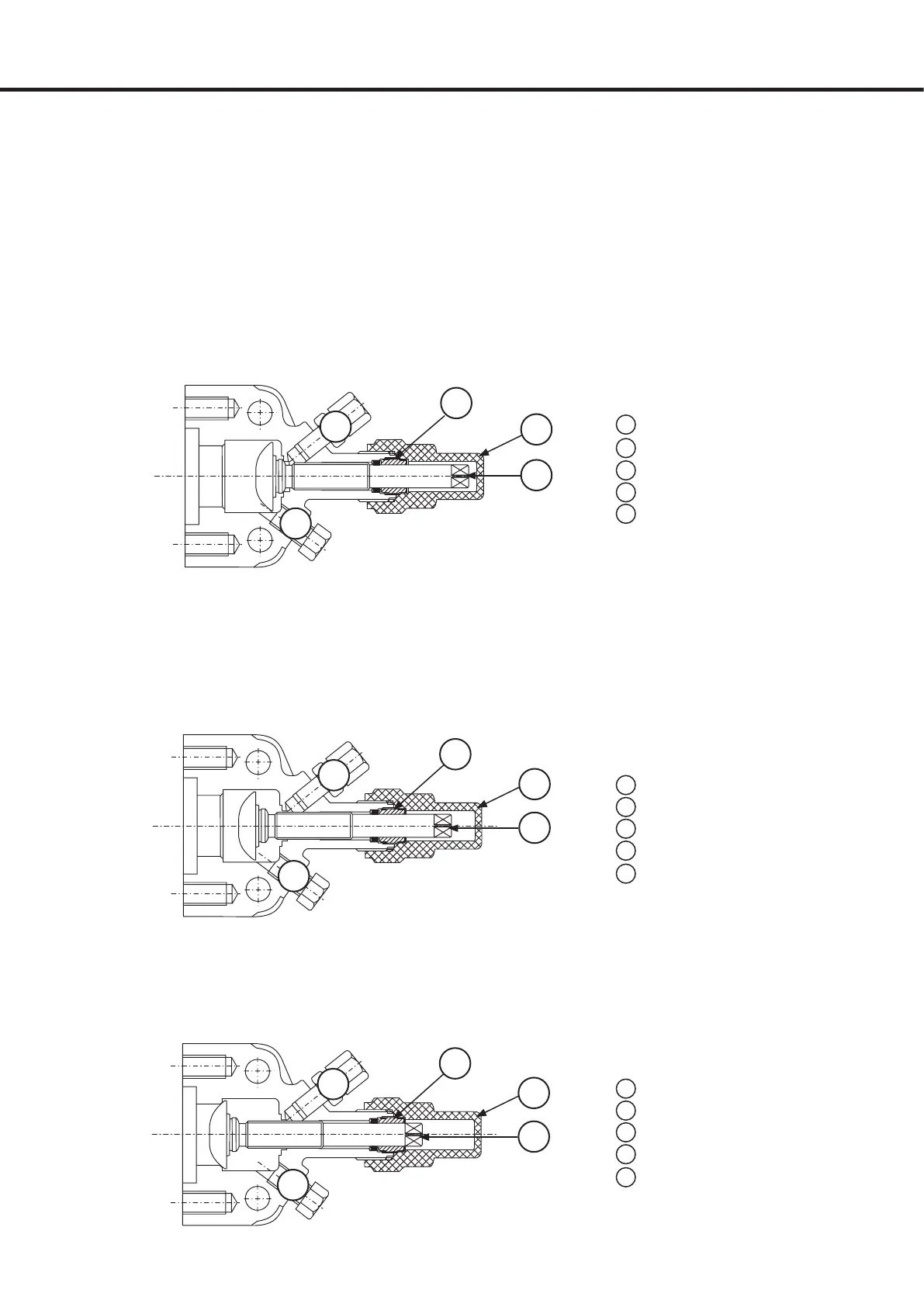

1- Product description - Connectors
Connectors
1. Fully open the shut-off valve when operating the compressor
• Unscrew the cap.
• Loose the valve spindle lock nut by
1
/
4
turn.
• Turn the spindle in the counterclockwise direction until it stops.
The shut-off valve is now fully opened and the service port connector is closed.
• When finished, tighten the valve spindle lock nut carefully and reinstall the cap.
2
4
5
3
2. Open the service port connector when using a gauge manifold
• Turn the spindle in the clockwise direction by 1/2 turn to 1 turn.
The shut-off valve and the service port connector are now opened.
2
3
4
5
3. Fully close the shut-off valve when removing the compressor
• Turn the spindle in the clockwise direction until it stops.
2
3
4
5
1
1
1
Valve spindle lock nut
Cap
Spindle
Service port connector
Safety devices port
1
2
3
4
5
Valve spindle lock nut
Cap
Spindle
Service port connector
Safety devices port
1
2
3
4
5
Valve spindle lock nut
Cap
Spindle
Service port connector
Safety devices port
1
2
3
4
5
