Valeo TM55 - 8 Service Tools

- 37 -

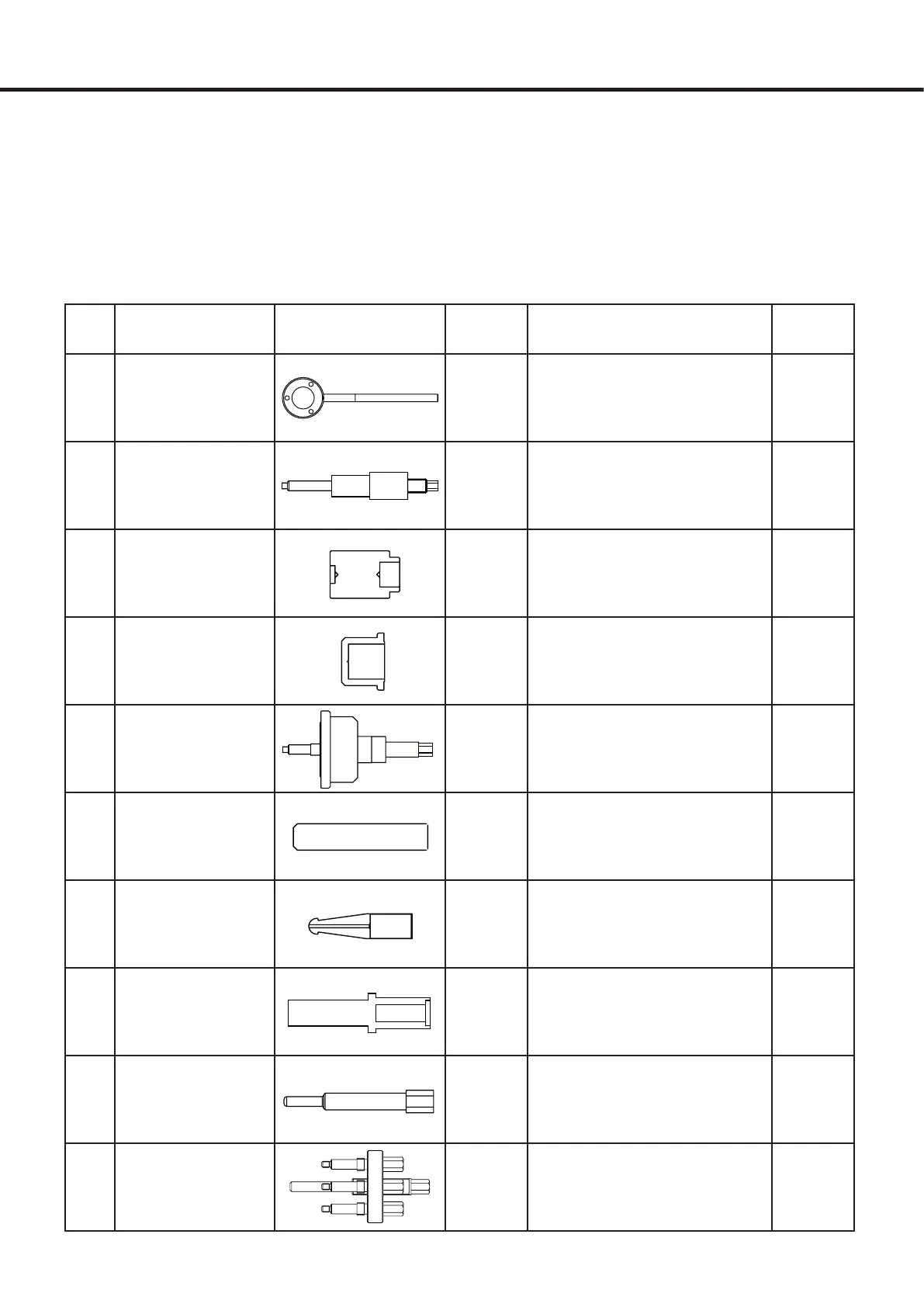

Item Name Picture
Ref.
page
Application
Drawing
page
1 Armature holder
29,32,
34
To fix armature 43
2
Armature installer
assembly
34 To install armature 43-44
3
Center pulley
puller
30 To remove pulley 45
4 Pulley installer 31 To install pulley 45
5
Pulley installer
assembly
33 To install pulley 46-47
6
Cylinder head
remover
35, 38,
39
To remove cylinder head and
cylinder block
48
7 Guide 36, 41 To install shaft seal 48
8
Shaft seal remover
/ installer
35, 36
To remove and insert the
shaft seal
49
9 Armature puller 30 To remove armature 49
10
Armature puller
assembly
29 To remove armature 50-51
8- Service tools
In addition to standard tools, numerous special tools are necessary to service the Valeo TM55 & TM65
compressors. The use of these special tools enables prompt and correct compressor service.
The drawings and the specifications of the service tools listed below are enclosed in the following pages.
Service tools
