1- Product description - Magnetic clutch
Single level or multi-level pulleys

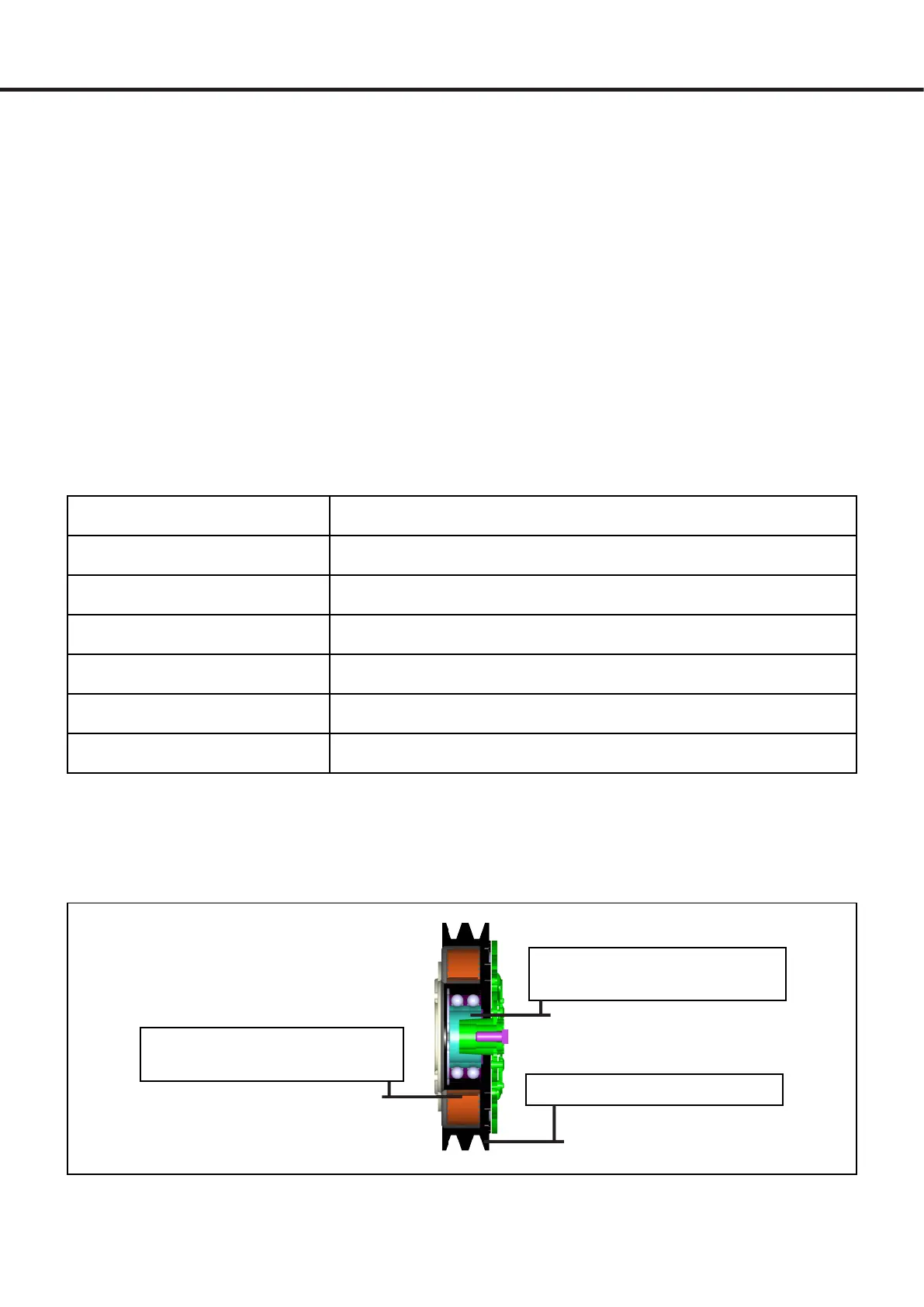

Housing mounted magnetic clutch.
Improved robustness to vibration
Bearing and pulley positionned to
reduce efficiently the moment of tilt
Magnetic clutch
VALEO TM55 & TM65 are available either as a compressor and magnetic clutch assembly or as a compressor
body that can be fitted with compatible magnetic clutches. The magnetic clutch design Valeo has been
promoting for more than 20 years is now gradually adopted by major market actors.
Our compressors and magnetic clutches have successfully passed the thousand hours of long validation
tests in Valeo Compressors research center laboratory. Operational excellence was demonstrated during hot
season testing on field under challenging climates in the most stressful conditions.
Being able to rely on our robust magnetic clutch provides the best way to reduce fuel consumption without
using additional unloading devices that decrease significantly the efficiency and durability of the compressor.
The range of Valeo magnetic clutches ensures an unmatched reliability and the longest durability that
perfectly matches the Valeo TM55 & TM65 compressor qualities.
Valeo TM55 & TM65 magnetic clutch
Compact and robust design
TECHNOLOGY Electromagnetic single-plate dry clutch
RATED VOLTAGE 24V DC or 12V DC
CURRENT CONSUMPTION 50 W maximum
STATIC TORQUE 250 N·m {25.5 kgf·m, 184 lbf·ft}
DIRECTION OF ROTATION Clockwise viewed from clutch
WEIGHT Approx 10~12 kg {22-27 lbs}
V-BELT TYPE V-groove (A or B) or V-ribbed (PK)
Specifications*
*The specifications may vary with the compressor.
Please also note that the maintenance procedures introduced in this service manual apply only to magnetic
clutches provided by Valeo.
