6- Service procedures - Magnetic clutch

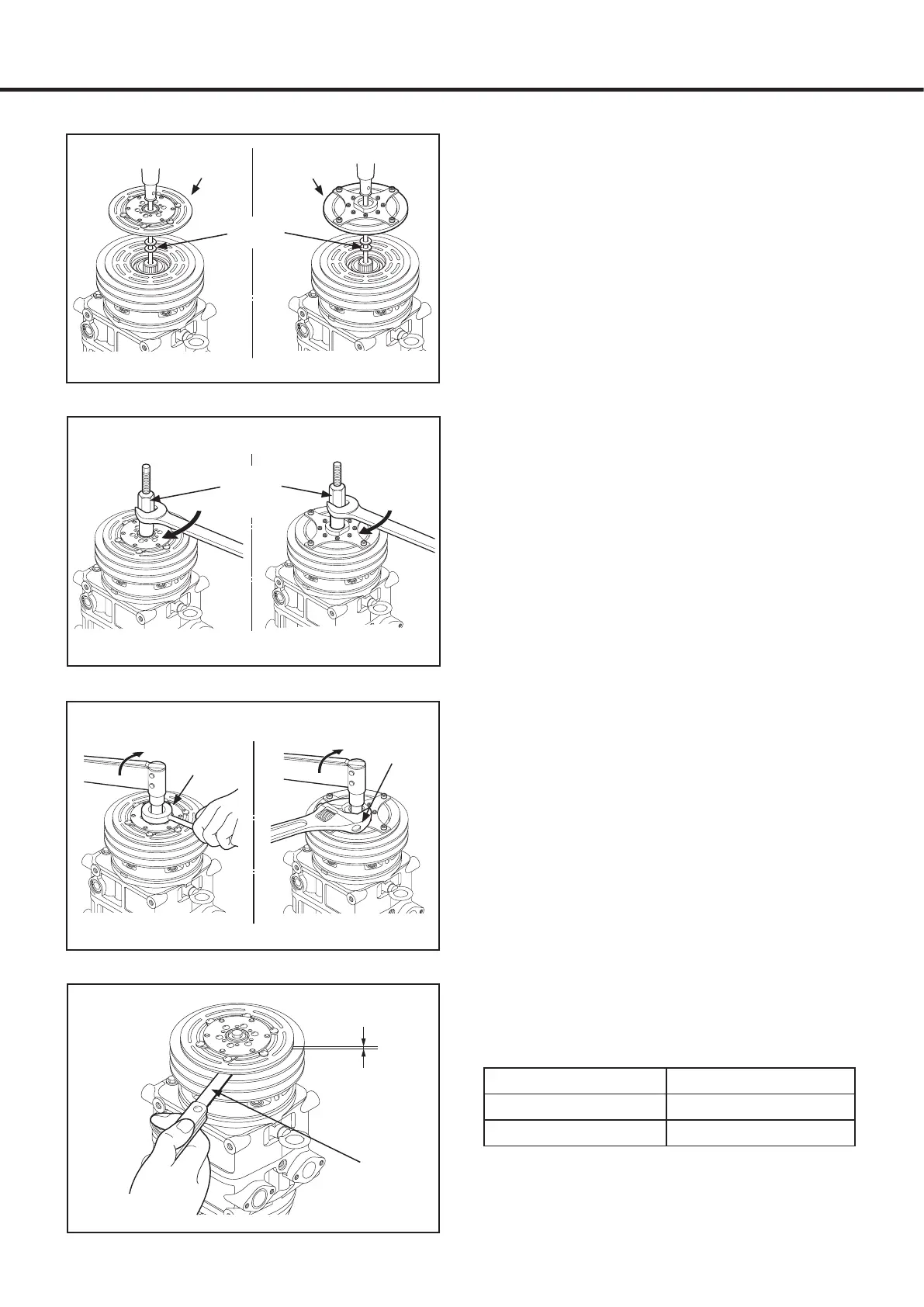

6. Install the armature assembly on the driveshaft
together with the original shim(s).
7. Install the armature assembly using an
armature installer assembly.
8. Install the armature bolt and tighten to the
specified torque using an armature holder
or a spanner to prevent armature assembly
rotation.
Specified torque: 25 - 30 N·m
{2.5 - 3.1 kgf·m, 18 - 22 lbf·ft}
9. Check that the clutch clearance is as specified.
If necessary adjust the clearance using shim(s).
Adjusting shims are available in the following
thicknesses:
Shim Part No. Thickness
Z0010245 0.2 mm {0.008 in}
Z0010246 0.3 mm {0.012 in}
Specified clearance: 0.3 - 0.7 mm
{0.012 - 0.028 in}
10. Run in the clutch as described on page 21.
Gap adjustment
0.3 - 0.7 mm
Thickness
gauge
Spanner
Armature
holder
2-way stopper
armature
3-hole
armature
Adjusting
shims
2-way stopper armature3-hole armature
2-way stopper armature3-hole armature
Armature
installer
assembly
