VALMAR Operation
Page 15
27-tooth gears on the side of the gearbox. The
available ratios are Ultra Low, Low, Medium and
High. Select the desired input ratio as follows:
1. Raise the gearbox shield.
2. Select the pair of gears corresponding to
the desired input ratio and install them in
the correct orientation shown in the
following diagrams, using linch pins on
the correct shafts.
3. If the appropriate gears on not on the
shafts, they can be found on the storage
shaft as indicated by the diagrams.
4. Store the unused gears on the storage
shaft.

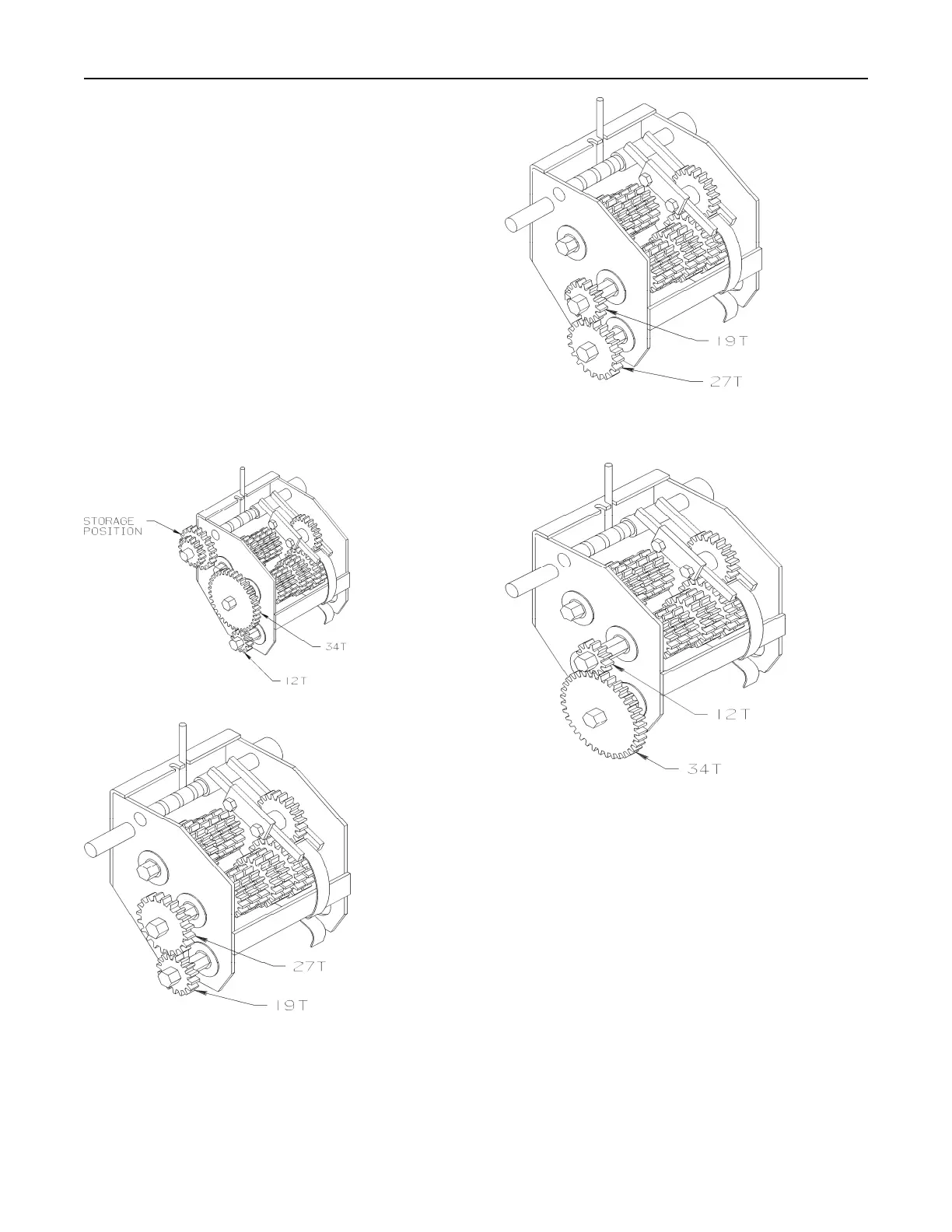

Figure 4 - 6: Ultra Low
Figure 4 -7: Low
Figure 4 - 8: Medium
Figure 4 - 9: High
Range Selection (Figure 4-10)
1. Release the clip on the speed shifter
and lift it up.
2. Move the range lever to the “A” or “B”
position.
3. Rotate the gears manually to ensure
complete engagement. Lock the speed
shifter into place by pushing down on
the clip.
