5

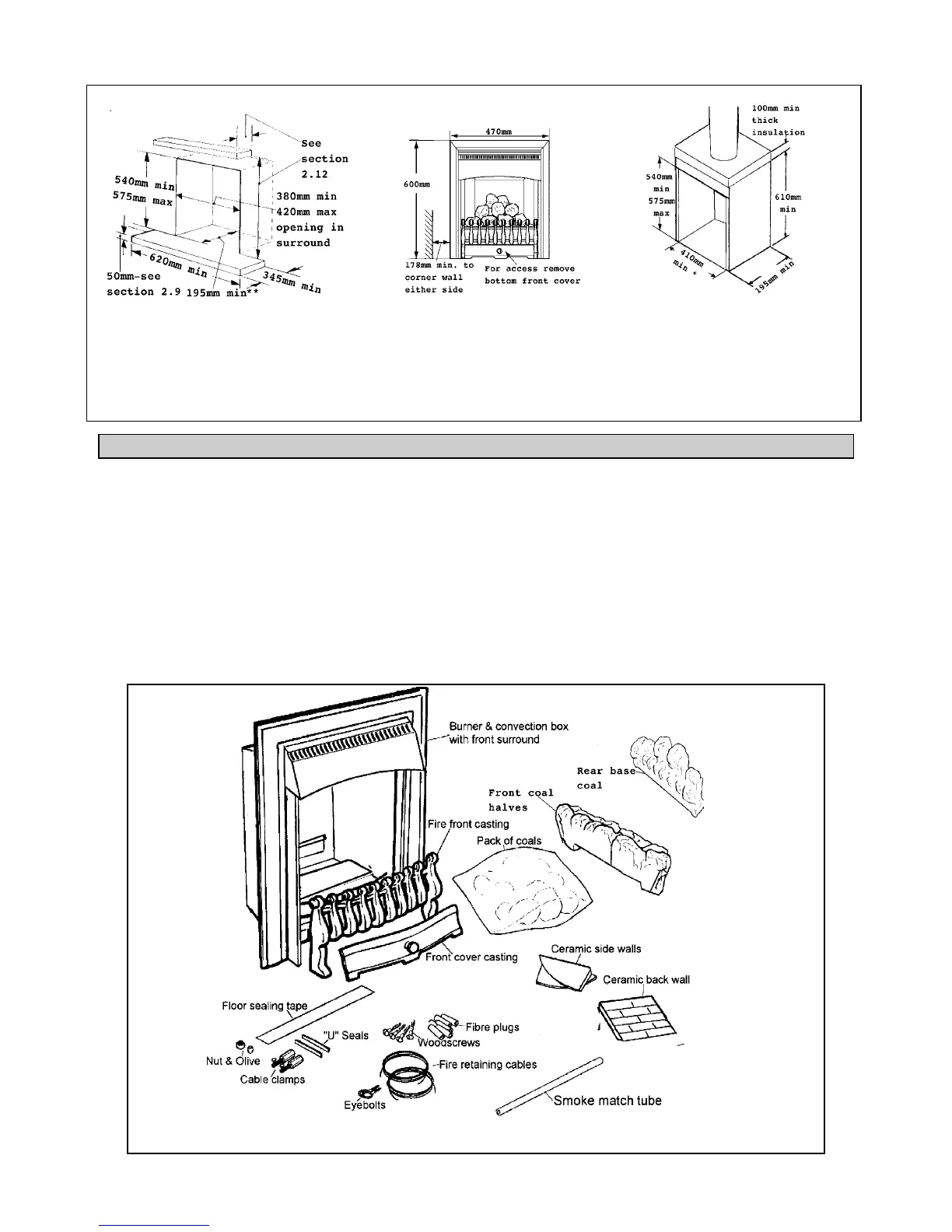

Fig 2 Pack contents
3. UNPACKING
The pack contains:
1 Burner & Convection box Unit with front surround
1 Nut & olive for 8mm inlet pipe
1 Ceramic back wall
1 Pair of ceramic side walls
1 Front base coal- left & right halves
1Rear base coal
1 Pack of 7 loose coals
2 Small “U” seals for convection box side flanges
1 Strip of floor sealing tape
6Fibre plugs
4 Woodscrews
2 Fire retaining cables
2 Cable clamps
4 Eyebolts
1 Installation template
1 Smoke match tube
1 Fire front casting
1 Bottom front cover casting
1 Literature pack
Carefully remove the contents. Take special care in handling
the ceramic walls and the coals.
Check that all the listed parts are present and in good
condition.
Fi
. 1 Installation Data
(a) Fireplace Dimensions
** Does not apply to pre-cast flues –
See section 2.2.3.
(b) Twin walled metal flue box
(Internal dimensions)
* If internal width is greater than 440mm,
the opening width must be reduced to not
more than 440mm to ensure adequate
sealing to fire.
