Valor G3 Series Installation Instructions

3
1
2
3
4
5
6

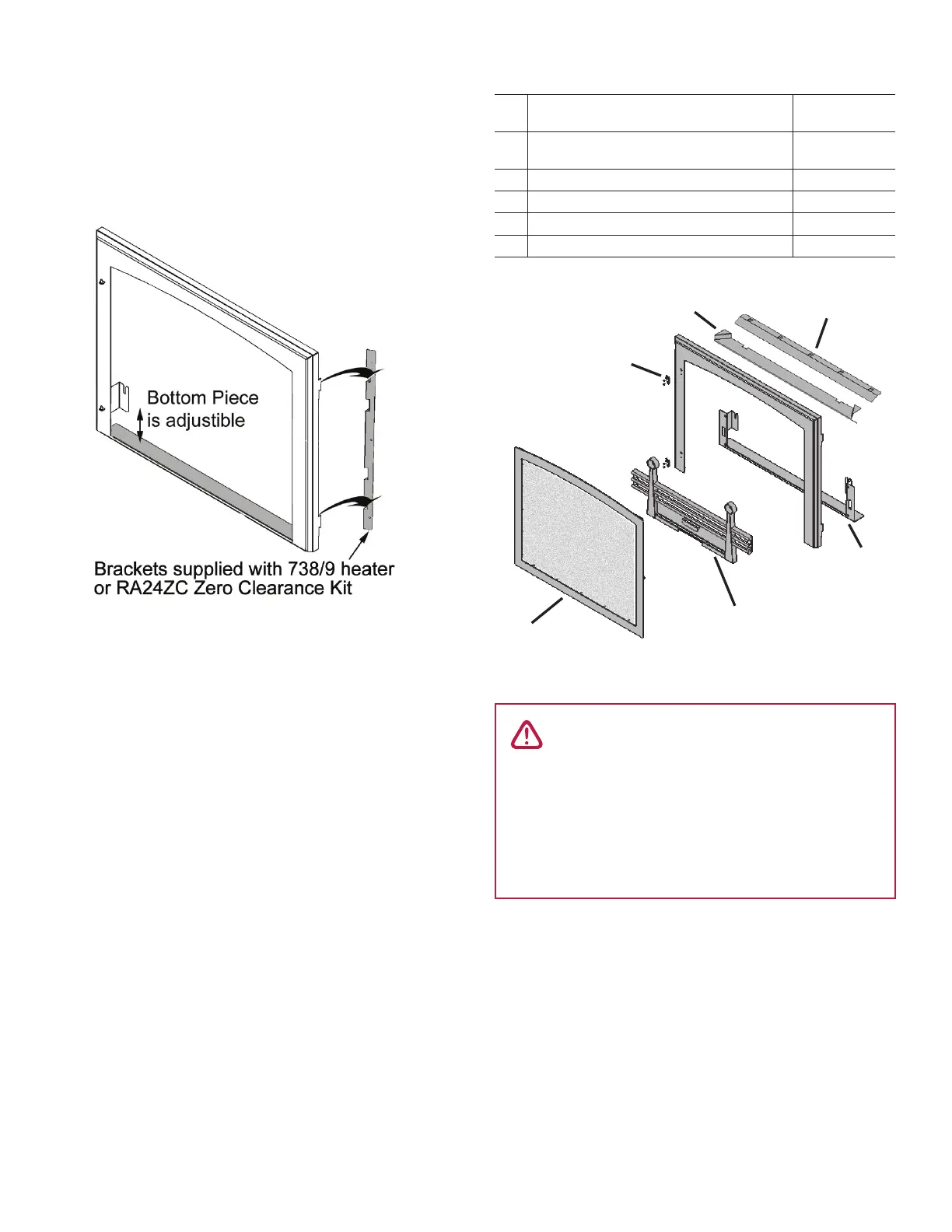

4. For 738/739/RF24B(ZC). Clip the FenderFire frame
onto the brackets of the heater or ZC box within the
outer surround. If the clips securing the FenderFire
frame do not fully engage in the bracket, it may be
due to the bottom piece of the frame getting hung
up on a high spot on the hearth. If this is the case,
loosen the nuts of the bottom piece of the frame
and raise it to the appropriate height.
5. Loosen the bolts on the back of the cast iron fender
and drop the fender into place within the slotted
holes of its support at the base of the door frame.
Hang the cast iron ashpan on the hooks within the
fender.
6. Drop the door on the hinge pins.
Cleaning
The surround and the screened doors can be cleaned
with a soft brush.
To clean the fireplace glass window, refer to the
owner’s manual supplied with the appliance.
1
Extension Baffl e (not required with
RA24ZC applications)
4000622BY
2
Clip-on Window Trim (not required with
RA24ZC applications)
4002394BY
3 Lower Support 4000631AZ
4 Hinge Bracket 4000593
5 Screen Door Assembly 4000563VI
6 Cast Fret 4000625VI
Repair Parts List
WARNING
DO NOT TOUCH THE DOORS OR FIREPLACE
WHILE THEY ARE HOT! Let the fireplace
cool first before cleaning it.
FOR SAFETY PURPOSE, ensure the screen
doors are closed after maintenance before
operating the fireplace.
