5. The coals should be positioned so
that the arrows always point towards
the back of the firebox. When located
into position the stem of each arrow
should be at 90° to the rear of the
fireplace opening (See figure 6).
6. Hold coal ‘A’ upright with the arrow
pointing to the top. Locate coal ‘A’ as
shown in figure 6.
7. Locate coals ‘B’ to ‘E’ so that they
are firmly seated in the valleys in the
coal base and front coal.
8. Hold coal ‘B’ upright with the
arrow pointing
to the top.
Locate coal ‘B’
as shown in
figure 7.
9. Hold coal ‘C’
upright with the
arrow pointing
to the top.
Locate coal ‘C’
as shown in figure
8.
Page 11
OWNER GUIDE

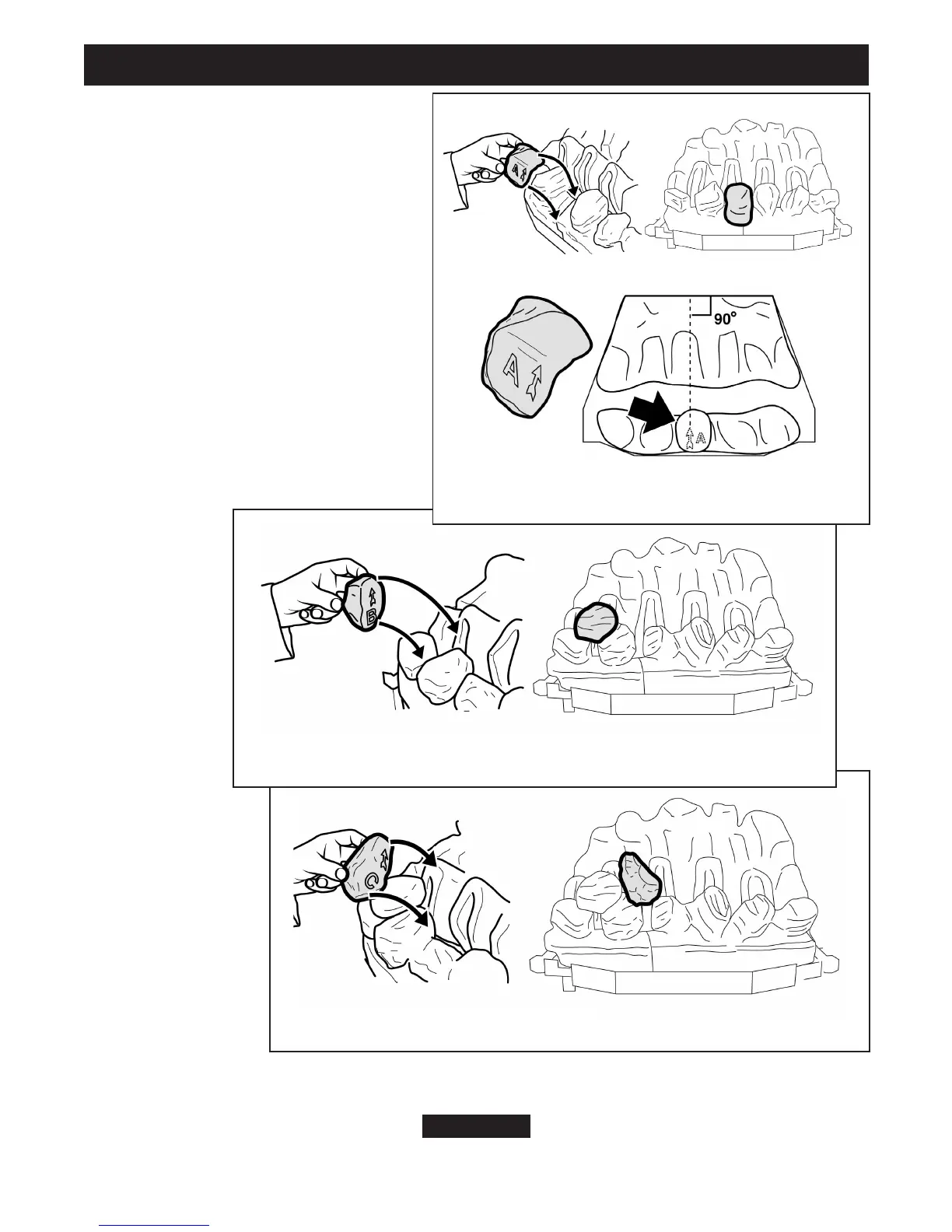

Figure 7. Second Row “Coal B”
Figure 6. Front Row “Coal A”
Figure 8. Second Row “Coal C”
